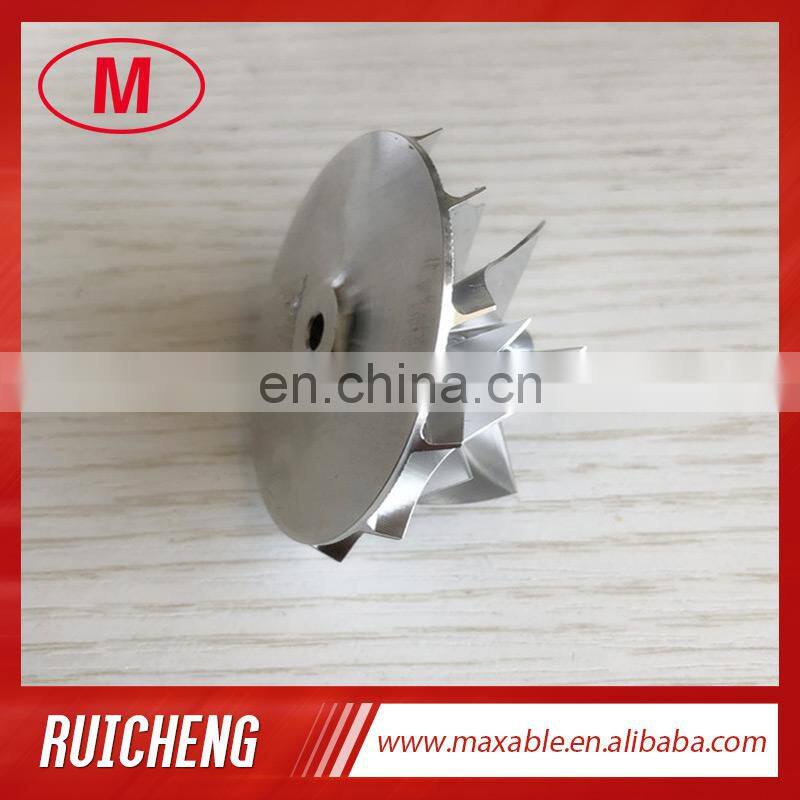

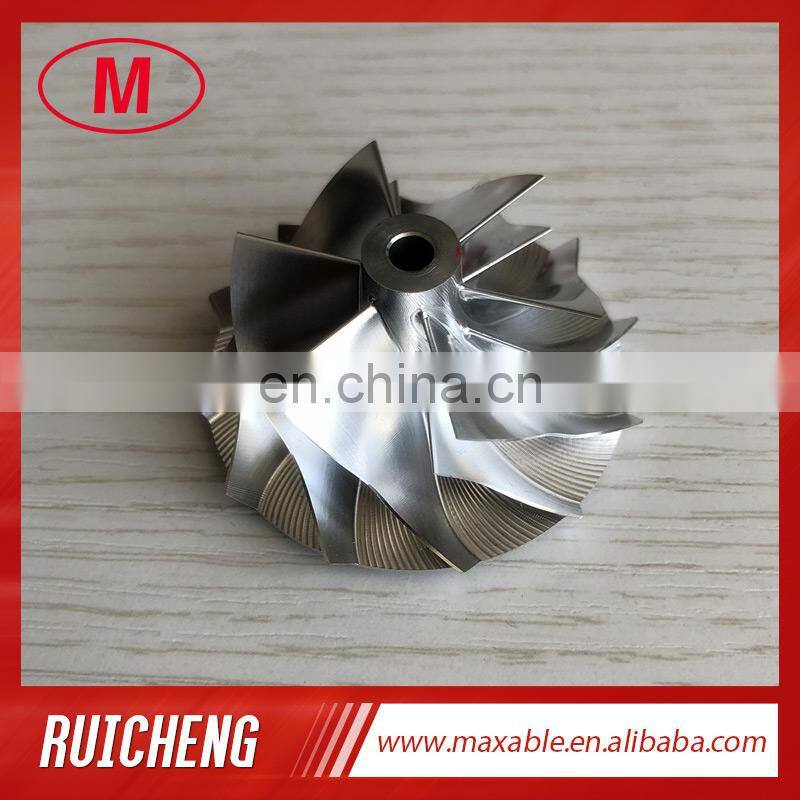

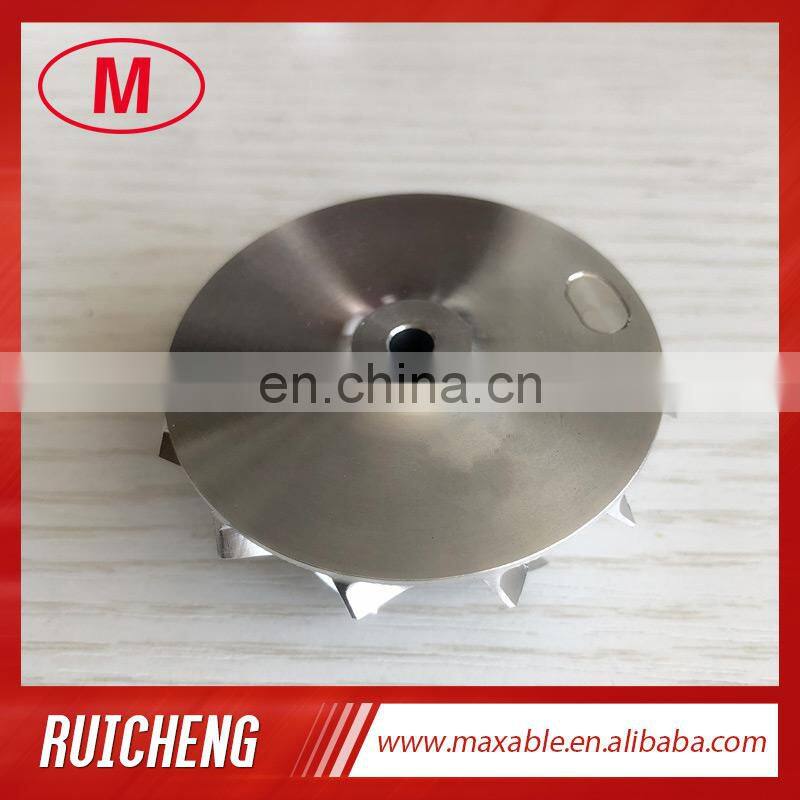

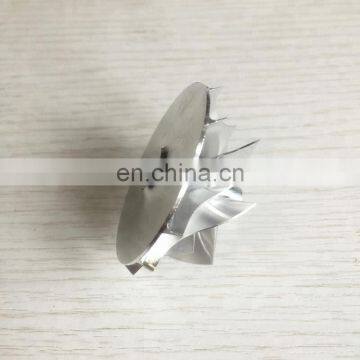

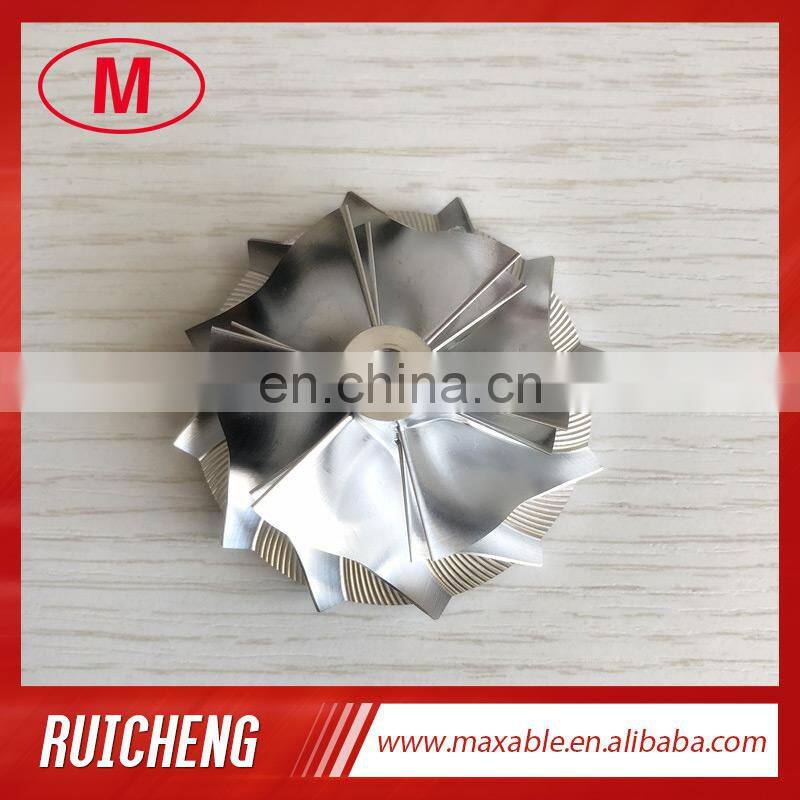

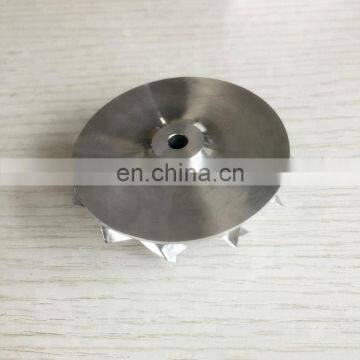

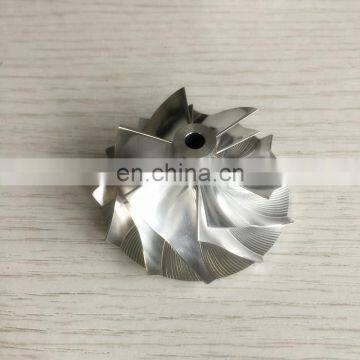

K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046

K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046 thumbnail-1
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046 thumbnail-2
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046 thumbnail-3
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046 thumbnail-4
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046 photo-1
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046 photo-2
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046 photo-3
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 Blades Turbo Billet/milling/aluminum 2618 Compressor Wheel for 5303-988-0046 photo-4
US$ 40 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NO
Model Number:
k04
Warranty:
12 Months
Contact Supplier Request Quote Chat Now
Ruicheng Auto Parts (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NO
Model Number k04
Warranty 12 Months

1.Model:K04  foward rotation
2.K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0046/0081/0083/0084/0096  Fiat/Citroen/Peugeot

3.SIZE:

Nose Diameter:10.06mm

inducer:39.86mm

Exducer:50.96mm

Tapered tip exducer:54.87mm

Tip height:4.39mm

Superback:1.80mm

Overall height:25.66mm

 bore size :4.61mm

Trailing angle:60

Cutback:0.0

Blades height:20.38mm

6+6 blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

4.Good quality and competitive price

5. aluminum 2618/milling/ billet high performance compressor wheel

6.Application:

5303-988-0046

5303-988-0081

5303-988-0083

5303-988-0084

5303-988-0096



7.Please send email to me or talk to me on online ,if you want to know more details.

All the compressro wheel have been balanced.

K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0046K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0046K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0046K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0046
