Home > Products > turbocharger repair kits > TD05H 20G Upgrade Reverse 53.11/70.98mm 11+0 Blades Turbocharger Aluminum 2618/milling/ Billet Compressor Wheel

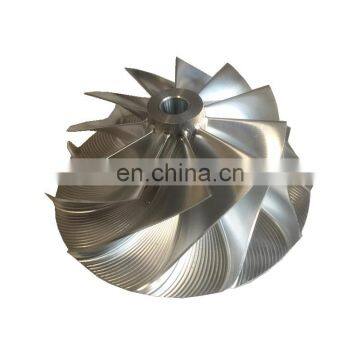

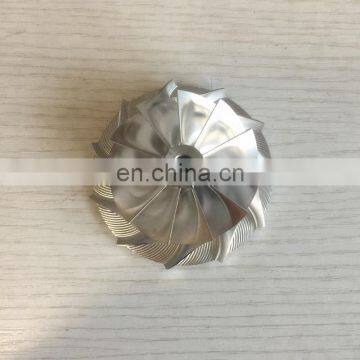

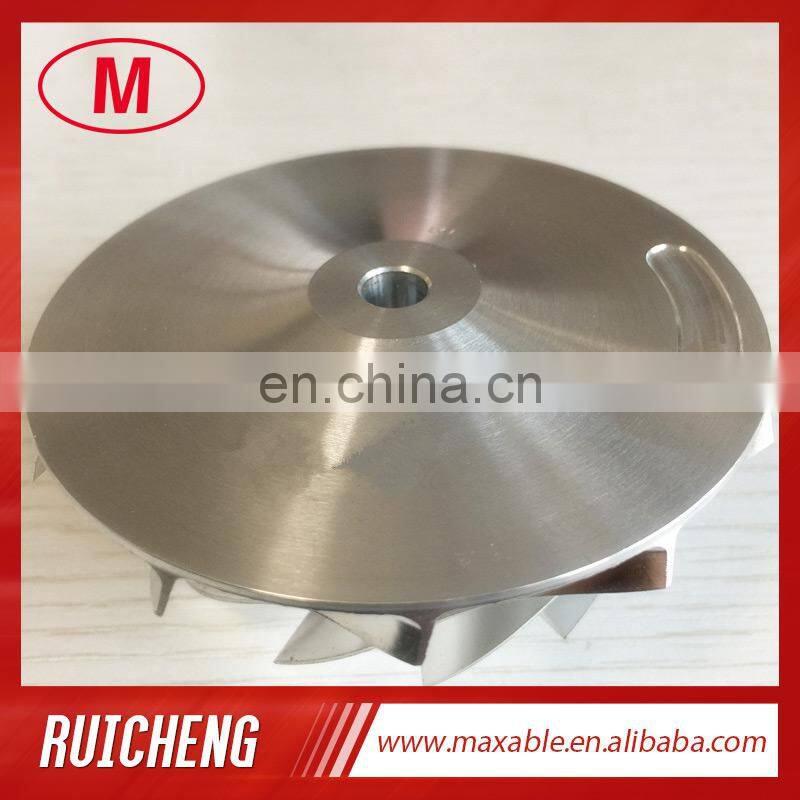

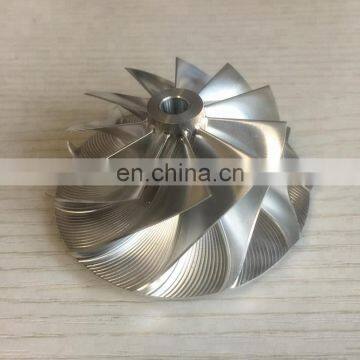

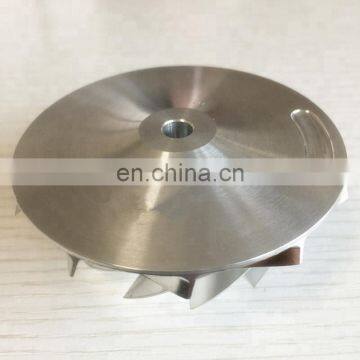

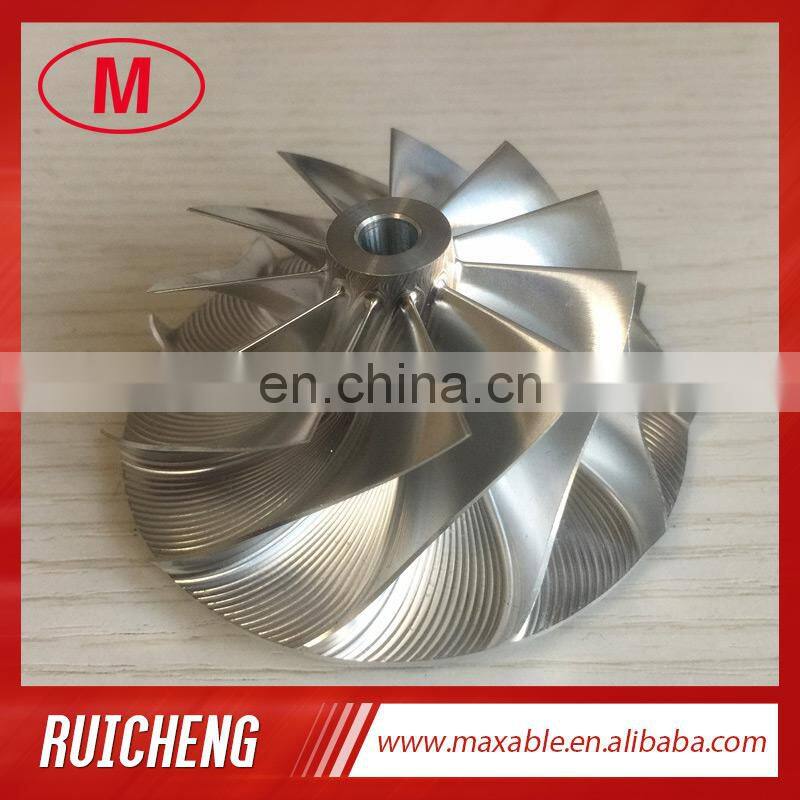

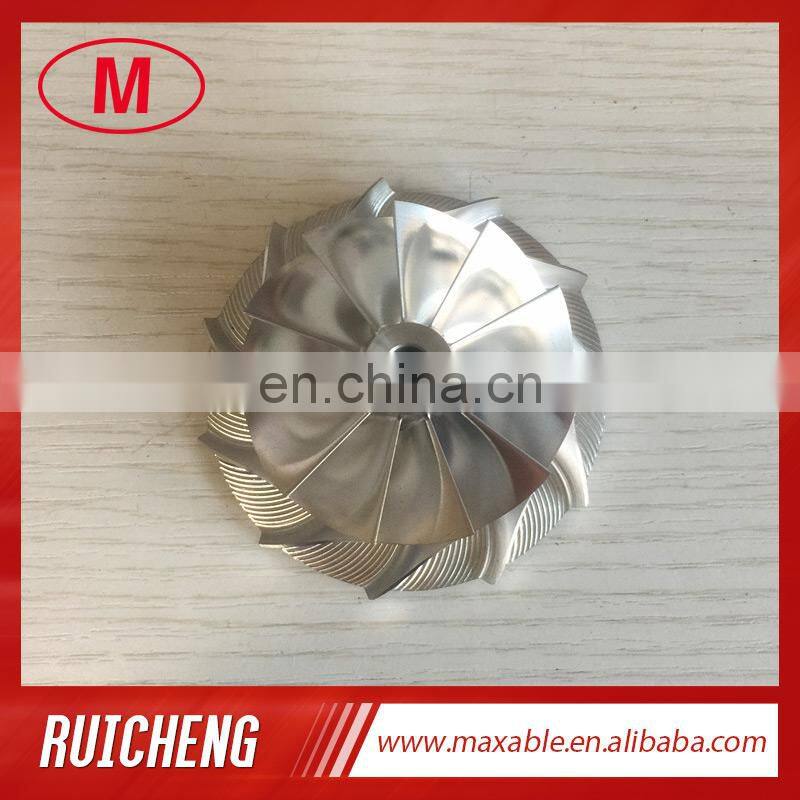

TD05H 20G Upgrade Reverse 53.11/70.98mm 11+0 Blades Turbocharger Aluminum 2618/milling/ Billet Compressor Wheel
US$ 68 - 68
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
TD05H-20G 52.56/73.04mm 11+0 Blades High Performance Turbocharger Aluminum 2618/milling/ Billet Compressor Wheel for MITSUBISHI
-
TD04HL 13T 40.61/56.02mm 49377-04200 6+6 Blades Turbo Milling/aluminum 2618/ Billet Compressor Wheel Tapered Tip Angle:0 Degree
-
GT25 11+0 Blades 46.52/60.13mm 445436-0001 High Performance Milling/aluminum 2618/billet Compressor Wheel for ISUZU 465949-0001
-
GT2554R 42.12/54.39mm 11+0 Blades High Performance Turbocharger Aluminum 2618/milling/billet Compressor Wheel for Racing
-
HX40 62.45/85.98mm 7+7 Blades Turbocharger Milling/aluminum 2618/billet Compressor Wheel
-
GT28 47.10/63.40mm 11+0 Blades 55812/3712-0001bore:5.99mm Turbo Billet/milling Compressor Wheel for 816365-0001/446179-0093
Product Details
| Brand Name | NO | Place of Origin | Shanghai, China | |
| Size | 53.11/70.98mm | |||
| Car Make | MITSUBISHI | Warranty | 12 Months |
Product Description
1. MODEL:TD05H-20G reverse
2.TD05H 20G upgrade reverse 53.11/70.98mm 11+0 blades turbocharger aluminum 2618
3.Size:
Nose diameter:13.54mm
Inducer:53.11mm
Exducer:70.98mm
Tapered tip exducer :73.92mm
Tip height:5.52mm
Superback:2.90mm
Bore:6.50mm
Overall height:31.50mm
Trailing angle:75-90
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Blades height:25.16mm
Tapered tip angle:18 degree
11+0 blades
Reverse rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
We can produce as your requirement.
All the compressor wheel have been balanced.
