Home > Products > Common Rail Tester System. > Common Rail Electronic Tester CR2000
Common Rail Electronic Tester CR2000
- Qingdao Port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Model Number | CR2000 | |
| Power | Electronic | Usage | Auto Testing Machine |
Product Description
CR2000 Common Rail tester simulator
Product Functions:
The function of the tester for CR high pressure pumps is to provide the desired signal to drive the solenoid in the pump being tested. CR2000 common rail Tester can used for testing following pumps:BOSCH CP1, BOSCH CP2,BOSCH CP3,DELPHI, SIEMENS, DENSO HP2 AND HP3.
CR2000 it include four parts:

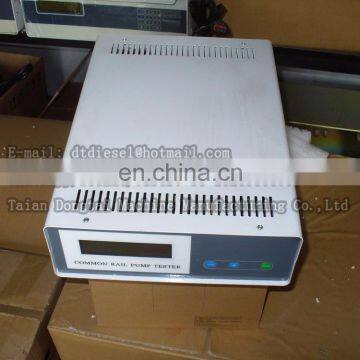

1).PUMP-CR2000 :CR pump tester simulator(It is used to test these pump:BOSHCH CP1, BOSCH CP2,
BOSCH CP3, DELPHI,SIEMENS,DENSO HP2 AND HP3)
2).EM-CR2000 :CR electromagnetic injector tester simulator(It can be used to test
electromagnetic injector,6 pcs injector test at the same time. For BOSCH,DENSO,DELPHI Injector)
3).PE-CR2000 :CR piezoelectric injector tester simulator(It can be used to test piezo injector,
6 pcs injector test at the same time. For SIEMENS Injector)

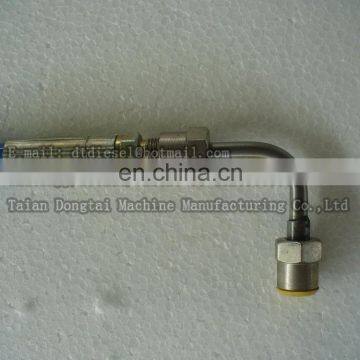

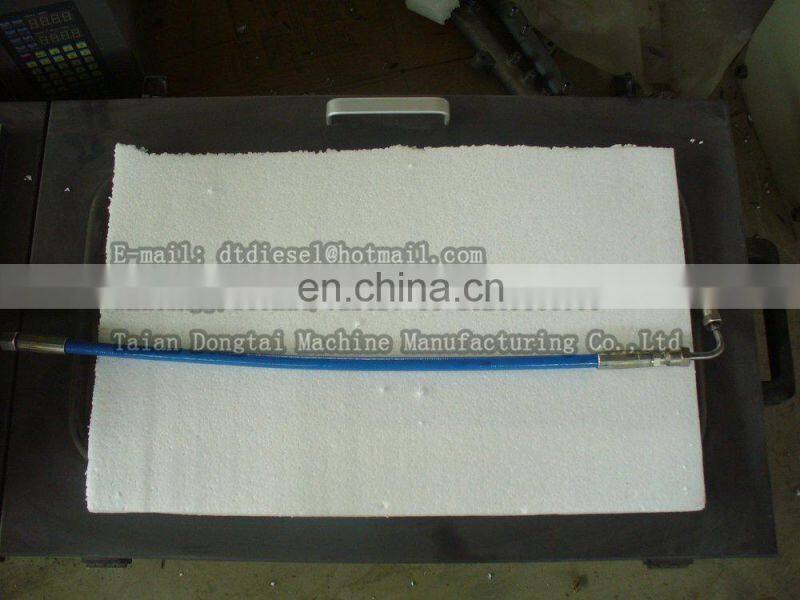

4).CR2000 accessory (rail, pressure sensor, oil pipe, coupling and so on).
Main Feature
* Ali the parts are put in the protective box
* Modulated driving signal to ensure the safety of the CR pump
* Adjustable duty cycle for the driving signal
* Short circuit protection for the output circuity of the solenoid driving signal
* Measure and LCD display the rail pressure
* To test if the CR injector is still function,to connect a CR injector to a high pressure fuel
line and to the CR tester by harness
*The testeris set to continuous injection mode.
* The CR injector is in normal condition,if it is capable to inject fuel under the driving signals by the tester
* To test injector spray atomization,to connect a CR injector to a high pressure fuel
source by a high pressure fuel line and to the CR tester by harness.The tester is set to
single injection mode to allow observing the nozzle spray pattern to judge if the nozzle
is normal or orifice plugged.
* Checking the injectors returm oil and injection oil.
