NTS709 Common Rail Injector Test Bench DTS709(NTS300,NTS709)

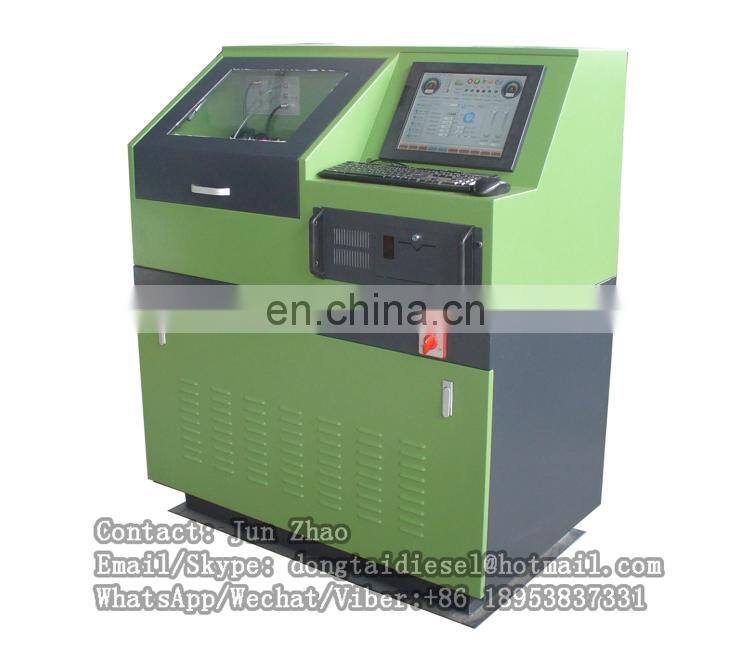

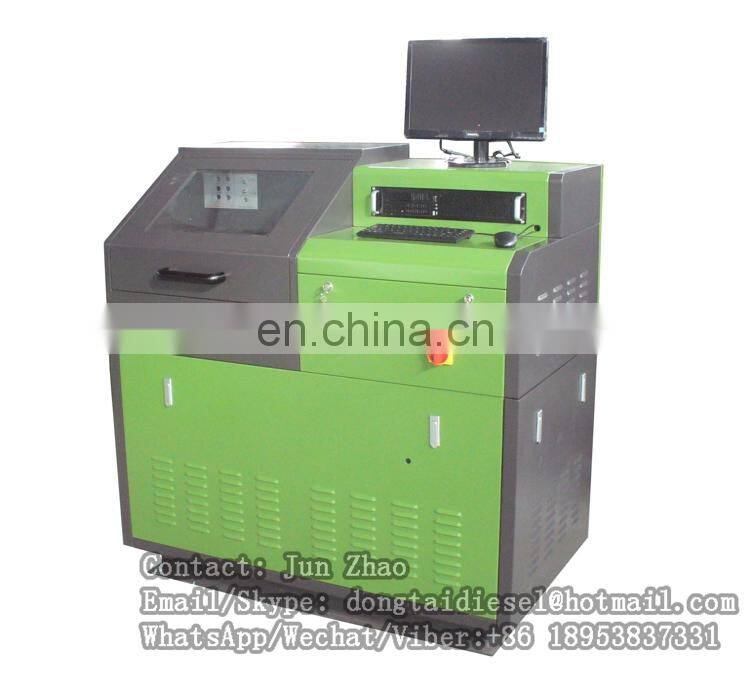

NTS 709  COMMON RAIL TEST BENCH

NTS 709  COMMON RAIL TEST BENCH is mainly test for common rail injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured value

DTS709 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing. DTS709 with inverter working more well.

 Ø  Function

1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.

2. Test 1 piece of injector.

3. Test the pre-injection of common rail injector.

4. Test the max. oil quantity of common rail injector.

5. Test the cranking oil quantity of common rail injector.

6. Test the back flow oil quantity of common rail  injector.

7.Test the average oil quantity of common rail injector.

8. Test the seal performance of common rail injector.

9. Data can be searched and saved.

 Ø  Technical parameter

1. Pulse width: 0.1~20ms

2. Continuous injection times: 0~1000

3. Fuel temperature: 40±2℃

4. Rail high pressure: 0~1600 bar

5. Test oil filtered precision: 5μ

6. Input power: 380V/50hz/3phase or 220V/60hz/3phase

7. Rotation speed: 0~3000RPM

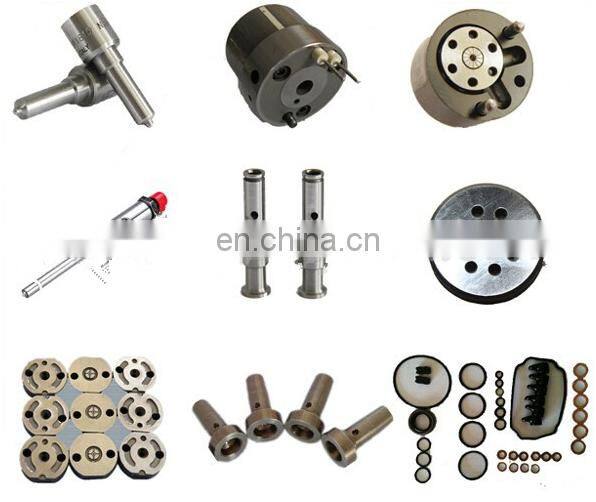

we also supply the injector ,nozzle,control valve,delivery valve, pencil nozzle, Hydraulic head of VE distributor pump, repair kit etc.

>>> Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories)

2,  Injection pump test bench

3,auto tools

4  Auto parts

5, special vehicles

6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .
