10m soil drilling rig / hand held soil drill machine on sale
- 100 Set / Sets per Month
- Qingdao
- T/T L/C
- 10 days
You May Like
-
HuaxiaMaster hand held soil drill machine / portable soil drilling rig
-
Environmental drilling rig / electric soil drill machine made in China
-
Shallow sampling drilling rig / engineering geological drill rig
-
Supplies water well rig with mud pump or air compressor /air operated crawler drilling rigs
-
High efficient water well rig with mud pump or air compressor / crawler drilling machine for export
-
Type 400 geological drilling machine with dual use of water and gas /Water and gas drill on sale
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | QTZ-2 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | No overseas service provided | |
| Warranty | 6 Months | Weight | 25KG | |
| Dimension(L*W*H) | no | Power Type | Gasoline | |
| Voltage | no | Usage | Other, soil | |
| Condition | New | Power(W) | 3.3HP |
Product Description

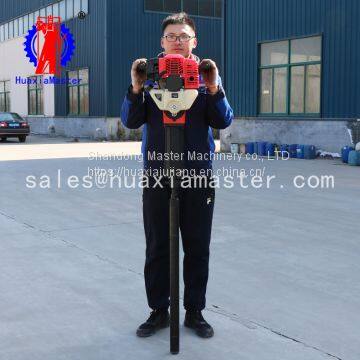

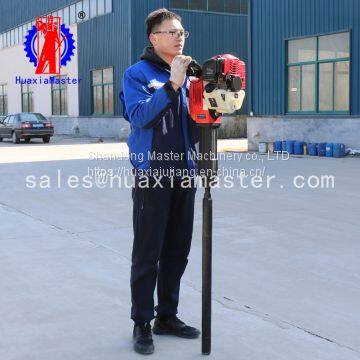

QTZ-2 Gasoline engine portable soil sampling drilling rig
1. Brief introduction of QTZ-2 Gasoline engine portable soil sampling drilling rig
QTZ-2 Gasoline engine portable soil sampling drilling rig adopts the more power, and the impact force is stronger and the drilling depth is deeper, which can drill up to 10-15 meters.
2. Applications of QTZ-2 Gasoline engine portable soil sampling drilling rig
· Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
· Groundwater survey; coastal geological survey; wetland environment investigation.
· Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
2. Technical parameters of QTZ-2 Gasoline engine portable soil sampling drilling rig
QTZ-2 Gasoline engine portable soil sampling drilling rig | ||
Power | power | 3.3HP |
lighter way | backflush pull rope | |
oil consumption | 0.55 l/h | |
Impact times | 1650r/min | |
Impact energy | 35J-65J | |
Core depth | 10m-15m | |
Host weight | 25kg | |

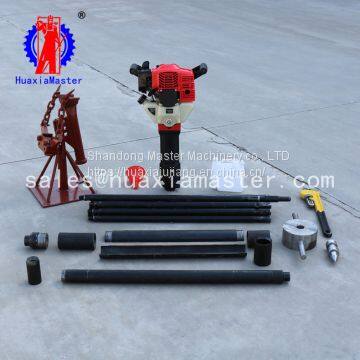

4.Configurations list of QTZ-2 Gasoline engine portable soil sampling drilling rig
Item | Parameter | Platform | Quantity |
Gasoline engine portable Soil sampling drilling rig | QTZ-2 | set | 1 |
Side buckle impact take over | 32*150 | pc | 1 |
Tapered tap | 32*80 | pc | 13 |
Drill pipe | 32*700 | pc | 13 |
Taper tap | 32*100 | pc | 13 |
Reducing nipple | 32*50 | pc | 1 |
Collar | 50*150 | pc | 1 |
Open tube | 50*600 | pc | 1 |
Double-edged pipe boots | 50*100 | pc | 2 |
Reducing nipple | 32*70 | pc | 1 |
Collar | 70*150 | pc | 1 |
Open tube | 70*600 | pc | 1 |
Inner edge pipe boots | 70*100 | pc | 1 |
Outer edge pipe boots | 70*100 | pc | 1 |
Portable sounding hammer | 10kg | pc | 1 |
Sounding the reducing nipple | 32 | pc | 1 |
Double sided hand | 32 | pc | 1 |
Touch probe | 32 | pc | 1 |
Puller | three force arm | set | 1 |
The ratio of oil | 25:1 | pc | 1 |
Oil funnel | pc | 1 | |
Pipe wrench | 80mm | hold | 1 |
Special internal six party | multi-function | 1 | |
Wrench | 24/27 | 1 | |
Internal six party | #6 | 1 | |
Six prismatic wrench | 1 | ||
Spark plug wrench | 1 | ||
Screw driver | 1 | ||
Spare spark plug | 1 |
