Triple Three-row Roller Slewing Bearings
US$ 800 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LYMC
Place of Origin:
China
Model Number:
130.25.500 130.25.560 130.25.630 130.25.710 130.32.800 130.40.1800 130.45.2800 130.50.3550
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao/Guangzhou
Delivery Detail:
30 days
Related Products
-
132.50.3550 Three-row Roller Slewing BearingUS$ 100 - 1000MOQ: 1 Piece -
Crane Bearing 133.25.500. crossed Roller Slewing Bearing 634*366*148mmUS$ 100 - 200MOQ: 1 Piece
-
Crane Bearing 134.25.500 crossed Roller Slewing Bearing 634*366*148mmUS$ 100 - 200MOQ: 1 Piece
-
Crane Bearing 133.25.560 crossed Roller Slewing Bearing 694*426*148mmUS$ 100 - 200MOQ: 1 Piece
-
Crane Bearing 133.25.630 Crossed Roller Slewing Bearing 764*496*148mmUS$ 100 - 200MOQ: 1 Piece
Brand Name
LYMC
Place of Origin
China
Model Number
130.25.500 130.25.560 130.25.630 130.25.710 130.32.800 130.40.1800 130.45.2800 130.50.3550
Feature
Other, Triple Three-row roller slewing bearings
Outside Diameter
634, 4782
Bore Size
,
Gear Options
Internal Gear Only
Triple Three-row roller slewing bearings

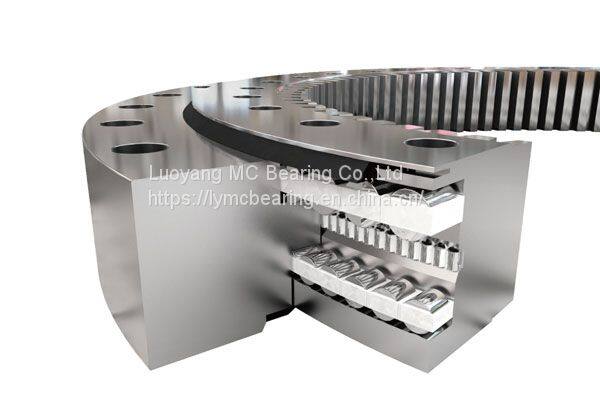

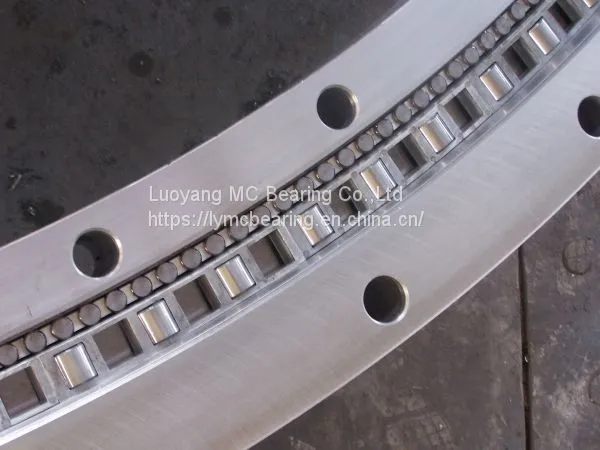

LYMC Bearing three row roller slewing bearing is mainly made up of in-up ring, in-down ring and outside ring. Three rings are separated so each row roller loads can be confirmed exactly and they can bear axial force, resultant torque and considerable radial force at the same time. This series has the maximum load capacity of these four series. It features compact in design.

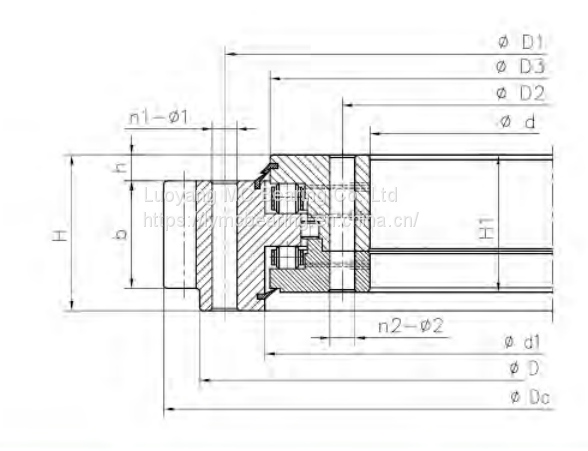

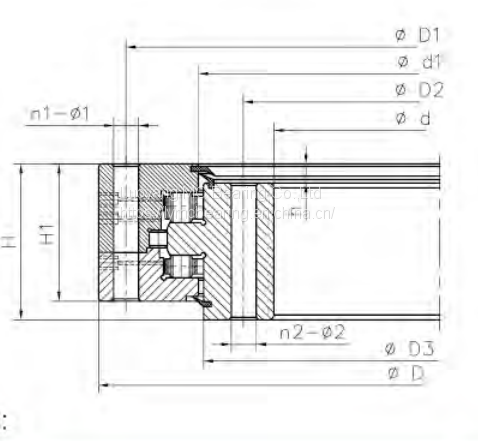

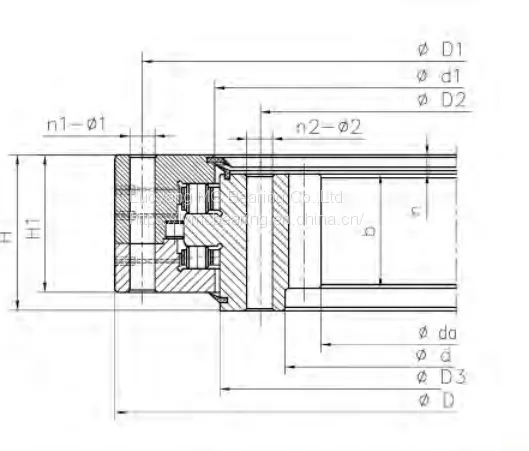

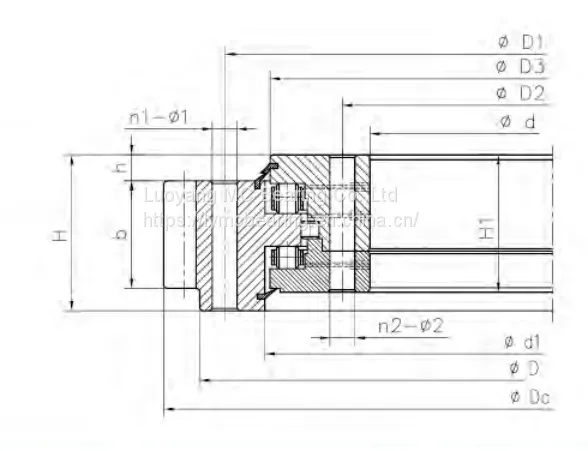

| Bearing No. | Boundary dimensions | Mounting hole dimensions | |||||||||
| Non tooth | External tooth | Internal tooth | D | d | H | D1 | D2 | dn1 dn2 |
dm1 dm2 |
L | n |
| mm | |||||||||||
| 130.25.500 | 131.25.500 | 133.25.500 | 634 | 366 | 148 | 598 | 402 | 18 | M16 | 32 | 24 |
| 132.25.500 | 134.25.500 | ||||||||||
| 130.25.560 | 131.25.560. | 133.25.560 | 694 | 426 | 658 | 462 | |||||
| 132.25.560 | 134.25.560 | ||||||||||
| 130.25.630 | 131.25.630 | 133.25.630 | 764 | 496 | 728 | 532 | 28 | ||||
| 132.25.630 | 134.25.630 | ||||||||||
| 130.25.710 | 131.25.710 | 133.25.710 | 844 | 576 | 808 | 612 | |||||
| 132.25.710 | 134.25.710 | ||||||||||
| 130.32.800 | 131.32.800 | 133.32.800 | 964 | 636 | 182 | 920 | 680 | 22 | M20 | 40 | 36 |
| 132.32.800 | 134.32.800 | ||||||||||
| 130.32.900 | 131.32.900 | 133.32.900 | 1064 | 736 | 182 | 1020 | 780 | 22 | M20 | 40 | 36 |
| 132.32.900 | 134.32.900 | ||||||||||
| 130.32.1000 | 131.32.1000 | 133.32.1000 | 1164 | 836 | 1120 | 880 | 40 | ||||
| 132.32.1000 | 134.32.1000 | ||||||||||
| 130.32.1120 | 131.32.1120 | 133.32.1120 | 1284 | 956 | 1240 | 1000 | |||||
| 132.32.1120 | 134.32.1120 | ||||||||||
| 130.40.1250 | 131.40.1250 | 133.40.1250 | 1445 | 1055 | 220 | 1393 | 1107 | 26 | M24 | 48 | 45 |
| 132.40.1250 | 134.40.1250 | ||||||||||
| 130.40.1400 | 131.40.1400 | 133.40.1400 | 1595 | 1205 | 1543 | 1257 | |||||
| 132.40.1400 | 134.40.1400 | ||||||||||
| 130.40.1600 | 131.40.1600 | 133.40.1600 | 1795 | 1405 | 220 | 1743 | 1457 | 26 | M24 | 48 | 48 |
| 132.40.1600 | 134.40.1600 | ||||||||||
| 130.40.1800 | 131.40.1800 | 133.40.1800 | 1995 | 1605 | 1943 | 1657 | |||||
| 132.40.1800 | 134.40.1800 | ||||||||||
| 130.45.2000 | 131.45.2000 | 133.45.2000 | 2221 | 1779 | 231 | 2155 | 1845 | 33 | M30 | 60 | 60 |
| 132.45.2000 | 134.45.2000 | ||||||||||
| 130.45.2240 | 131.45.2240 | 133.45.2240 | 2461 | 2019 | 2395 | 2085 | |||||
| 132.45.2240 | 134.45.2240 | ||||||||||
| 130.45.2500 | 131.45.2500 | 133.45.2500 | 2721 | 2279 | 2655 | 2345 | 72 | ||||
| 132.45.2500 | 134.45.2500 | ||||||||||
| 130.45.2800 | 131.45.2800 | 133.45.2800 | 3021 | 2579 | 231 | 2955 | 2645 | 33 | M30 | 60 | 72 |
| 132.45.2800 | 134.45.2800 | ||||||||||
| 130.50.3150 | 131.50.3150 | 133.50.3150 | 3432 | 2868 | 270 | 3342 | 2958 | 45 | M42 | 84 | |
| 132.50.3150 | 134.50.3150 | ||||||||||
| 130.50.3550 | 131.50.3550 | 133.50.3550 | 3832 | 3268 | 3742 | 3358 | |||||
| 132.50.3550 | 134.50.3550 | ||||||||||
| 130.50.4000 | 131.50.4000 | 133.50.4000 | 4282 | 3718 | 4192 | 3808 | 80 | ||||
| 132.50.4000 | 134.50.4000 | ||||||||||
| 130.50.4500 | 131.50.4500 | 133.50.4500 | 4782 | 4218 | 4692 | 4308 | |||||
| 132.50.4500 | 134.50.4500 | ||||||||||
