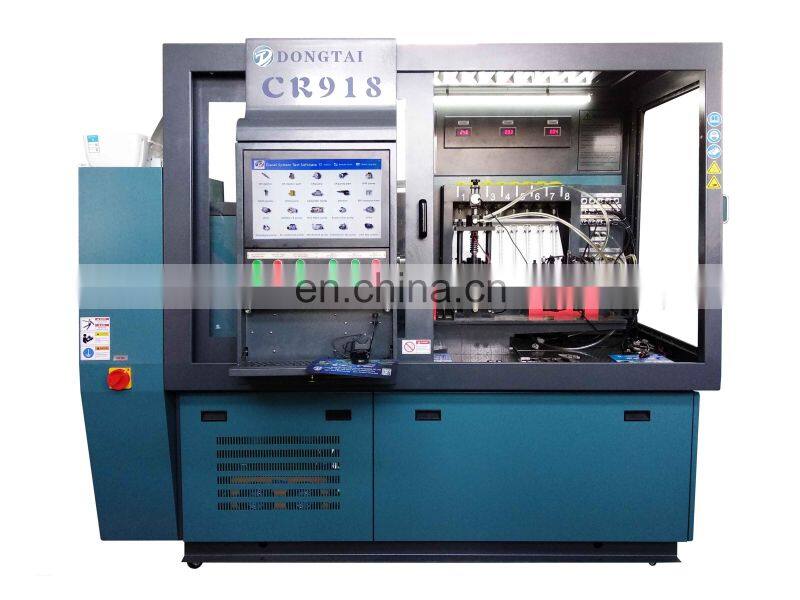

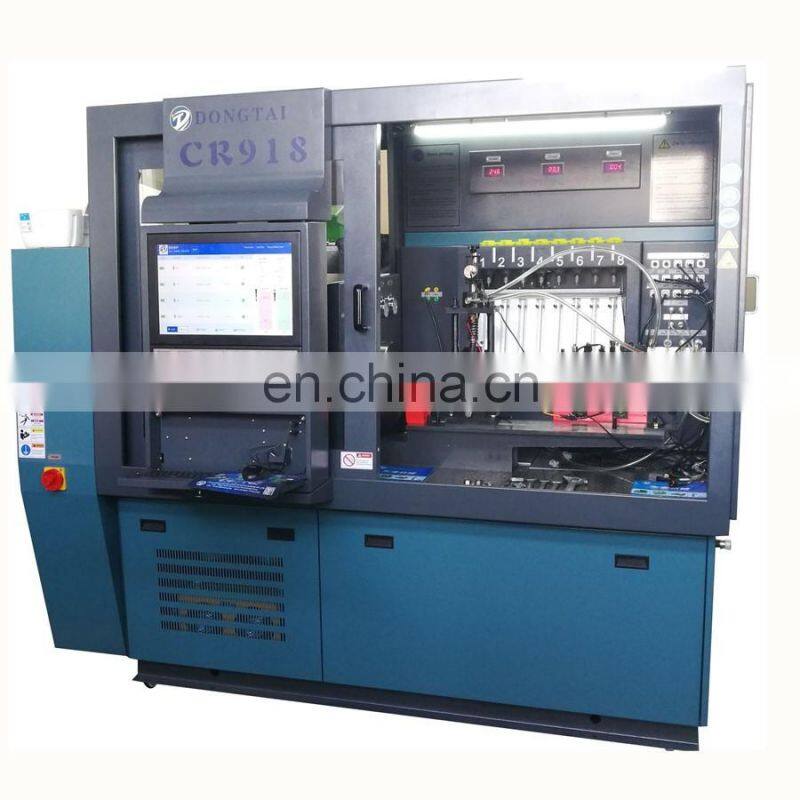

Electrical CR918 ALL Function Injection and Common Rail Test Bench With HEUI ,EUI EUP and QR Coding

CR918 Comprehensive Test Bench with function of Mechanical Pump Testing ,CRI, CRIN , EUI EUP , HEUI , VP37,VP44 , 320D Pump Testing , BIP and Coding



Function:
1, All common rail injector (include piezo )
2,All common rail pumps
3,Denso HP0 PUMP testing
4,EUI/EUP testing
5,HEUI injector testing
6,HEUI pump testing
7,CAT 320D pump testing
8,Electronic pump testing
9,Measurement unit testing
10,Armature stroke AHE test
Optinal Function:
1,VP37/VE37 electronic pump
2, Vp44 pump test
3, TICS electronic pump
4, Electronic unit pump
5, General pump test(E2 pump)

TECHNICAL PARAMETERS
Main power: 380V AC 220V AC(Optional )
Phase: Three single (optional) )
Frequncy: 50Hz/60Hz
Current: 45A(MAX)
Mian motor: 22KW
Main motor rotation: 0-4000 RPM/MIN
Oil motor HP/ Flow: 0.19KW / 13L/MIN
Diesel motor HP /Flow: 0.19KW / 13L/MIN
Control circuit voltage: DC12V/24V 350W
ECU internal voltage: 0-200V DC (MAX)
Oil tank volume: 30L
Diesel Tank volume: 52L
Temperature control: Heating/Forced cooling
Max rail pressure :180MPa 240MPa (Optional) )
Flowmeter (injection): 4—550ml/min
Flowmeter (fuel supplying):1—400L/H
Flowmeter (fuel flow back):1—400L/H
Flowmeter (Oil) :5—600L/H
Center distance between motor and working bench:125mm
Weight 1100KG
Outlook size net :(LXWXH )2250X1260X1920
Wooden cage : (LXWXH )2350X1500X2100
