Home > Products > Test Bench > COMPREHENSIVE COMMON RAIL TEST BENCH CR918

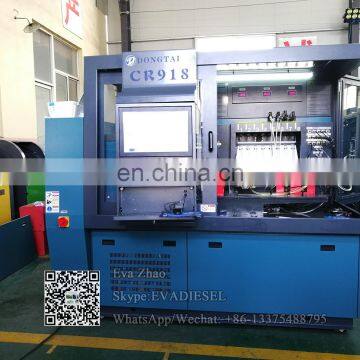

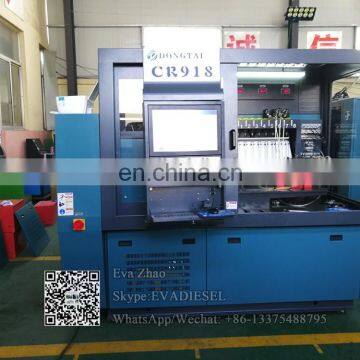

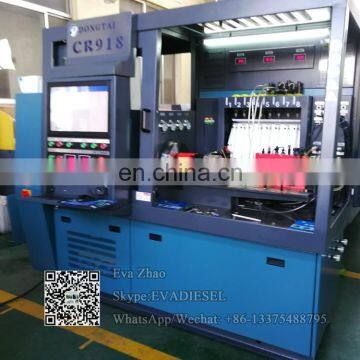

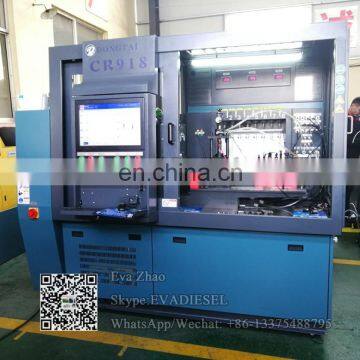

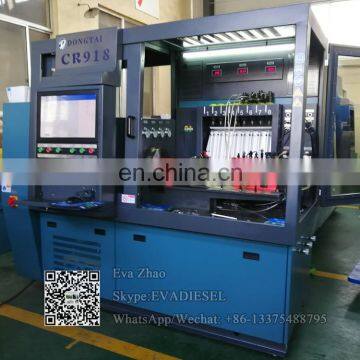

COMPREHENSIVE COMMON RAIL TEST BENCH CR918
- 1000 Set / Sets per Month
- T/T Credit Card
-
380V Common rail HEUI Piezo Pump CR918 Test Bench Fuel Pump Tester
-
CR918 Fuel pump test denso common rail injector test bench EUI EUP HEUI
-
CR918 All In One Line Integrated Common Rail Test Bench
-
Multi-function electronic CR918 common rail diesel fuel injectors pump test bench
-
Diesel fuel CR918 high pressure common rail injector pump test bench
-
CR918 Hot sale automobile electrical used diesel injection pump test bench
Product Details
| Brand Name: | DONGTAI | Place of Origin: | Shandong, China | Model Number: | CR825 |
| Type: | Engine Analyzer | Voltage: | 220V/380V | Power: | 22KW |
| Warranty: | 3 Years | Applicable Models: | All diesel engine |
Product Description
CR918 Multifunction test bench
- Test all traditional in-line, rotor type high pressure oil pump
- ALL common rail injector tesitng with coding
- ALL PIEZO injector testing
- ALL Common rail pump testing
- ALL EUI EUP testing
- All double soleind valve EUI testing
- ALL HEUI Injector testing
- ALL HEUI Pump testing
- VP37 pump testing
- VP44 Pump testing
- BIP funcion( optional)
Configuration
- 1.3 pcs import flow sensor
- 2.High quality oil tank with powerful compressor cooling system 3.Motor power: 220v/380v 18.5kw 8 or 12 cylinders with glass tube
- 4.Double high pressure rail
Test system
Automatically test different models solenoid valve injectors (common rail injectors and piezo injector)BOSCH, DENSO , DELPHI, SIEMENS. Common rail injector and piezo injector testing process
1.High pressure cleaning
2.Atomization test: to judge if the injector is blocked
3.Seal test: check the sealing performance of the nozzle, the Nozzle nut and solenoid valve.
4.Injector test: Test the injected fuel and the volume of return under rated speed, idle, emission status, pre-injection and preinjection.
5. Check the solenoid valve current of the injector, lifting the valve assembly, fuel injection lift.
BOSCH DENSO DELPHI SIEMENS Common rail injector testing and coding
Automactically test all common rail pumps( Bosch CP1 CP2 CP3 CP4, DENSO HP0 HP3 HP4 DELPHI )
BOSCH CP4 PUMP TESTING DENSO HP0 PUMP TESTING
Also can test BOSCH CP1 CP2 CP3 ,DENSO HP3 HP4 ,DELPHI pump.
Automactically test ZME
Automatically test EUI EUP ( contain 26sets adaptors
Land Rover,CAT,Cummins,Scania ,Detroit,VW,Audi,John Deer,Delphi E1,E3,HENGYAN .ETC
HEUI INJECTOR AND PUMP TESTING
Automatically test CAT C7 C9 C-9, 3126, ISUZU 3408, Ford Power Stroke 6.0 . Automatically test Heui injector and pump C7 C9 C-9 3126 ISUZU 3408 Automatically test HEUI C7 C9 C-9 3126 pump and 320D pump
CAT C7C9 C-9 3126 PUMP CAT 320D PUMP CAT C7C9 C-9 3126 INJECTOR
Automatically test VP37, VP44,RED 4
VP44 PUMP TESTING vp37 pump testing
Advantage
1.Use original BOSCH CP3 pump Industrial cooling system to control temperature ,
2.stailess steel oil tank With Original BOSCH high pressure DRV ,ZME, Rail pressure sensor. rail pressure controled ±0.5Mpa, rail pressure 0-250Mpa. With original import flow sensor, the flow range is 0.008-4l/Min, the test precision is 0.3% Optional choice on testing one injector, two injector, four injector, six injector BIP CAM Drive
ACCESSORY
OUR COMPANY IS LOCATED IN TIAN CITY, SHANDONG PROVINCE, CHINA
WELCOME TO VISIT
EVA ZHAO
COMMONRAIL@DTDIESEL. COM
WHATSAPP:+86-13375488795
