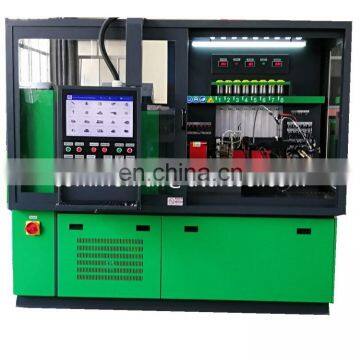

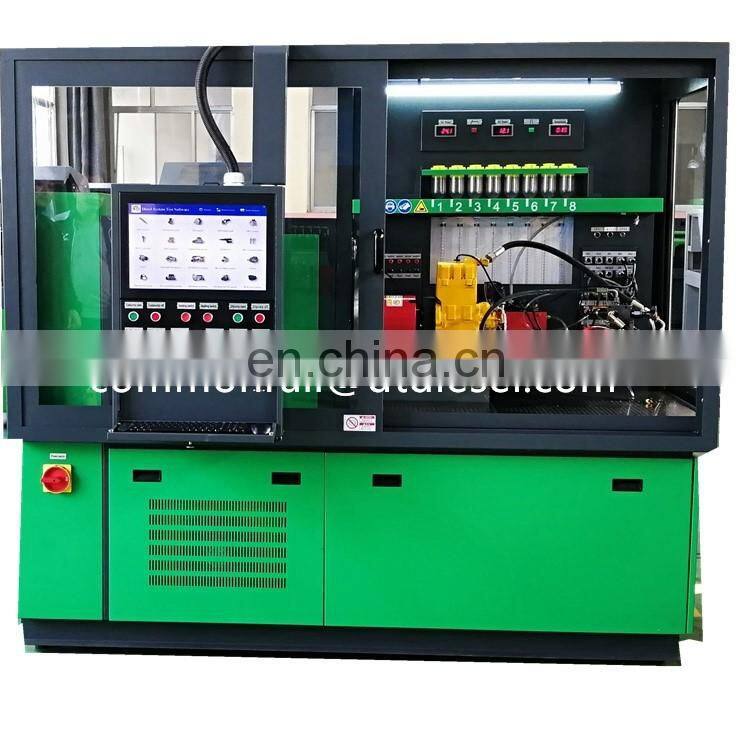

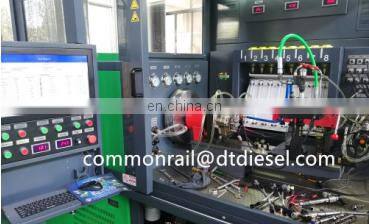

CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing

CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing thumbnail-1
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing thumbnail-2
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing thumbnail-3
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing thumbnail-4
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing thumbnail-5
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing thumbnail-6
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing thumbnail-7
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing photo-1

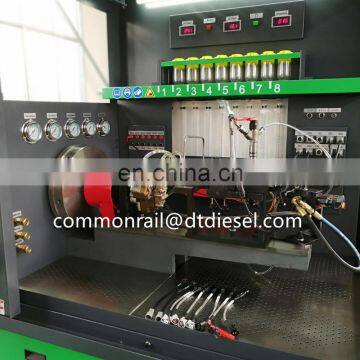

CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing photo-2
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing photo-3
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing photo-4

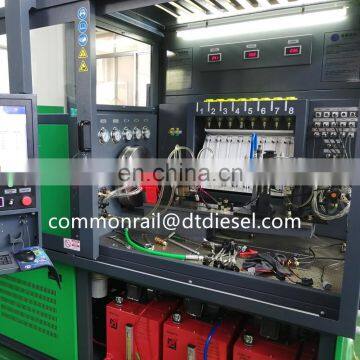

CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing photo-5
CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing photo-6

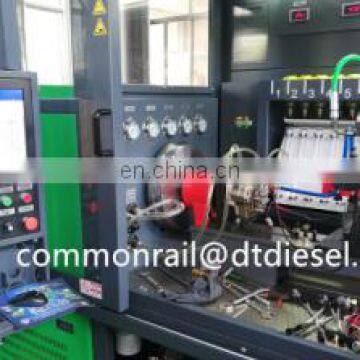

CR825 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing photo-7
US$ 16,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
dongtai
Place of Origin:
China
Model Number:
CR825
Contact Supplier Request Quote Chat Now
Taian Dongtai Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name dongtai
Place of Origin China
Model Number CR825
Type Engine Analyzer
Certification ISO9001
Voltage 380v or 20v
Power 18.5kw 22kw
Warranty 3 Years
Applicable Models Truck, diesel car,Construction machinery
Product Description
Main power
380V AC 220V AC(Optional） 18.5KW
ECU internal voltage
0-200V DC（MAX)
Phase
Three single（optional）
Oil tank volume
30L
Frequncy
50Hz/60Hz
Diesel Tank volume
52L ( double)
Current
45A(MAX)
Temperature control
Heating/Forced cooling
Main motor rotation
0-4000 RPM/MIN
Max rail pressure
240MPa（Optional）
Oil motor HP/ Flow
0.19KW / 13L/MIN
Flowmeter（injection）
4—550ml/min
Diesel motor HP /Flow
0.19KW / 13L/MIN
Flowmeter（fuel supplying）
1—400L/H
Control circuit voltage
DC12V/24V 350W
Flowmeter（Oil）
5—600L/H

Specifications

 3pcs import flow sensor
High quality oil tank with powerful compressor cooling system
Motor power: 220v/380v 18.5kw
8 or 12 cylinders with glass tube
Double high pressure rail with DRV valve

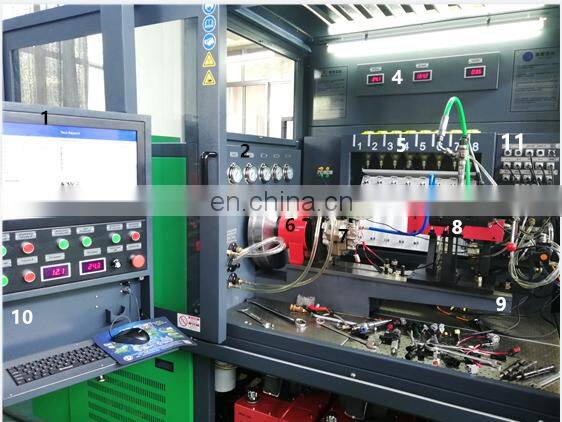

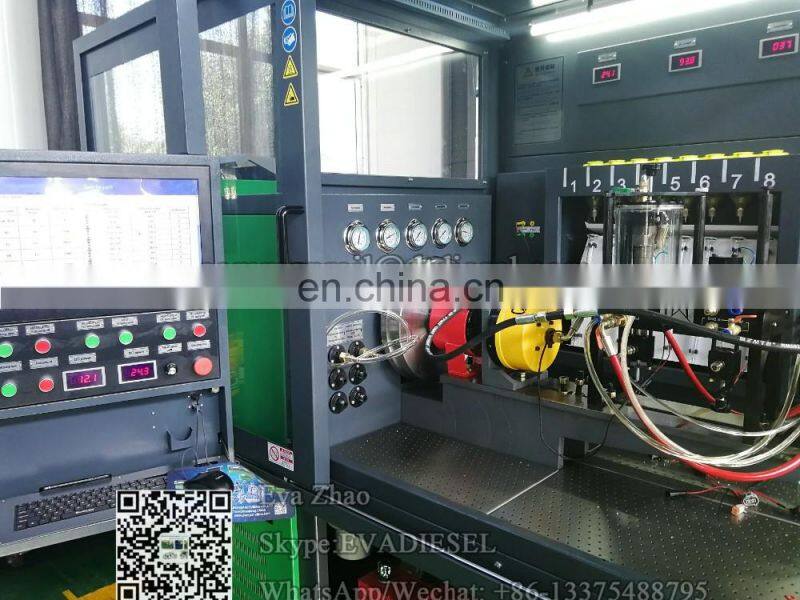

Detailed Images
No.
Name
Qty.
No.
Name
Qty.
1
Computer
1 PCS
7
Actuate pump
1 PCS
2
Pressure gauge
6 PCS
8
308 Fixture
1 SET
3
Scale wheel
1 PCS
9
Working bench
1 PCS
4
Singal panel
1 PCS
10
Control device
1 PCS
5
Collecting cup
8 PCS
11
common rail sensor, EUI EUP, HEUI Injector and pump , Piezo injector sensor
19 PCS
6
Coupling
1 PCS
Function display

Injection pump testing.

Test all traditional in-line, rotor type high pressure oil pump
8cylinders or 12 cylinders
Use glass tube to show results

Common rail BOSCH injector and coding

Common rail injector testing: BOSCH 110 ,120 ,
More than 3000 data inside

DENSO Injector testing


DELPHI Injector testing and coding .


Siemens Piezo Injector Testing
and Coding

Test all type PIEZO injector (BOSCH 115 116 117 type)
DENSO PIEZO
SIEMENS PIEZO

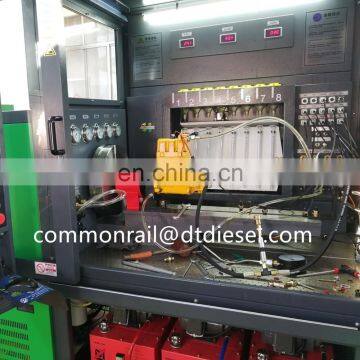

HEUI testing

 Automatically test CAT C7 C9 C-9, 3126,
ISUZU 3408, Ford Power Stroke 6.0 .
Automatically test Heui injector and pump
C7 C9 C-9 3126 ISUZU 3408
Automatically test HEUI C7 C9 C-9 3126
pump and 320D pump
Automatically test VP37, VP44,RED 4
Automatically test all traditional in-line, rotor type high pressure oil pump


Popular test bench

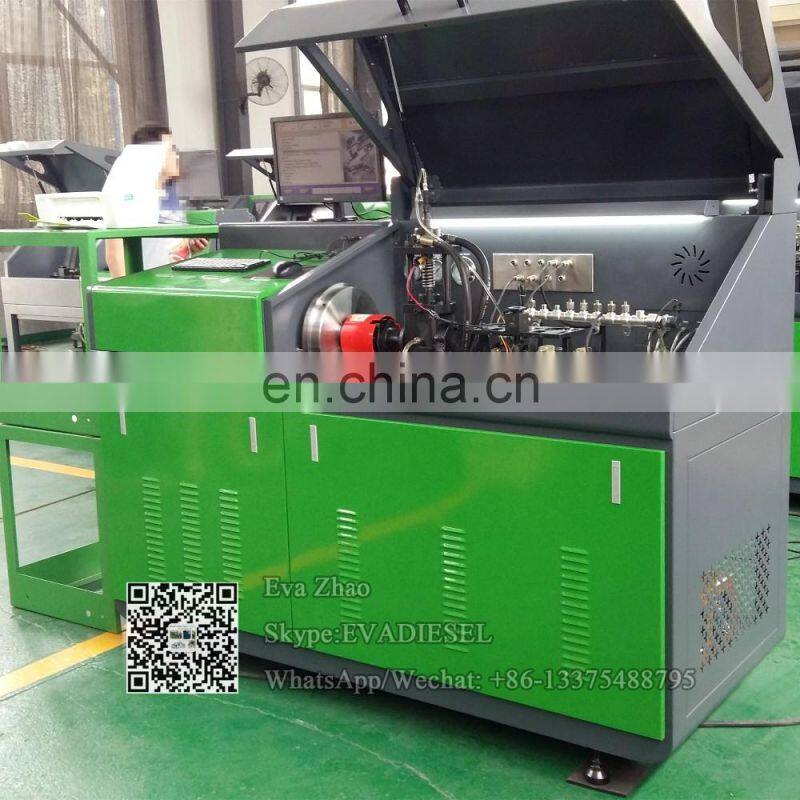

CR819 Multifunction test bench

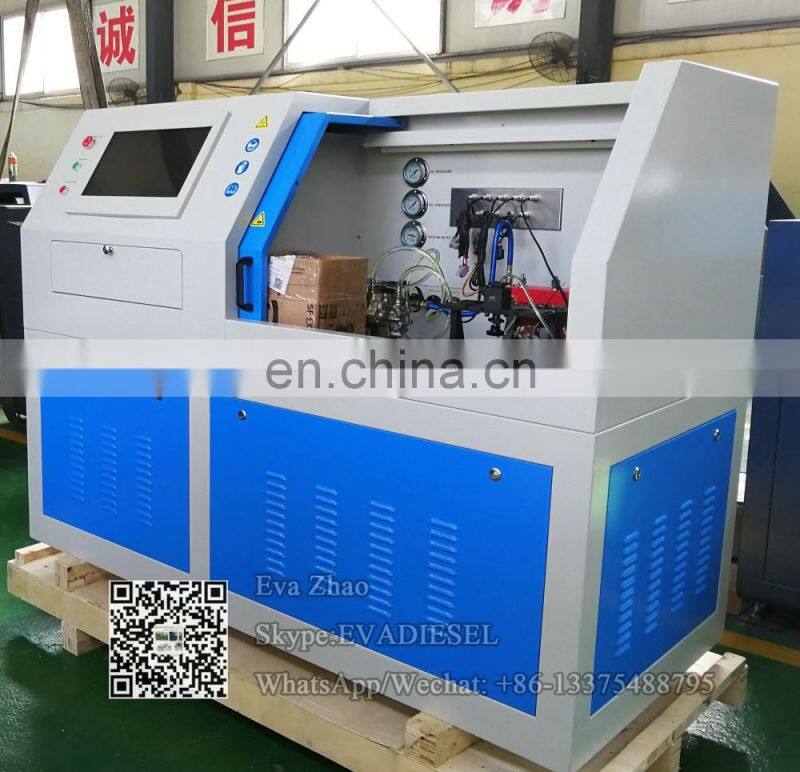

CR815 common rail test bench
CR815 common rail test bench
Our advantage

Use original BOSCH CP3 pump
Industrial cooling system to control temperature , stailess steel oil tank
With Original BOSCH high pressure DRV ,ZME, Rail pressure sensor. rail pressure controled ±0.5Mpa, rail pressure 0-250Mpa.
With original import flow sensor, the flow range is 0.008-4l/Min, the test precision is 0.3%
Optional choice on testing one injector, two injector, four injector, six injector
BIP CAM Drive
