Best Quality DTS815 Diesel Injection Pump Test Bench

DTS815 diesel fuel injection test bench is design for customer’s require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.  It is the kind of  product with high quality and good price in our business.

Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.

>>> Main function:

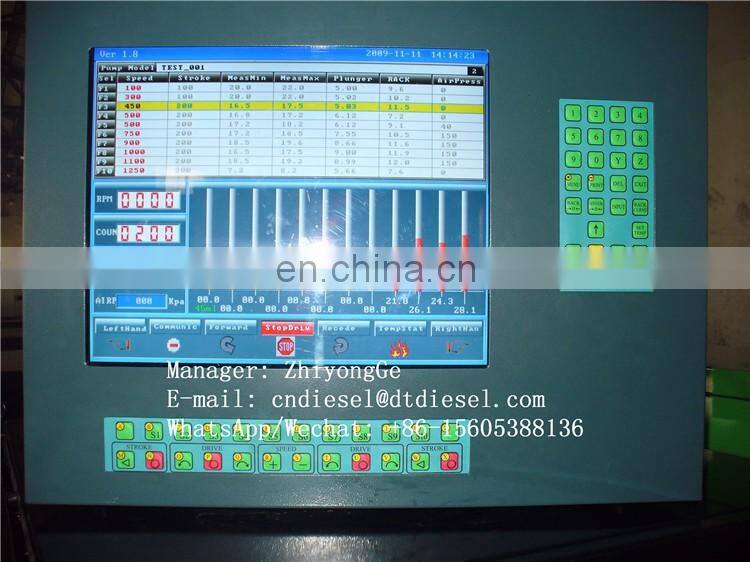

1. Measurement of each cylinder delivery at any speed, and digital display the delivery oil which is showing on the computer, more precision. LCD windows operating system.

2. Test point and interval angle of oil supply of injection pump.

3. Checking and adjust the mechanical governor.

4. Checking and adjusting the distributor pump.

5.Experiment and adjusting of behavior of supercharging and compensatory  device.

6. Measurement of oil return of distributing pump

7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.

9. Checking of the advance angle of advance device.

10. Checking the sealing of injection pump body

11.Install tube of auto-sucking oil supply can check on oil supply    pump(including VE pump.

12. Checking the travel of stroke (on request)

13. Advance angle checking.

14.Force cooling ( on request)

15. Lubricating Oil (On request)

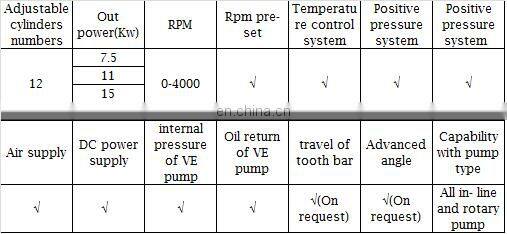

>>> Technical characteristic:
