CR-NT816 professional vehicle calibration machine common rail diesel injection pump test bench

Name: CR-NT816 professional vehicle calibration machine common rail diesel injection pump test bench
Brand: dongtai
Price: USD $6,700 - 6,700 / Set

FOB Price

USD $6,700 - $6,700 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port QINGDAO
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	dongtai	Place of Origin:	Shandong, China	Model Number:	CR816, DTS619
Certification:	ISO CE	Voltage:	220V/380V
Power:	7.5KW, Electronic	Warranty:	1 Years	Applicable Models:	diesel cars

Product Description

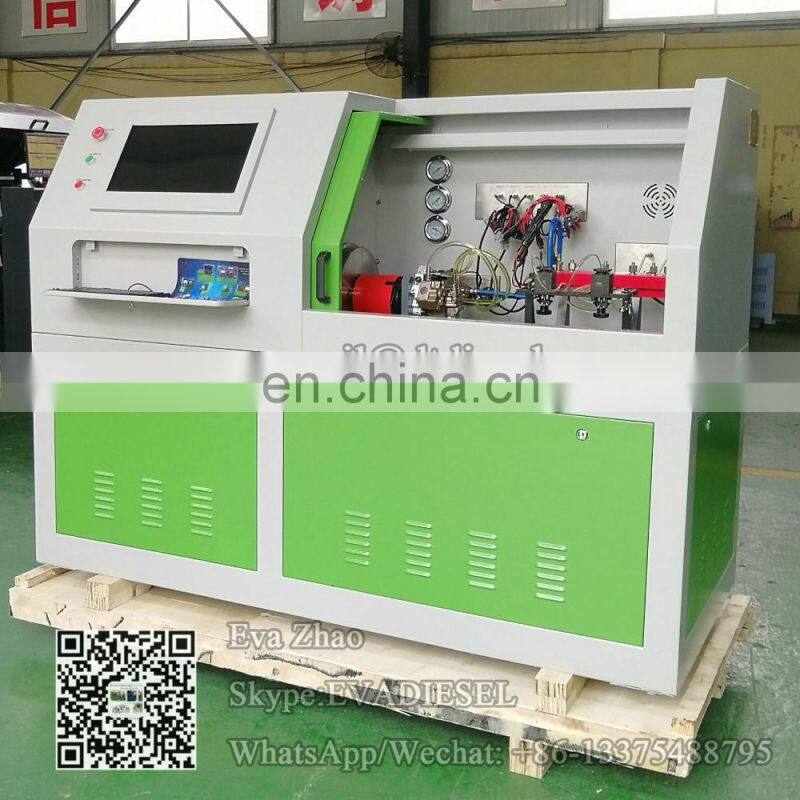

CR816 Common rail test bench

1.It can test BOSH, DENSO, DELPHI, SIEMENS, CAT etc injector
2.Advanced control, a key selection, the whole process of detection.
3.Open data management, the user can add the injector data itself, especially for the new fuel injector standard oil calibration.
4.It with pump flow sensor, it works with high pressure rail sensor to test common rail pumps.
5.It can test CP1, CP2,CP3 ,HP0 etc high pressure common rail pumps.

6.It with Cambox can test EUI EUP and HEUI

PARAMETER

Main power	380V AC 220V AC(Optional) 11w
Phase	Three single(optional)
Frequncy	50Hz/60Hz
Current	45A(MAX)
Main motor rotation	0-4000 RPM/MIN
Control circuit voltage	DC12V/24V
ECU internal voltage	0-200V DC(MAX)
Oil tank volume	30L
Temperature control	Cooling fans
Max rail pressure	250MPa

Company Profile

Our company is in Taian city, shandong province, china. Our mian products including diese test bench and spaerparts.

welcome to visit our factory

Exhibition

Our Advantages

HIGH QUALITY FLOW SENSOR

BOSCH CP3 PUMP

Forced cooling system

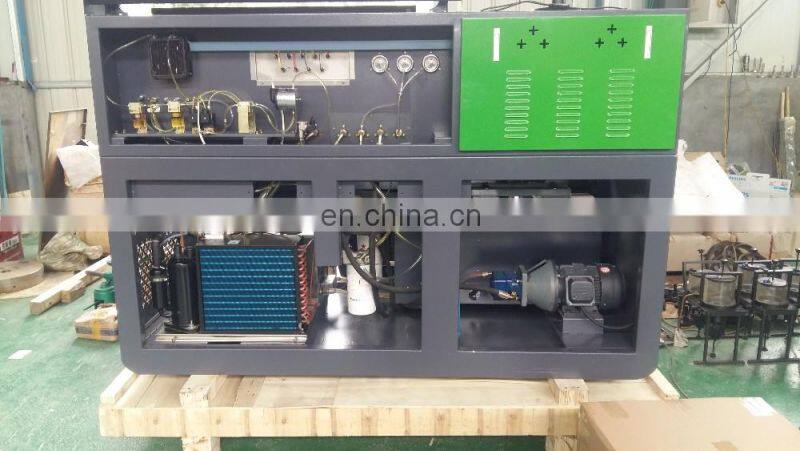

Main configuration

Use original BOSCH CP3 pump
Industrial cooling system to control temperature , stailess steel oil tank
With Original BOSCH high pressure DRV ,ZME, Rail pressure sensor. rail pressure controled ±0.5Mpa, rail pressure 0-250Mpa.
With original import flow sensor, the flow range is 0.008-4l/Min, the test precision is 0.3%
Optional choice on testing one injector, two injector, four injector, six injector
Optional BIP CAM Drive

Testing DATA

BOSCH DENSO DELPHI SIEMENS, PIEZO INJECTOR

BOSCH DENSO DELPHI PUMP

Other products

CR825

Multifunction test bench

CR815

Common rail test bench

CR819

Common rail test bench with HEUI PUMP FUNCTION

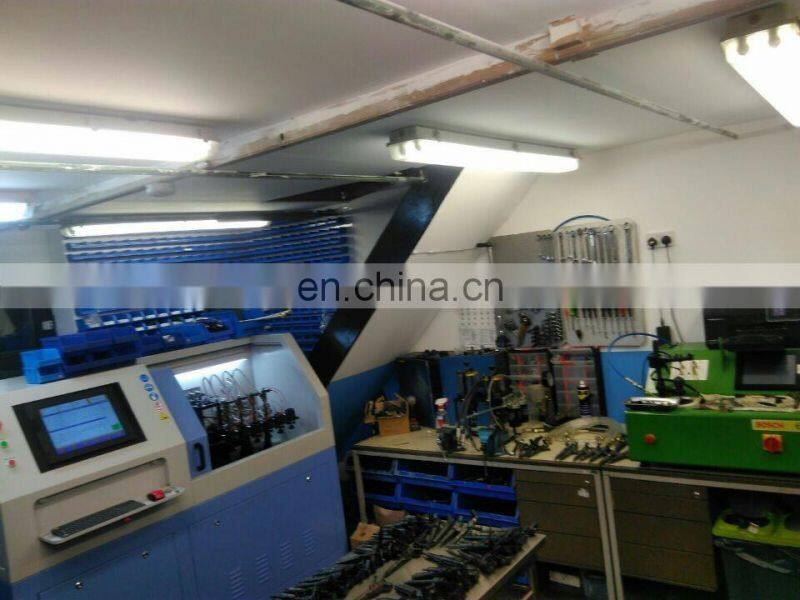

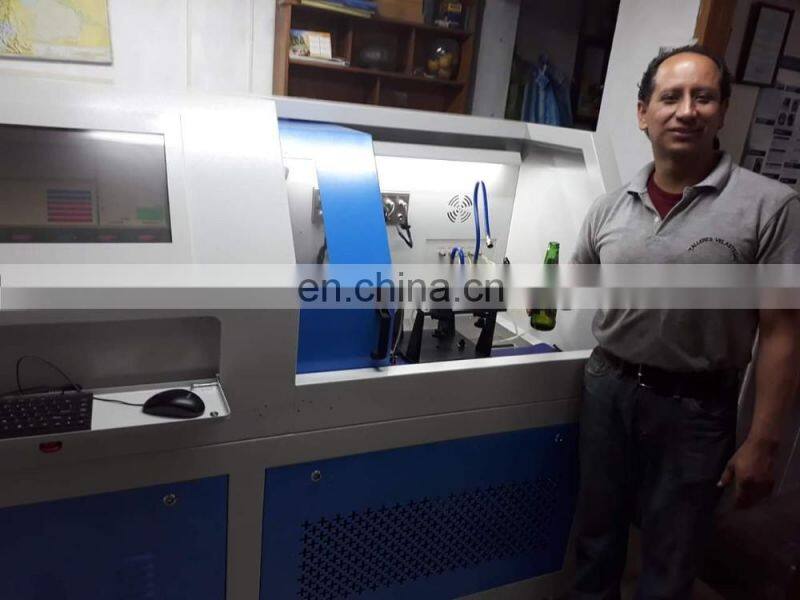

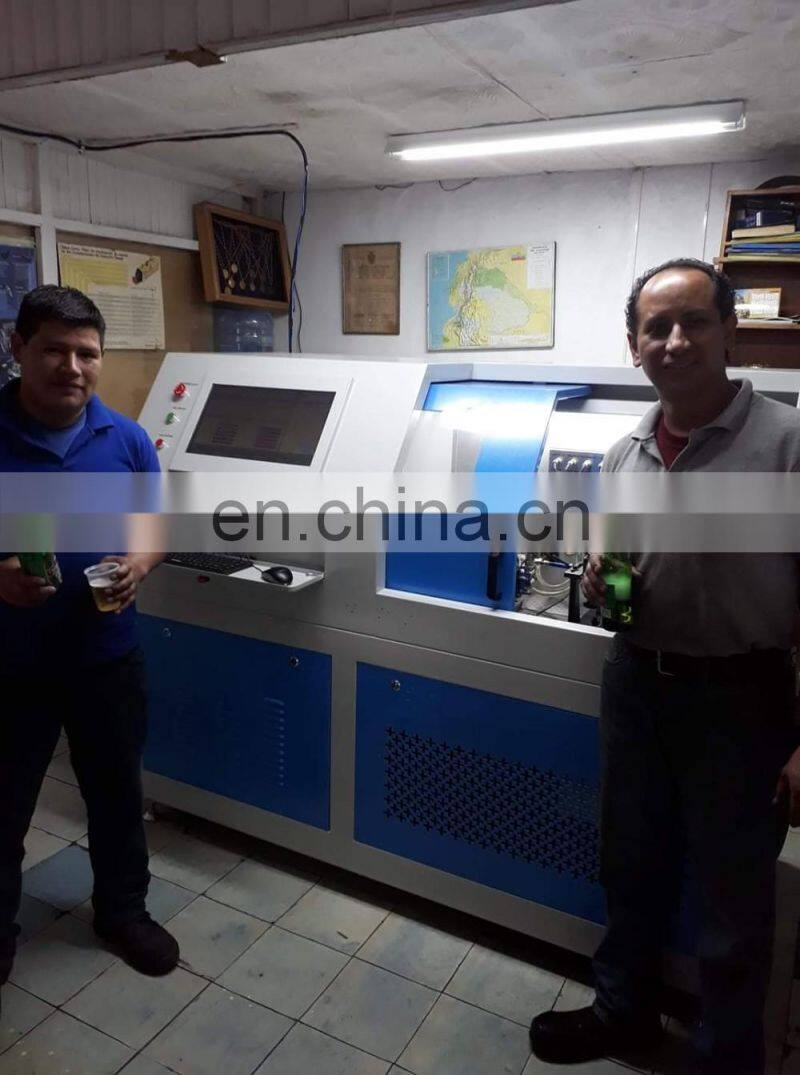

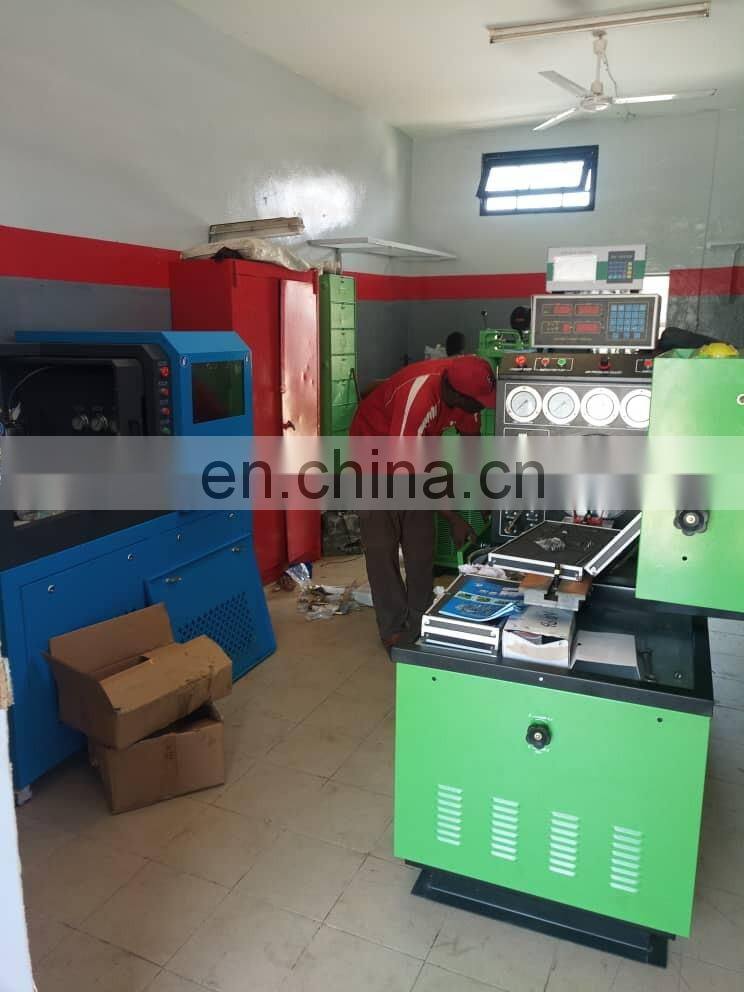

Customer Feedback
