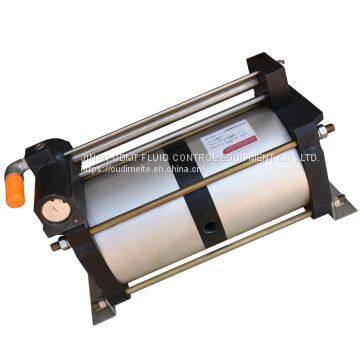

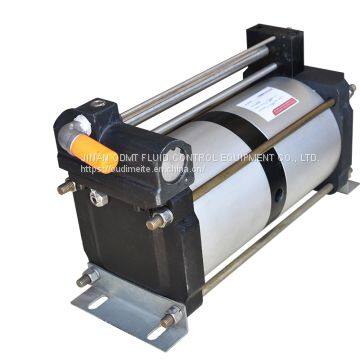

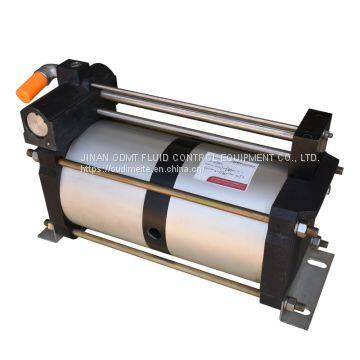

Air Driven Air Booster Pump

GAB02 gas amplifier is suitable for the working environment that needs to increase the pressure of the original air compressor system. It can increase the pressure of the workshop air supply system. It only needs to use the compressed air in the working system as the air source.

ODMT air driven air amplifiers can be applied in air-pressured system when it needs to amplify the pressure. These amplifiers can increase the air pressure to 2-5times. The compressed air in the working system is the air source. This kind of pump is suitable for single air source pressurization.

◆Maximum working pressure up to 40 bar

◆Maximum flow: 1.350Ln/min

◆No additional energy consumption when the set pressure is reached.

◆No electricity required. (It can be used in areas that need explosion-proof.)

MAB02 air booster pump uses a single gas-controlled unbalanced gas distribution valve to achieve the reciprocating movement of the pump. All are made of aluminum alloy and stainless steel. The seals used are internationally high-quality products. The service life of the pump is recommended to drive air pressure ≤8bar. The driving piston diameter of this pump is 100mm, which is a double driving pump.

Driving air source: clean compressed air;

Type: Air booster pump;

Driving compressed air pressure: 2-8bar;

Maximum output air flow: 580Ln / min;

Maximum output air pressure: 16bar;

Applicable medium: clean air;

Minimum air inlet pressure: 2bar;

Maximum air inlet pressure: 16bar;

Maximum noise index: 79db;

Maximum operating temperature: 60 ° C;

Drive air inlet size: G3 / 8 ";

Air suction port size: G3 / 8 ";

High-pressure air outlet size: G3 / 8 ";

Equipment net weight: 4.2kg.

Dimensions: 346mm * 86mm * 93mm

MAB02 Working Curve
