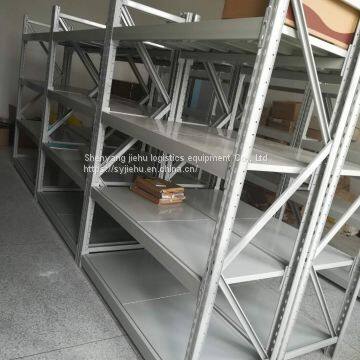

The heavy cross beam shelf is usually a heavy shelf, which is the most common in all kinds of storage shelf systems in China. It is composed of columns, beams, cross braces, diagonal braces and self-locking bolts, which can effectively prevent the instability of shelf caused by bolt loosening. The cross beam is a special cold-rolled p-type closed beam. The structure is simple, reliable, light, strong bearing capacity and low cost When the card is connected with the column, it is equipped with special design safety pin, which can ensure that the cross beam will not fall off under the impact of external force; the laminated plate is made in the world, which has the characteristics of strong bearing capacity, wear resistance, simple replacement and low maintenance cost. Purpose:
The heavy beam type shelf features low cost, safety and reliability, simple and convenient assembly and disassembly; it is suitable for manual access, with each layer of standard effective bearing capacity of more than 800kg. It is suitable for manual access to box type goods, or supporting with parts boxes and turnover boxes to load scattered heavy goods.
Characteristic:

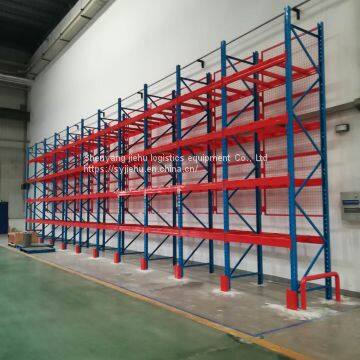

1. The heavy beam type shelf is a commonly used form of shelf. It adopts the convenient unit pallet access mode, effectively cooperates with forklift loading and unloading, and it is convenient and quick to access goods. It has 100% picking capacity, which is the most economical choice for first in first out. But the utilization rate of warehouse space is not high. Widely used in all walks of life, it is the most common shelf type.
Selective Racking
Selective Racking
2. The column plate of heavy beam type shelf is composed of column, cross brace and diagonal brace connected by bolts; the column plate and p-type closed beam are connected to form shelf frame, which is fixed by safety pin, simple and reliable in structure; the steel laminate is placed on the beam to form the whole shelf. Each layer can be adjusted up and down in 75mm steps.
3. With the size of the beam and the thickness of the laminate, the number of stiffeners determines the layer load requirements. When the relative length and material selection requirements are met, the maximum layer load can reach 2500kg / layer.
4. In general, the height of the column of the heavy beam type shelf is not more than 18 meters, and the platform shelf can be built on the basis of the shelf.
Production process:
The specification of heavy beam rack column is: 80 × 60 × 2.0mm special rack column profile. It is made of high-quality strip steel by opening, automatic rolling, punching and cutting according to the height specified by customers.
The beam is cold-rolled and welded with four specifications: 80 × 50, 100 × 50, 120 × 50, 140 × 50. It is a standard product specially produced for shelf in cold bending industry. After purchase, material is cut according to customer's size,
The welding shelf is connected with a special column grip, and the semi-finished product can be formed by grinding.
The heavy-duty cross beam shelf laminate is made of high-quality cold plate (SPCC) by opening, longitudinal cutting, bending and welding of stiffeners.
After the heavy beam type shelf column and laminate are processed into semi-finished products, they can be shot blasted for rust removal and oil removal. Packing and delivery after completion.
