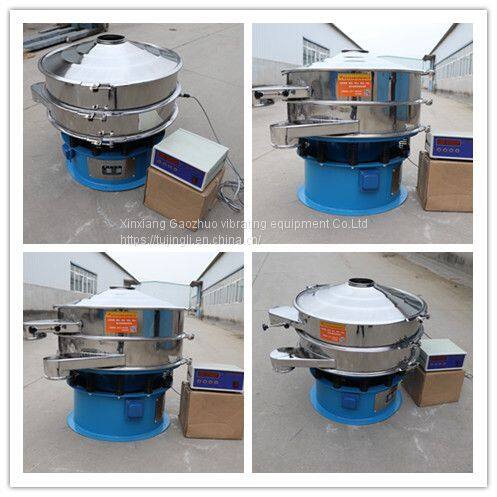

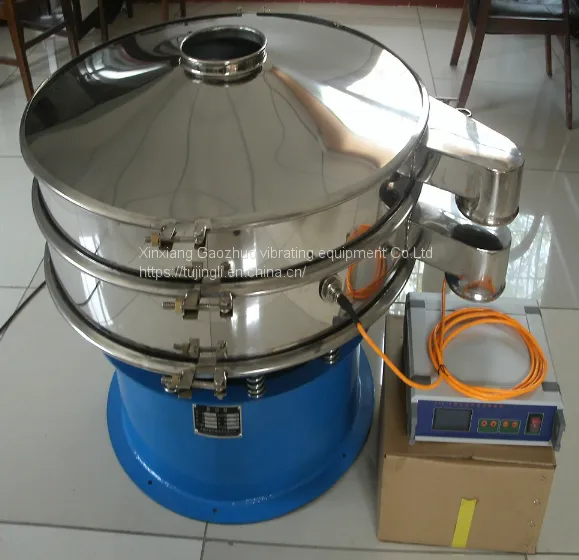

Ultrasonic vibrating screen is the rotary vibration screen installed ultrasonic system and it is a high-precision ultra fine powder screening machine. It is consist of upper cover, screen frame with ultrasonic, base, vertical motor and ultrasonic generator etc. Diameter can be ranged from 400mm to 2000mm and with single or multiple screening layers.Ultrasonic vibration screen solve a series of screening problems, including adsorption, reunite, static, precision, density, light weight and other screening problems, which makes the separation of ultra fine powder easier.
Working Principle

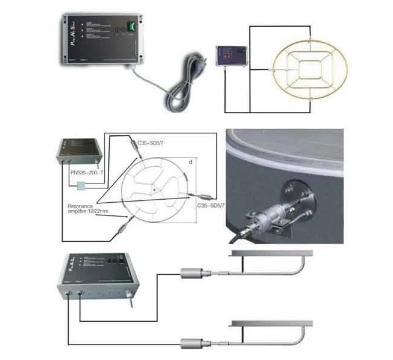

Ultrasonic vibrating screen can convert the 220V,50HZ or 110V,60HZ electric energy to 18KHZ high frequency electric energy, then, convert it to mechanical vibration of 18KHZ through ultrasonic generator and transmit to the screen mesh. The super-fine powder on the screen mesh will get greater ultrasonic acceleration and avoid a series of screen mesh blocking factors.
Advantages and Features
1.Prolonged mesh life by reducing screen overload and frequency of mesh cleaning.
2.More efficient sieving capacities which could ensure the quality of final product.
3.Screen surface could achieve maximum utilization, maximizing the productivity.
4.Easy to install and maintain.
5.More efficient reducing the blockages for mesh.
6.Without pollution to the material which produced by the bouncing ball.
7. Resolve adhesive material and reduce the oversize screening material.
8. One intelligent ultrasonic generator can applied for single or multiple layers.
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
