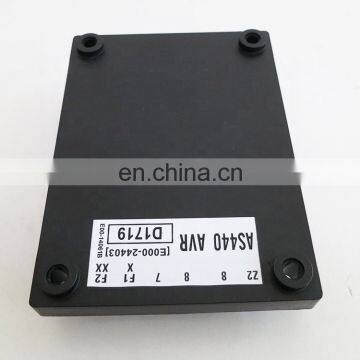

Portable Generator Diesel Engine Automatic Voltage Regulator AS440 AVR
USD $10 - $30
/ Set
1 Set(Min.Order)
- 5000 Piece / Pieces per Month
- any port in china
- T/T Credit Card
You May Like
-
K19 K38 Diesel Engine Repair Tools 4914485 Engine Tool Box
-
High Quality Truck Parts 3517010 Hand Control Valve
-
High Performance Engine Repair Tools 3823025 K19 K38 Injector Removal Tool
-
High Quality High Precision 6306 Deep Groove Ball Bearing
-
Construction Machinery Diesel Engine Repair Tools Loading Piston Tool
-
Original/aftermarket 6CT Diesel Engine Parts O-Ring Seal 3910824 O-Ring Seal
Product Details
| Brand Name | Sanfeng | Place of Origin | Hubei, China | |
Product Description
Portable Generator Diesel Engine Automatic Voltage Regulator AS440 AVR
Click Here To Get Latest Prices
| Type | AS440 |
| Part No. | E000-24403 |
| Description | AC Generator Spare Parts High Voltage AVR |
| Sensing Input | |
| Voltage | Jumper selectable.100-130 Vac 1 phase or 190-264 Vac 1 phase |
| Frequency | 50-60 Hz Nominal |
| Power Input | |
| Voltage | 100-264 V ac 1 phase |
| Frequency | 100-120 Hz nominal |
| Output | |
| Voltage | 82 V d.c. @ 200 V a.c. |
| Current | Continuous 4 A dc. transient 7.5A for 10 secs. |
| Resistance | 15 ohms min |
| Regulation | +/- 1.0% (see note 1) |
| Thermal Drift | 0.03% per deg. C change in AVR ambient |
| Typical System Response | |
| AVR Response | 20 ms |
| Filed Current to 90% | 80 ms |
| Machine Volts to 97% | 300ms |
| External Voltage Adjustment | +/- 10% with 1 k ohm 1 watt trimmer |
| Under Frequency Protection | |
| Set Point | 95% Hz(see note 4) |
| Unit Power Dissipation | 12 watts maximum |
| Analogue Input | |
| Maximum Input | +/- 5V dc |
| Sensitivity | 1v for 5% Generator Volts (adjustable) |
| Input Resistance | 1k ohm |
| Quadrature Droop Input | |
| Max. Sensitivity | 0.07 A for 5% droop 0PF |
| Max. Input | 0.33 A |
| Over Excitation Protection | |
| Set Point | 65 V dc |
| Time Delay | 10-15 seconds (fixed) |
| Build Up Voltage | 4 volts @ AVR terminals |
