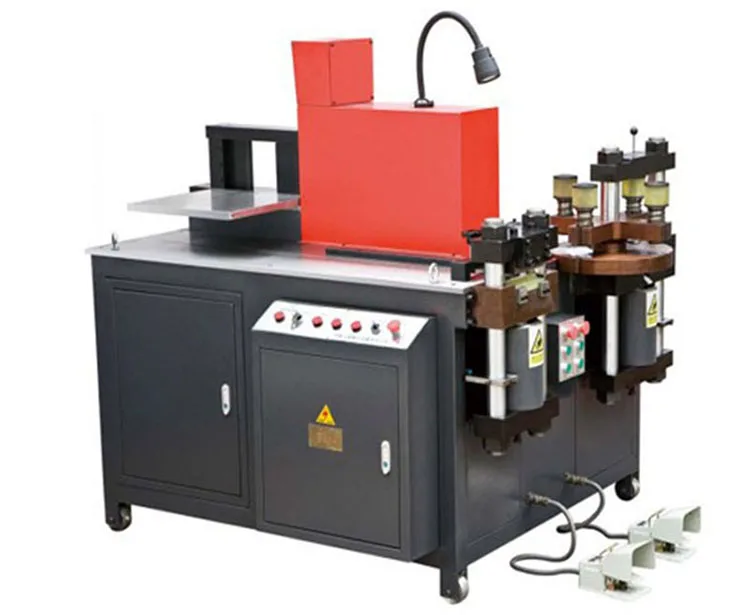

Busbar Machine Cutting Bending Punching

busbar machine cutting bending punching

Application

It is special machine for cutting,bending and punching on aluminum and copper bus bars.

Specification

It combines punching, bending and cutting together as well as some other functions such as embossing, twisting, flattening, pressing tie-in, etc.

Three electric motors and pumps make sure that workers can operate the cutting unit,punching unit and bending unit at the same time.

(1)Cutting unit:it uses punch shearing,the incision interface is flat,no droop and burrs and waste,beautiful shape.

(2)Punching unit:uses an united four-mode turn plate in tooth shape to make sure the upper mold and the lower mold are absolutely in the same center,improving the mold concentricity and longtening the working life. The turnplate is in tooth shape with good view and high strength. No need to frequently change molds, labor intensity is highly reduced. It is easy and quick to use.

Producing efficiency is obviously higher than a traditional one.

Newest update:add table with ruler on punching unit,it is much easier to confirm punching position.

(3)Bending unit:

CNC PLC control system,just input a angle on the touch screen, it can be bending automatically.Angle bending accuracy: +/- 1°

double worktable.ensures three unit can real working at the same time.

Jinan Shuohao Machinery Co., Ltd is factory specializing in design,manufacture,train for transformer making equipment .Main products include transformer coil winding machine,foil winding machine,busbar bending cutting punching machine,silicon core assembly table,amorphous core and coil assembly table,insulation paper folding machine,corrugated paper making machine,core coil reshaping machine.

Those products has been exported to Thailand,France,Vietnam,Myanmar,Pakistan,Australia,

Turkey,India,Russia and so on.Has more than 20 patents,Certificate of CE,ISO9001:2008

To satisfy customer after sales service,professional team responsible for training,guarantee customer products quality.Welcome old and new customer visit our factory.

1. Are you factory or trading company?

We are factory.

2. What about your payment terms?

Payment terms can be TT,Irrevocable LC,Western Union

3. what can you do if my machine has problem?

Our engineer will respond on line immediately to provide solution for your problem.

New parts will be sent to you by International express like DHL,FedEx for free immediately in warranty time.

If these parts can be bought in your local place,we will bear all cost.
