Home > Products > engineering driller > QZ-1A Two-phase Electric Core Drill / Classic Exploration Rig

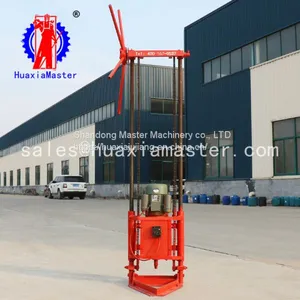

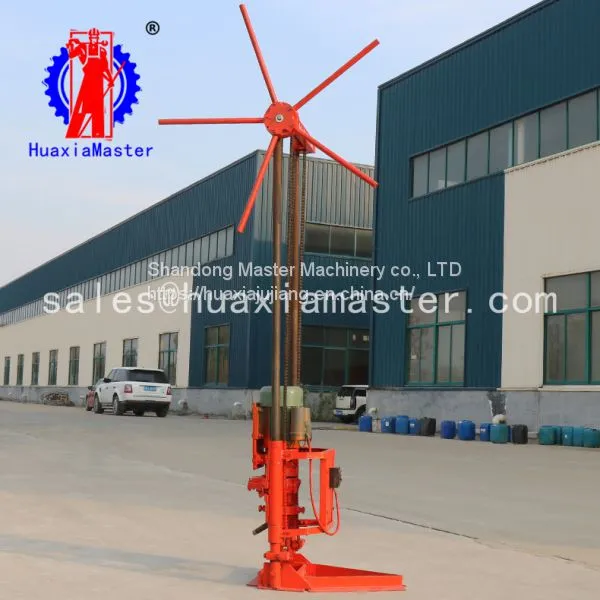

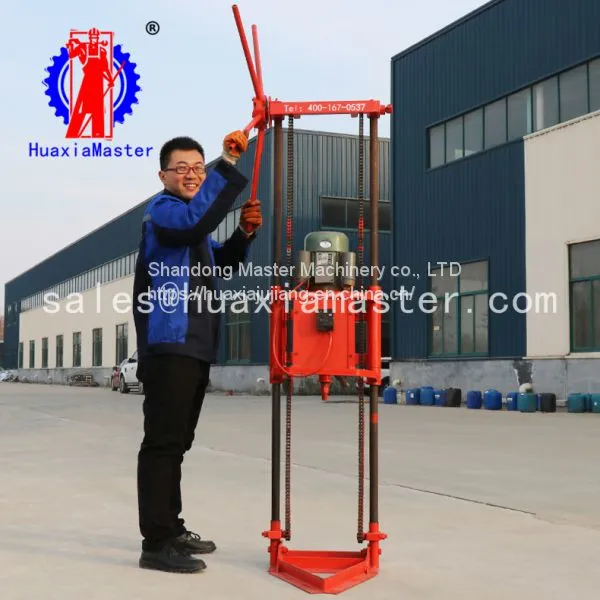

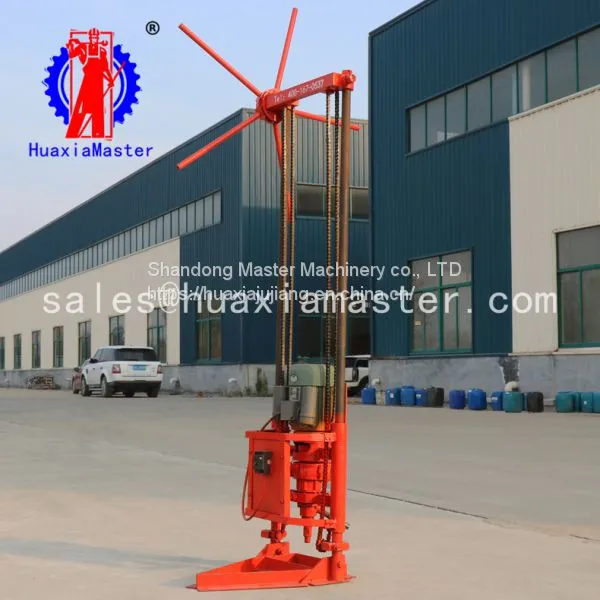

QZ-1A Two-phase Electric Core Drill / Classic Exploration Rig
- Qingdao
- T/T L/C
- 10 days
You May Like
-
HuaxiaMaster QZ-2A Three Phase Electric Sampling Drilling Rig / Small Exploration Rig
-
QZ-2B Gasoline Sampling Rig / Portable Rock Core Drilling Machine
-
Huaxiamaster High Power Cheap QZ-2C Borehole Machine for Sale
-
Portable Gasoline Exploration Rig QZ-2CS / The Hoist Type Coring Drill Equipment
-
Supplies Portable Core Drill QZ-2D / Electric Exploration Rig
-
Portable Core Drilling Rig QZ-2DS / Rotary Type Geological Drilling Equipment on Sale
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | QZ-1A | Type | Core Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 6 Months | Weight | 80kg | |
| Dimension(L*W*H) | 600*450*1900mm | Power Type | Electric | |
| Voltage | 220v | Usage | Coal | |
| Condition | New | Power(W) | electric engine |
Product Description
1.The brief introduction of QZ-1A type two phase electric sampling drill rig
QZ-1A type electric two-phase sampling drilling rig is a kind of portable core sampling drilling rig produced by Shandong Master Machinery Group Co., Ltd, it is suitable for kinds of geological exploration like industrial and civil buildings, bridges, railways, roads and so on.QZ-1A core sample drilling rig is only 80kg,height is less than 2 meters, and the drilling rig can been break down structure, so easy to move
2.The technical parameter of QZ-1A two phase electric sampling drill
QZ-1A two phase electric sampling drill | |
Borehole diameter (mm) | 32-46 |
Borehole depth(m) | layer 20-25m/rock1 5-20m |
Drill pipe diameter (mm) | 25 |
Speed(r/min) | 175 |
Torque(n.m) | 80 |
Two phase electromotor (kw) | 1.5 |
Shape size(l*w*h) | 600*450*1900 |
Drill weight(kg) | 80 |

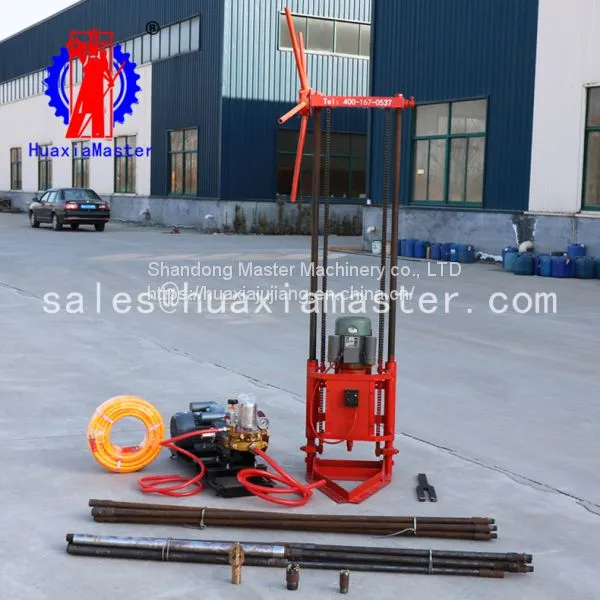

3.The packing list of QZ-1A two phase electric sampling drill
Name | Model | Unit | Quantity |
Two phase electric sampling drill | QZ-1A | platform | 1 |
Drill pipe | 25*1500 | root | 6 |
Drill pipe | 25*800 | root | 8 |
Lock the hand | 32 | pcs | 14 |
Core tube | 32*800 | root | 1 |
Alloy bit | 32 | pcs | 1 |
Head | 45/32 | pcs | 1 |
Core tube | 45*800 | root | 1 |
Alloy bit | 46 | pcs | 1 |
Scavenging bit | 60 | pcs | 1 |
UL-fork | hold | 1 | |
Water seal type | Y 30*45*8 | pcs | 4 |
Driving wheel | platform | 1 |
