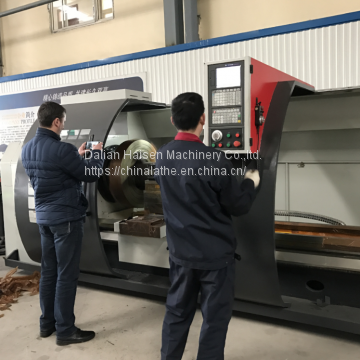

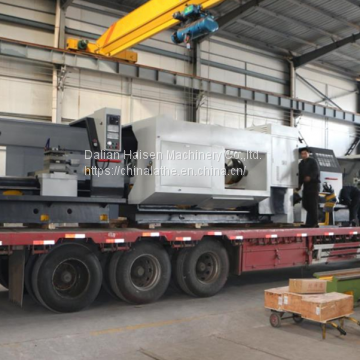

QK1319 China Machining Precision IT6-IT7 CNC Pipe Threading Lathe Machine Manufacturer
US$ 33000 - 51600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
QK1319 Pipe threading CNC Lathe
Place of Origin:
China
Model Number:
MT5
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
CK5116Made in China Exported to UK, Iran, Russia, Brazil, Dubai Numerical Control Half Cover One Column VTL Machine Tool PriceUS$ 65000 - 75000MOQ: 1 Set -
CK6150 China CNC Lathe MachinesUS$ 12100 - 24200MOQ: 1 Unit
-
SH325-2 32mm 5 Axis China CE Certificate With Korea Technology Professional Spindle Box Moving CNC Swiss Automatic LatheUS$ 64000 - 87000MOQ: 1 Set
-
MLH850 Vertical Machining CentersUS$ 30000 - 60000MOQ: 1 Set
-
QK1343 CNC Lathe CNC Pipe Threading Lathe Machine With CE/ISONegotiableMOQ: 1
Brand Name
QK1319 Pipe threading CNC Lathe
Place of Origin
China
Model Number
MT5
Type
Horizontal
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
4600
Dimension(L*W*H)
3700*1755*1800
Condition
New
Power(W)
11
Automatic Grade
Automatic
CNC or Not
CNC
Max. Swing Diameter
630
| Item | Unit | QK1313 | QK1319 | QK1322 | QK1327 | QK1330 | QK1335 | QK1343 | |
| CNC System | FANUC 0i Mate TD | ||||||||
| Max swing over bed | mm | 630 | 630 | 670 | 800 | 800 | 1000 | 1000 | |
| Max swing over cross slide | mm | 340 | 340 | 380 | 480 | 480 | 610 | 610 | |
| Distance between centers | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1000/1500 | 1000/1500 | |
| Width of bed | mm | 550 | 550 | 550 | 600/755 | 600/755 | 755 | 755 | |
| Spindle bore | mm | 135 | 200 | 225 | 280 | 305 | 360 | 440 | |
| Power of spindle motor | Kw | 11 | 11 | 11 | 15 | 15 | 22 | 22 | |
| Mode of spindle speed | Two gears variable frequency, | ||||||||
| stepless speed regulation | |||||||||
| Range of spindle speed | r/min | Low:0-130 | Low:25-120 | Low:20-100 | Low:30-130 | Low:23-120 | |||
| High:130-800 | High:100-500 | High:100-300 | High:65-260 | High:65-258 | |||||
| Max X/Z axis travel | mm | X: 350 | X: 350 | X: 350 | X:450/550 | X:450/550 | X:550 | X:550 | |
| Z:1250 | Z:1250 | Z:1250 | Z:1250 | Z:1250 | Z:1250 | Z:1250 | |||
| X/Z rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
| X-axis motor | Speed | r/min | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Torque | N.m | 10 | 10 | 10 | 15/18 | 15/18 | 18 | 18 | |
| Power | Kw | 1.5 | 1.5 | 1.5 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Speed | r/min | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Z-axis motor | Torque | N.m | 15 | 15 | 15 | 18/22 | 18/22 | 22 | 22 |
| Power | Kw | 2.3 | 2.3 | 2.3 | 3.8 | 3.8 | 3.5 | 3.5 | |
| Tailstock quill | Diameter | mm | 100 | 100 | 100 | 100 | 100 | 140 | 140 |
| Travel | mm | 250 | 250 | 250 | 250/300 | 250/300 | 300 | 300 | |
| Taper | Morse NO.5 | Morse NO.5 | Morse NO.5 | Morse NO.6 | Morse NO.6 | Morse NO.6 | Morse NO.6 | ||
| Electric tool-post | Model | LDB4-6163A | LDB4-6163A | LDB4-6180 | LDB4-6180 | LDB4-6180 | SLD170A04N | SLD170A04N | |
| No. of tool stations | Vertical four-station | ||||||||
| Dimension | mm | 240×240 | 240×240 | 280×280 | 280×280 | 280×280 | 300×300 | 300×300 | |
| Changing tool time | S | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 5.6 | 5.6 | |
| Chuck | K11-380 three jaw chuck | K11-500 three jaw chuck | K11-630 three jaw chuck | K66-850 four jaw electric chuck | K66-1000 four jaw electric chuck | ||||
| Positioning accuracy | mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | |
| Repositioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | |
| Overall dimensions(L*W*H) | mm | 3657×1755×1880 | 4600×2060/2100×2100 | 5000×2100×2100 | |||||
| Machine weight | T | 4 | 4.2 | 4.6 | 7/9 | 7.5/9.5 | 12 | 13 | |
