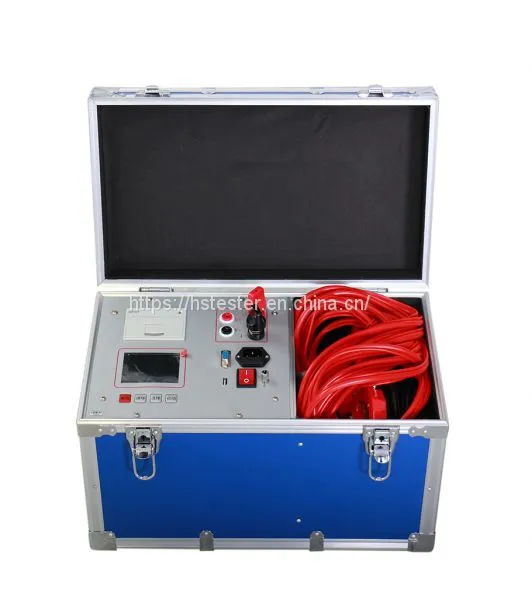

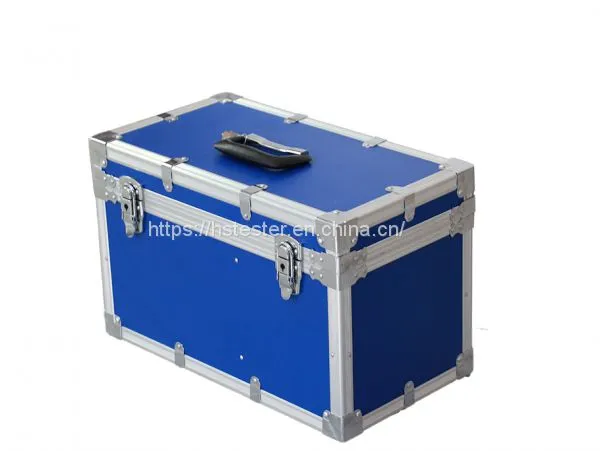

100A Loop Resistance meter contact resistance tester
The instrument uses high-frequency high-power constant-current switching power supply technology, which can measure the micro-ohm contact resistance. Widely used in the measurement of contact resistance, loop resistance, cable and wire and weld contact resistance of various switches and electrical appliances.
Specification
1) Test Current: HSHL3100 (50A ,100A)
HSHL3200 (50A, 100A, 150A, 200A)
2) Range: HSHL3100 (0~100mΩ(50A) 0~50mΩ(100A) )
HSHL3200 (0 ~100mΩ (50A) 0 ~50mΩ (100A)
0 ~20mΩ (150A) 0 ~ 20mΩ (200A)
3) Resolution: minimum 0.1μΩ
4) Accuracy: ± (0.5% ± 2 words)
5) Power: 1000W
6) Working method: continuous measurement
7) Working power supply: AC220V±10% 50HZ
8) Operating temperature: 0~40°C
9) Relative humidity: less than or equal to 90% no condensation 17) Dimensions: 355*275*147
10) Weight: 9.5KG
Contact us at 86 18191654119
