High Quality Semi Automatic Sperm Quality Analyzer

                             High Quality Semi Automatic Sperm Quality Analyzer

Application Scope

Suitable for clinical semen testing, the main test items are: sperm count, density, viability, vitality, etc., can analyze up to 63 test results.

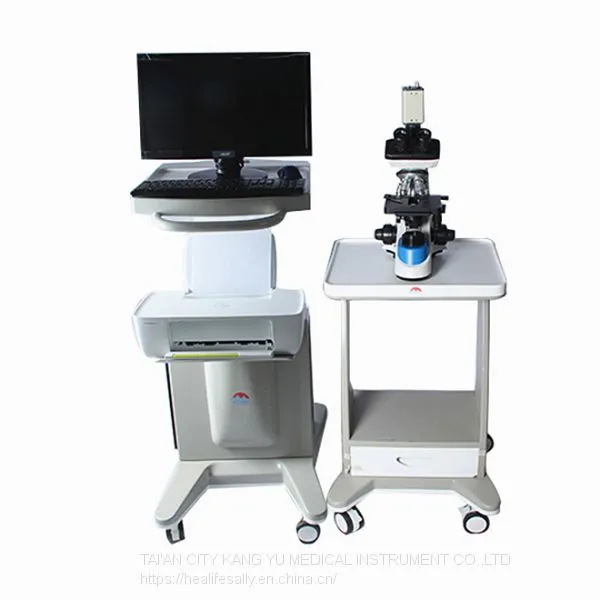

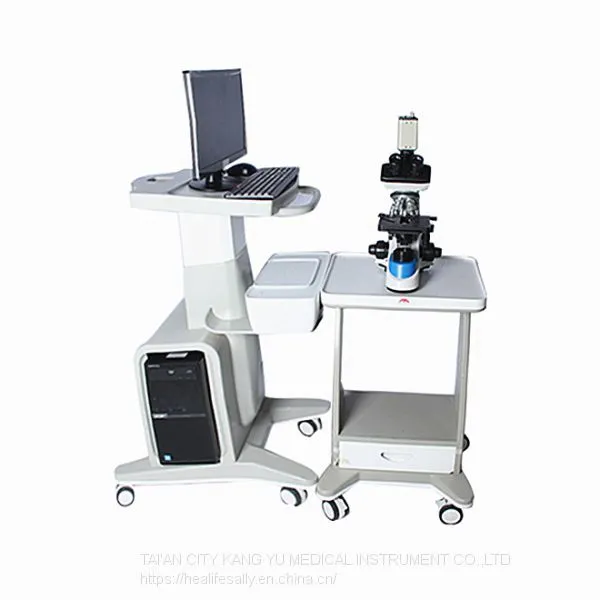

Composition

Computer system,WHO fifth edition software,video image acquisition card,

high-definition microscope, CCD high-definition electronic camera system, printer and counting board.

2. Testing standard: the latest WHO fifth edition, and can be compatible with the fourth edition software, and we have with independent intellectual property rights copyright certificate.

3. Detection speed range: 0-180μm/s or more wider.

4. Quantity of sperm being tested: 1000 or more

5. Testing visual field groups: 1-30 groups can be chosen

6. Identifiable particle diameter: 1-10μm or longer

7. HD microscope: trinocular and four hole microscope, detailed parameters are as below.

8. Acquisition and analysis time for per field of view: <10 seconds

9. Acquisition card: dedicated hard card OK2.0 image acquisition card

10. Image acquisition number: 1-100 frames or more

11. Computer test items: ≥ 30 items

12. Motion track: has a description of the motion track, and can play back the motion track.

13. Impurity treatment: remove the impurities by manual before automatic test and analysis.

14. Special sample processing: special treatment for dead sperm and azoless samples

15. Storage and printing:testing results can be stored and printed automatically, 5 report templates to choose, database maintenance functions, color printing sperm trajectory and histogram.

16. Computers and other major hardware configurations:

Computer system: Host, display, keyboard, mouse, etc.

Printer: color inkjet printer

Video acquisition card: OK card 4.98 hard card

17.700 line HD color CCD camera system

18. Microscope (trinocular and four hole) Technical parameters

Magnification: 40X-100X

Viewing head: 45 degree tilt, translational trinocular viewing head, double vision can be adjusted; the distance is 55X75mm.

Eyepiece: Large field view eyepiece WF10X18mm

Objective lens: Achromatic objective lens 10X/0.25, 20X/0.40, 40X0.65 (spring), 100X1.25 (spring, oil).

Focusing mechanism: Coaxial coarse and fine focusing mechanism, elastic adjustable,has coarse adjustment for any limit mechanism to avoid damage to the objective lens and lens. The upper and lower stroke of the object stage is 22 mm and the vernier lattice value is 0.002 mm.

Objective lens converter: four-hole conversion mechanism.

Object stage: Double-layer movable platform 140X135 mm, moving range 50X75 mm.

Condenser: abbe condenser NA1.25 variable optical column and color filter, rack adjustment mechanism can be adjusted up and down.

Lighting system: Built-in lighting system halogen 6V20W 220V/50Hz light intensity continuously adjustable.

19. Sperm counting board: special counting board for sperm analyzer
