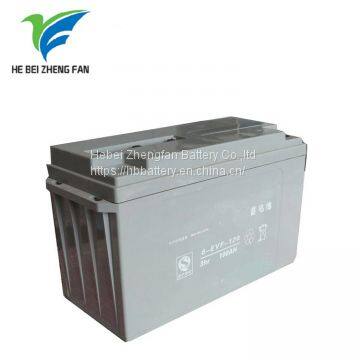

Help Center6-EV-120 Electric Car Battery 12v 120ah Lead Acid Battery
Related Products
-
12v 12ah 20hr Gel Battery, Vrla Battery 12ah Solar Battery Rechargeable for Security , 12ah Solar Light BatteryNegotiableMOQ: 100 Pieces -
12v 7ah 20hr Gel Battery, Vrla Battery 7ah Solar Battery Rechargeable for Security ,7ah Solar Light BatteryNegotiableMOQ: 100 Pieces
-
6-GF-120 12v 120ah Lead Acid Battery Solar Panel Battery Vrla Solar System BatteryNegotiableMOQ: 100 Pieces
-
Sealed 12v 24ah 20hr Lead Acid Battery, Vrla Security Battery 24ah Solar Battery Rechargeable Traffic Light BatteryNegotiableMOQ: 100 Pieces
-
Sealed 12v 55ah 20hr Lead Acid Battery, Vrla Security Battery 55ah Solar Battery Rechargeable Traffic Light BatteryNegotiableMOQ: 100 Pieces
Application
♦ Solar power system (off-grid solar power system, solar street light system)
♦ Wind power system
♦ UPS and computer backup power
♦ Generators
♦ Telecommunication system
♦ Electric power station system(EPS)
♦ Railway system
♦ Auto control system
♦ Emergency lighting system
♦ Aircraft signal
♦ Alarm and security system
♦ Electric apparatus and equipment
♦ DC power supply
♦ Golf and electric vehicles
♦ Electric tool and toy
Key Features
♦ Large capacity, high power density
♦ Excellent performance under low temperature
♦ Good stability: using the structure of silver plating copper core, that is benefits to improve the stability of large-current discharging.
♦ Safe and reliable: Adopted with the unique design relief value, using time durable and stability, safety performance with battery placed at any direction.

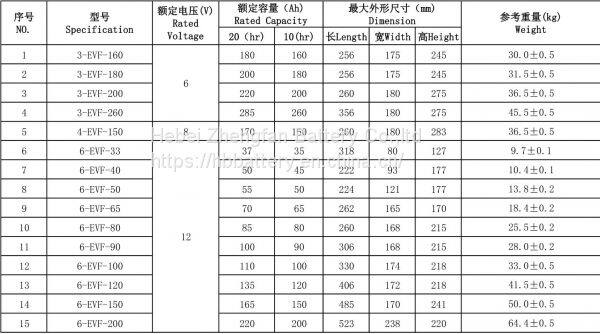

| lead-acid EV battery | golf cart battery sightseeing car battery e-rickshaw battery | ||||||||
| Specification | Rated volt (V) | Rated capacity (Ah) | Size (Mm) | Weight (Kg) | |||||
| 20(hr) | 10(hr) | 5(hr) | 3(hr) | Length | Width | Height | |||
| 3-DG-180(3-EV-160) | 6 | 210 | 200 | 180 | 160 | 260 | 182 | 282 | 28.5 |
| 3-DG-200(3-EV-175) | 230 | 210 | 200 | 175 | 260 | 182 | 282 | 31.5 | |
| 3-DG-210(3-EV-180) | 240 | 220 | 210 | 180 | 260 | 182 | 303 | 32.5 | |
| 3-DG-230(3-EV-190) | 260 | 245 | 230 | 190 | 260 | 182 | 303 | 34 | |
| 3-DG-190(3-EV-170) | 220 | 205 | 190 | 170 | 245 | 190 | 282 | 30.5 | |
| 3-DG-220(3-EV-185) | 250 | 225 | 220 | 185 | 245 | 190 | 310 | 33 | |
| 3-DG-240(3-EV–200) | 270 | 250 | 240 | 200 | 245 | 190 | 310 | 35 | |
| 3-DG-260 | 280 | 260 | 230 | 200 | 360 | 172 | 275 | 34.5 | |
| 4-DG-140(4-EV-120) | 8 | 280 | 260 | 140 | 120 | 260 | 182 | 289 | 30.5 |
| 6-DG-75 | 12v | 75 | 65 | 60 | 50 | 350 | 175 | 210 | 24 |
| 6-DG-120 | 120 | 100 | 90 | 80 | 360 | 172 | 270 | 31.5 | |
| 6-DG-130 | 130 | 110 | 100 | 85 | 360 | 172 | 270 | 33 | |
| 6-DG-140 | 140 | 130 | 120 | 100 | 360 | 172 | 270 | 36 | |
| 6-DG-160 | 150 | 140 | 130 | 105 | 360 | 172 | 270 | 39 | |
| 6-DG-180 | 180 | 160 | 140 | 120 | 328 | 182 | 295 | 41.5 | |
Precautions
♦ Always handle batteries with care.
♦ Always store upright.
♦ Never over-fill with acid.
♦ Always charge in a well ventilated place.
♦ Always wear eye protection when handling batteries.
♦ Wear protective clothing if there is any rick of acid splashing.
Danger
♦ Do not use at the places near fire. Hydrogen gas generated from battery may cause fire and explosion.
♦ This 12v battery is only for starting engine. Do not apply for other uses.
♦ Keep out of the reach of children or the personnel who do not understand the manual. It may cause blindness or severe burn.
♦ When using the battery, wear safety glasses and rubber gloves.Sulfuric acid may cause blindness or severe burn.
Warning
♦ Replacement of battery shall be performed as per following order. If failed, it may cause fire and explosion. Remove cable from negative terminal first.Connect cable to negative terminal last.
♦ When connect cable to battery, make sure not to get changed post of +and -. It may cause the damage of electronic components or fire.
♦ When ueing the battery ,handle with care,sulfuric acid may cause blindness or severe burn.
Caution
♦ When moving battery, be careful not to drop the battery , which is heavy, Do not shake the battery with handle, if there is the handle, It may cause the injury.
♦ Do not shore the battery at the following places. High temperature and humidity. Being exposed to rain,snow, direct sunshine.
