Help Centerac Slip Ring Motor 38.1mm Hole Dia Transmitting 5A OD 99mm
Related Products
-
Hollow Slip Ring Inner Diameter 12.7mm Outer Diameter 55mm Conductive Slip Ring Rotary Conductive DeviceUS$ 20 - 120MOQ: 1 Piece -
Hollow Slip Ring ID 25.4mm OD 78mm Conductive Slip Ring Rotary Conductive Device SlipringsUS$ 20 - 120MOQ: 1 Piece
-
Conductive Capsule Slip Rings OD 22mm 24 Circiuts for Signal TransmissionUS$ 1 - 100MOQ: 1 Piece
-
Conductive Capsule Slip Rings OD 22mm 6circiuts for Signal TransmissionUS$ 3 - 100MOQ: 1 Piece
-
Conductive Capsule Slip Rings OD 22mm 12 Circiuts for Signal TransmissionUS$ 1 - 100MOQ: 1 Piece
JNR-B slip rings are through-hole slip rings (the center hole can pass through the drive shaft, gas liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). Using advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.
The JNR-B038-6S through bore slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
RF Rotary Slip Ring Features
6 circuits models
Precious metal contacts
5 amps rings
Precision ball bearings for long life
Speed up to 300 rpm continuous
Compact size
Sealed units available
Low torque minimizes system torque budget
Rapid delivery
RF Rotary Slip Ring Specification
| Circuits | 6 |
| Current Rating | 5A |
| Voltage | 380VAC |
| Dielectric Strength | ≥1000V@50Hz between circuits |
| Insulation | 500MΩ@500VDC |
| Electrical Noise | ≤70mΩ |
| Hole Diameter | 12.7mm |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Aluminum alloy |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Quick Detail:
| Model Number: | JNR-B38 | Current Rating: | 5A、10A/Ring maximum |

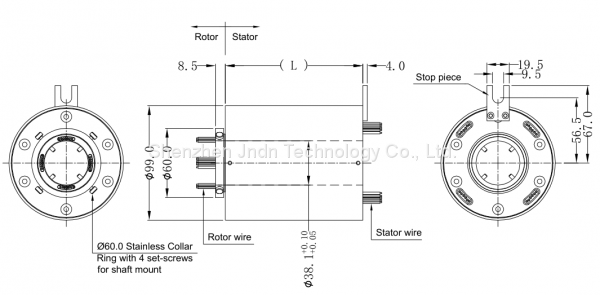

| Outer Size: | ID 38.1mm OD 99mm | Circuits: | 6,12,18,24 |
| Volt AC/DC(V): | mV~380Vac/Vdc | Contact Material: | Gold-Gold contacts |
| Speed(rpm): | 250RPM | Lead Wire: | UL Teflon Awg22,color-coded, |
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Detail: | Sample 3 days / Order depends on quantity |
Description:
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units,It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The JNR-C series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The C6, with 6 wires and compact 21.8mm body diameter, which we call our mini slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings.
Benefits:
· Smoother running.
· Higher design precision
· Lower electrical noise.
· Lower torque, lower contact resistance
· Rapid delivery
Specifications:
| Operating Speed | 0-300 rpm |
| Number of Circuits | 6 , 12 , 18 , 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 2A per circuit |
| Temperature Range | -20°Cto +60°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩMin |
Applications:
CCTV Monitoring System. Electrical test equipment. Medical equipment. Rotary table Robotics Laboratory equipment Manufacturing and process control equipment
Why to choose JNDN slip ring?
JNDN Company is a professional slip ring manufacturer in Shenzhen, China. JNDN has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 2001, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 18years' experience in the field, JNDN has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JNDN Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 18 years of experience JNDN has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
