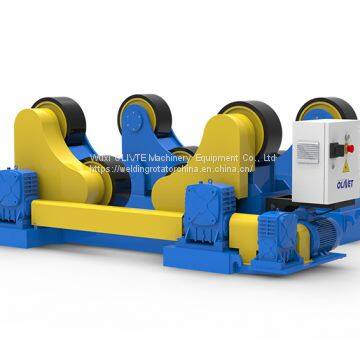

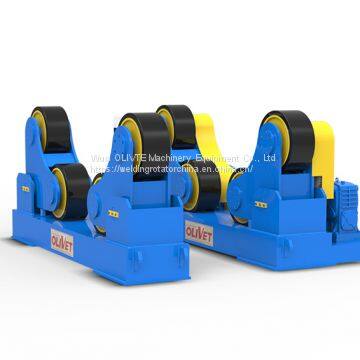

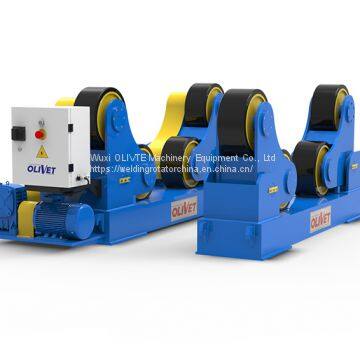

Self Aligning Rotator-HGZ Series Double Driving Self Aligning Rotator Self-aligning Welding Rotator
Stable Rotating Process
The HGZ series has one drive unit which arrange of a continuous rotation with frequency convension stepless speed controlling. The 4 rollers joint align themselves via the diameter of the workpiece.
Welding Rotator Features
A. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.
B. Welded, robust steel construction.
C. Adjustable rotating speed.
D. Automatically matching different diameter of workpiecec
E. Unit equipped with 4 rollers each.
Scope of Delivery
A. 1 Power and 1 Idler turning rolls
B. 1 Electric control system
1 control panel
1 remote pendant
Self-aligning Welding Rotator Main Technical Parameters
Model | Max. load | Pipe dia. | Roller material | Roller dia. | Roller width | Rolling speed | motor |
HGZ-5 | 5,000kg | Ø250-Ø2,500mm | Steel coated with PU | Ø250mm | 100mm | 6-60m/h | 0.75kw |
HGZ-10 | 10,000kg | Ø320-Ø3,200mm | Steel coated with PU | Ø300mm | 120mm | 6-60m/h | 1.1kw |
HGZ-20 | 20,000kg | Ø500-Ø3,800mm | Steel coated with PU | Ø350mm | 150mm | 6-60m/h | 1.5kw |
HGZ-30 | 30,000kg | Ø550-Ø4,000mm | Steel coated with PU | Ø350mm | 160mm | 6-60m/h | 2.2kw |
HGZ-40 | 40,000kg | Ø500-Ø5,000mm | Steel coated with PU | Ø400mm | 160mm | 6-60m/h | 3kw |
HGZ-60 | 60,000kg | Ø750-Ø5,000mm | Steel coated with PU | Ø450mm | 180mm | 6-60m/h | 4kw |
HGZ-80 | 80,000kg | Ø850-Ø5,500mm | Steel coated with PU | Ø450mm | 240mm | 6-60m/h | 2×3kw |
HGZ-100 | 100,000kg | Ø1,000-Ø6,300mm | Steel coated with PU | Ø500mm | 240mm | 6-60m/h | 2×3kw |
Wuxi OLIVTE Machinery Equipment Co., Ltd., which professional in welding equipment,rotator, welding positioner, welding manipulator .
If you are interested in our products, please click here.
/
