Lab Biochemistry Analyzer Machine Automatic Chemistry Analyzer

Test speed

200 tests / hour

Test methods

End point method, kinetic method, two-point method, etc. Unlimited test, emergency priority

Spectroscopic method

Point Facula optical fiber transmission spectral and fully enclosed photoelectric detection system, free from mold and maintenance

Cleaning method

Fully automatic 7*15-step cleaning, more thorough cleaning, eliminate cross-contamination. Optional acid-base cleaning solution cleaning, or warm water cleaning system

Test wavelength

340nm ~ 630nm, standard 6 wavelength, expandable and optional

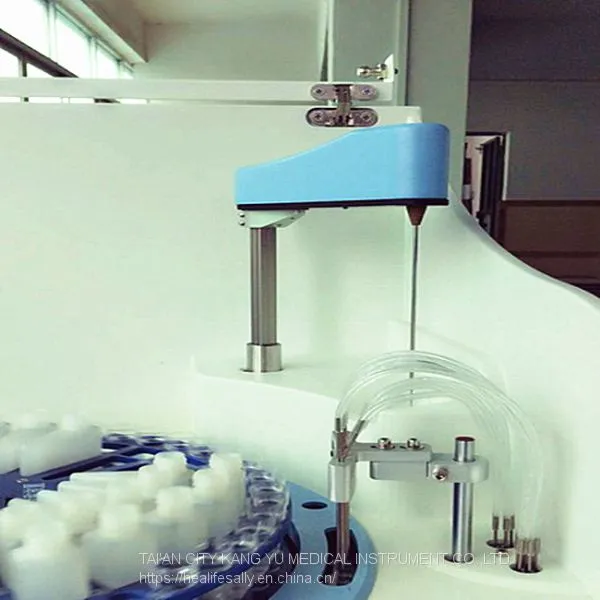

Sampling needle

Imported nano polishing sample needle,support liquid level sensing,amount tracking and full anti-collision function

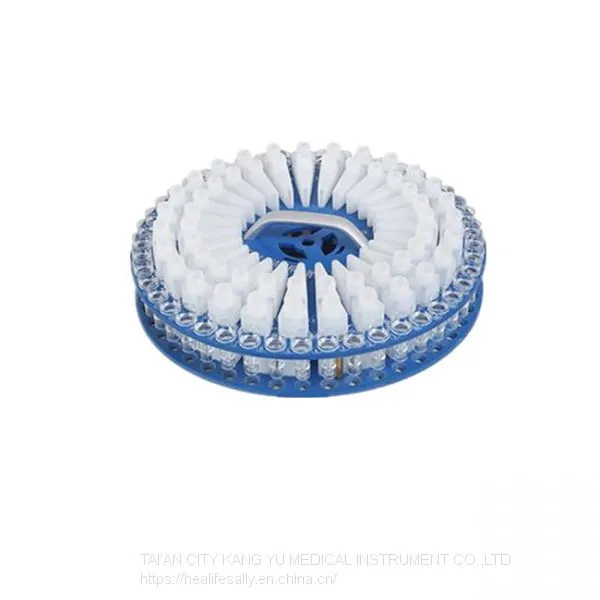

Reagent disk

54 reagent positions, can support 54 samples at the same time, expandable

Sample disk

45 sample positions, expandable

Reaction disk

Solid constant temperature,fully enclosed and direct heating, precise temperature control and maintenance-free;

135 recycle reaction cup, fully automatic cleaning, minimum reaction volume is 140ul

Reagent volume

20-400μL,increasing by 1μL

Sample volume

2-40μL,increasing by 0.1μL

Stir rod

None

Light source

Tungsten halogen lamp, 12V, lifetime > 2000 hours, can detect the light intensity automatically

Absorbance range

0-4.0Abs,resolution 0.0001Abs

Calibration type

Single/multi-point linear, Logit, Spline and other calibration methods

Quality control type

L-J, Cumulative, Twin Plot and other rules and quality control charts

Water Consumption

Less than 4 liters / hour

Operating system

Windows 7 /8, Windows XP and other full range of Windows operating systems

Data storage

Automatic storage and backup, and permanent store the various types data

Print format

Print format is customizable and offers several common formats

Power supply

100-240V，50Hz/60Hz；

Size

566mm×559 mm×601 mm（length×width×height）
