40*40*10mm DC Cooling Fan/Water Cooler Fan/Industrial Cooling Fans

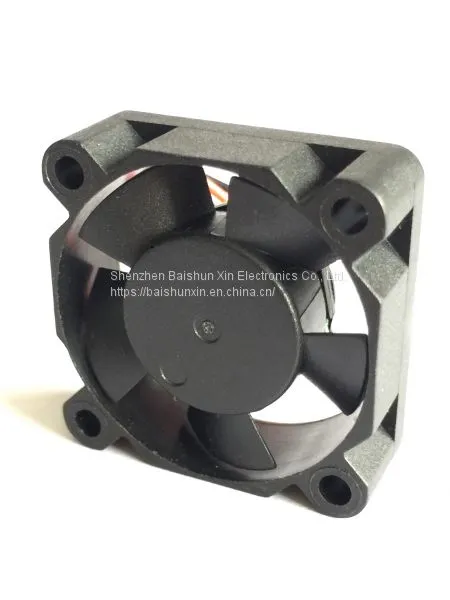

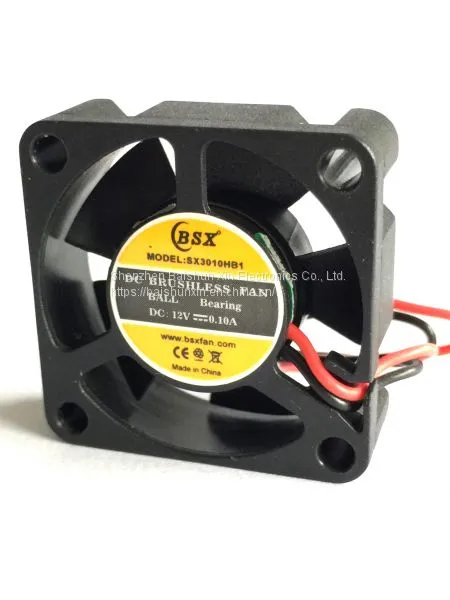

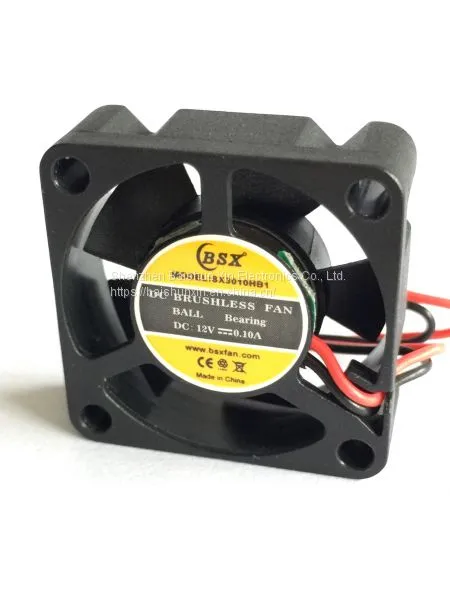

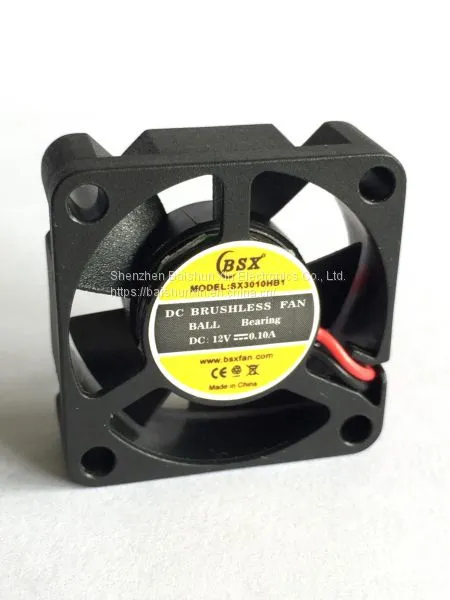

SX3010 Cooling Fan

... ~ Model: BSX-SX3010HB1

... ~ Waterproof grade: IP55, IP68 waterproof grade

... ~ Brand: BAISHUNXIN

... ~ Manufacturer: Baishun Xin Co., Ltd.

... ~ Bearing structure: imported double ball bearing (NMB bearing)

... ~ Ball bearing life: - 20 degrees to 65 degrees ambient temperature use, life can reach: 60,000 hours

... ~ Fan size: 30*30*10mm

... ~ Working Voltage: DC 5V DC12V DC 24V DC 48V (customizable: DC 5V-110V working voltage supply)

... ~ Fan speed: 2400/15000 RPM

... ~ Fan structure: axial flow fan

... ~Fan blade rotation: the fan blade operates counter clockwise

... ~ Fan Frame Material: PBT+30% Glass Fiber+FR

... ~ Fan material: PBT + 30% glass fiber + FR

... ~ Fan operating temperature range: - 25 - 75 degrees

... ~ Insulation Resistance: Over 500M Euro

... ~ Fan features: lower noise, quieter, longer life, larger air volume

... ~ Fan performance: low noise, low power consumption, large air volume, long life, high reliability

... ~ Types of fan signal: RD signal, FG signal and PWM signal

... ~ Fan waterproofing: Provide moisture-proof treatment, and IP55, IP68 waterproofing function

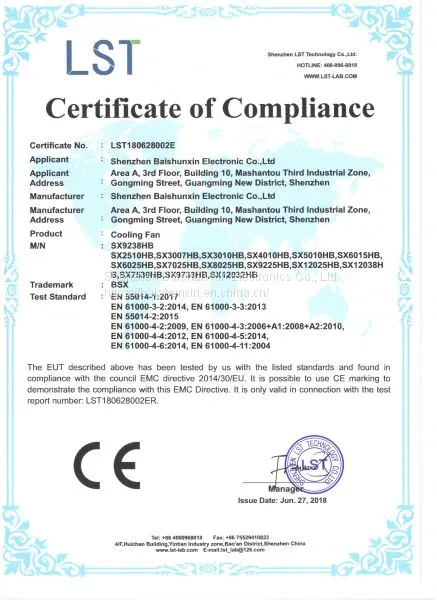

... ~ Fan Certification: CE ROHS FC

... ~ Product Packaging: Special Carton Packaging

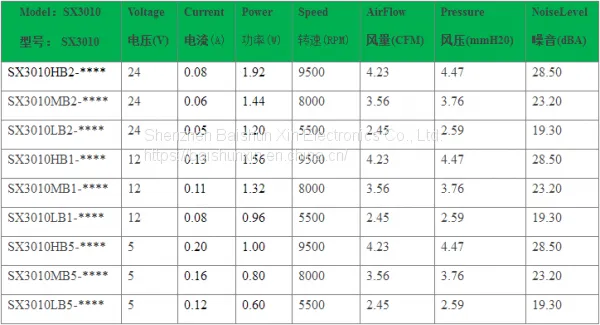

Table of parameters: All products in our shop are more preferential because of the rising price of raw materials. Prices and attributes are for reference only. The following parameters are only part of the parameters, if you need other parameters, please contact our sales!

SX3010 cooling fan performance, use, packaging instructions, quality control:

Performance: SX3010HB1 fan designed and manufactured by our company adopts high precision injection mould to ensure the high precision of the product, making the fan quieter, longer life, larger air volume and more reliable. At the same time, the fan motor is filled with motor components, and the IP68 class waterproof fan can corrode the environment under water with salt, alkali, oil and dirt. Years of work, the use of international bearings, Japan NMB, to ensure that fans can work reliably for a long time, fans designed overpressure and overcurrent protection.

The blocking function, if the fan blade is blocked by foreign matter in the work, our fan will not be damaged. We added a long time anti-blocking function in the design of the fan control circuit. At the same time, the wire is made of Teflon FEP high temperature resistant wire. Our design really achieves all aspects of three-dimensional waterproof, oil-proof, corrosion-proof and high temperature resistance.

Purpose: For: New Energy, Lighting, Precision Instruments, Electronic Industry, Industrial Equipment, Communication Instruments, Industrial Power Supply, Military Products

Fourth, product quality control: Our company strictly implements the ISO 9001 standard, and strictly carries out the incoming materials, production, inspection, storage and manufacturing process in accordance with the standard. All links can be traced back, problems can be found and dealt with in time, so that customers can truly rest assured and trust.

Fifth, after-sale products: all the fans we produce are made of high-quality raw materials and large-brand components, 7 days of free return of problems, product pledge quality assurance for 5 years.

Baishun Xin Fan Classification:

Axial fan

The blade of an axial fan drives air to flow in the same direction as the axis. The impeller and impeller of an axial fan

The propeller is somewhat similar. When it works, most of the airflow is parallel to the axis, in other words, along the axis. Axial fan has the lowest power consumption when the inlet air flow is 0 static pressure free air, and the power consumption will increase with the increase of the back pressure of the air flow when it is running. Axial fan is usually installed in the cabinet of electrical equipment, and sometimes integrated in the motor. Because of its compact structure, it can save a lot of space and is easy to install, so it has been widely used.

Its characteristics: high flow rate, medium wind pressure

Centrifugal fan

When the centrifugal fan is working, the blade drives the air to flow in the direction (i.e. radial) perpendicular to the axis.

The air intake is along the axis, while the air outlet is perpendicular to the axis. In most cases, the cooling effect can be achieved by using an axial-flow fan. However, sometimes centrifugal fans must be selected if the air flow needs to rotate 90 degrees to discharge or a larger pressure is required. Strictly speaking, fan also belongs to centrifugal fan.

Its characteristics: limited flow rate, high wind pressure

Mixed flow fan

Mixed flow fan is also called diagonal flow fan. At first glance, mixed flow fan and axial flow fan have nothing to do with it.

Similarly, in fact, the mixed-flow fan's intake air is along the axis, but the outlet air is along the diagonal direction of the axis and vertical axis. Because of the conical shape of the blade and cover, the fan has a higher pressure. Compared with the axial fan, the noise of the centrifugal fan is lower under the same size and other comparable performance.

Its characteristics: high current rate and relatively high wind pressure

Tubular fan

Tubular air flow can produce large area of air flow, which is usually used to cool large surfaces of equipment. This kind of wind

The inlet and outlet of the fan are perpendicular to the axis (as shown in the right picture). The tubular fan works with a relatively long barrel impeller. The diameter of the barrel fan blade is relatively large. Because of the large diameter, the lower speed can be used on the basis of guaranteeing the overall air circulation, thus reducing the noise caused by high-speed operation.

Its characteristics: low flow rate, low wind pressure

Brief Introduction to Bearing Structure of Baishun Xin Fan

The common bearings of cooling fan are ball bearing, oil bearing and magnetic bearing.

Ball bearing

Ball Bearing has changed the friction mode of bearings, using rolling friction. There are some steel balls or columns in the middle of the two iron rings and some grease lubrication. This method reduces the friction between bearing surfaces more effectively and improves them more effectively.
