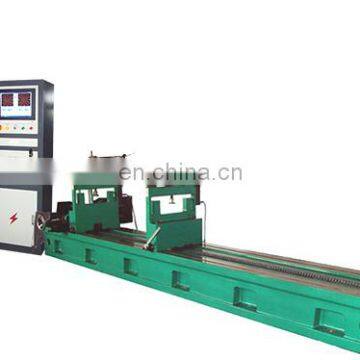

Drive Shaft & Transmission Dynamic Balancing Machine with Windows System

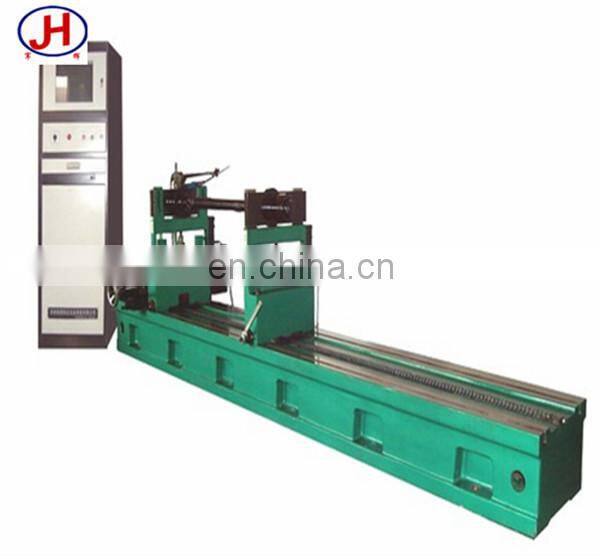

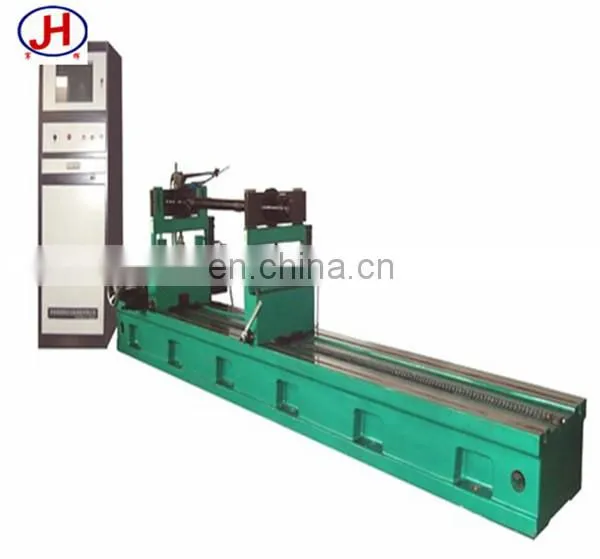

Drive shaft balancing machine (shaft-disk balancing machine) JH-AC500
This series is a hard bearing drive shaft balancing machine that adopts the variable frequency motor for driving, belt for dragging, and two-plane balancing, as well as a RYW (suitable for batch balancing) and YYW (suitable for various work pieces) software for measuring. It is equipped with the industrial personal computer and control cabinet. With simply a change of the clamp used for installing the work pieces, it can conduct the dynamic balancing of all kinds of automobile drive shafts. The system has high test precision, and can be used reliably, economically and practically.
Feature
1.The use of dos system enables the power-off from time to time and high reliability.
2.Equipped with a ZC-A8 automatic micro-computer balance measuring system
3.Automatic programmable amplifier
4.Number of qualified drive shafts display, and measuring period adjustment;
5.Automatic signal amplification and manual amplification and adjustment, signal self-inspection, automatic diagnosis;
6.Simultaneous display of vector speed, unbalance on both the LCD and the nixie tube
7. Cast iron bench
Functional configuration and technical parameters
1.Operating mass range (KG): |
100 |
2.Maximum speed of workpiece |
2300 |
3. Swing frame structure and soft bearing swing frame |
|
4.Balancing speed r/min |
500-3600 automatic speed adjustment |
5.Minimum residual unbalance |
≤8gmm/kg |
6.Unbalance reduction ratio |
≥85% |
7.Motor power |
1.5Kw |
8.Speed adjustment speed |
speed adjustment by variable frequence drive |
9.Drive mode |
Drive by belt |
Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.
We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client’s requirements.
We acquired ISO 9001:2008 and CE certificate.There are Asia,Africa,Europe,Aemerica clients give high evaluation on our machines.
