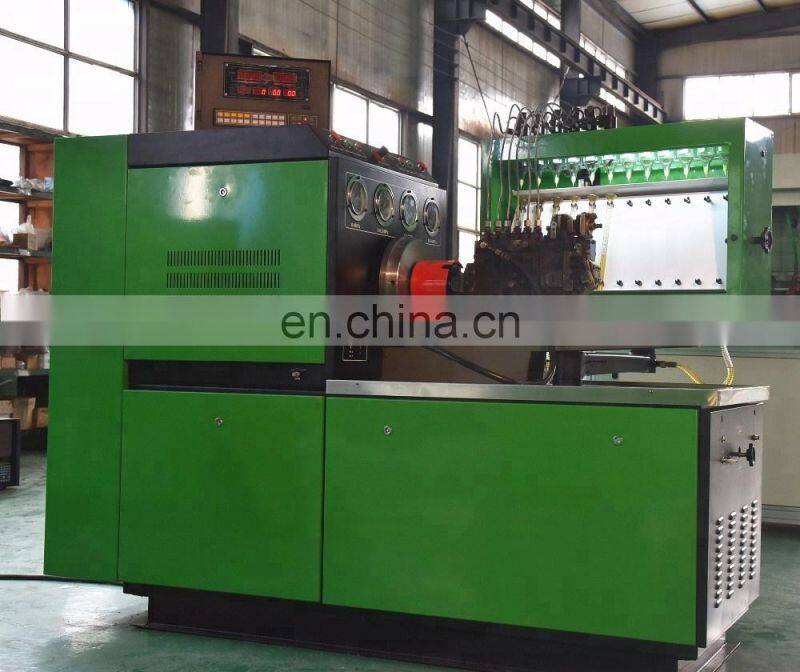

High Quality and Lower Price 12PSB Diesel Fuel Injection Pump Calibration Test Bench

 High Quality 12PSB Diesel Fuel Injection Pump Calibration Test Bench

Characteristics

1.       Variable frequency speed regulation;

2.       Small deceleration and large output torque;

3.       High measurement precision;

4.       Overvoltage protection, overload protection and short-circuit protection;

5.       Ten kinds of rotation speeds presetting;

6.       Constant temperature control;

7.       Ultra-low noise;

8.       Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

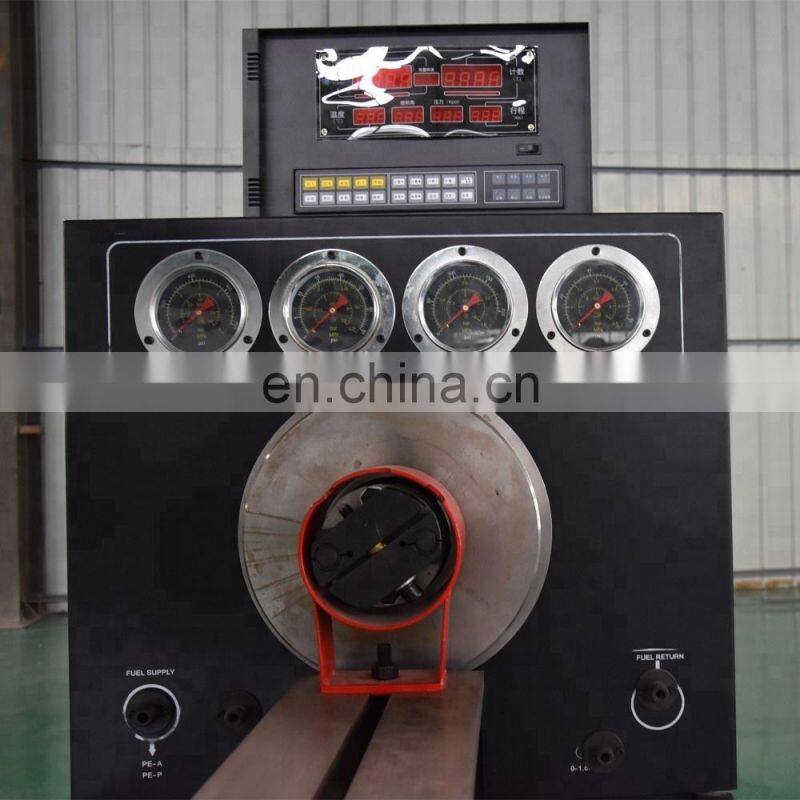

9.       Speed, count, temperature, air pressure, advance angle are displayed on 15-inch LCD;

10.     Built-in air resource.

Function

1.       Measuring each cylinder’s injected oil quantity at various rotation speeds;

2.       Checking each cylinder’s injection time statically;

3.       Checking the mechanical speed governor;

4.       Checking the electromagnetic valve of distribution pumps;

5.       Checking the pneumatic speed governor’s performance;

6.       Checking the pressure compensator’s performance;

7.       Measuring the returned oil quantity of distribution pumps;

8.       Measuring the internal pressure of the distribution pump body;

9.       Checking the pneumatic speed governor’ s vacuum performance;

10.     Measuring rack travel;

11.     Checking the sealing of fuel injection pump body.

Technical Parameters

1.      Adjustable rotation speed range: 0~4000RPM

2.      Double series of graduates: 45cc and 1500cc (optional)

3.      Volume of oil tank: 60L

4.      Temperature stabilization: 40±2℃

5.      Test oil filtering unit: 5μ

6.      DC supply: 12V/24V

7.      Fuel feed pressure: low: 0~0.4MPa; high: 0~4Mpa

8.      Air pressure: 0~0.3MPa,

9.      3-phase power supply: 380V/50Hz or according to requirements

10.    Flywheel inertia’s moment: 0.8KG·M²

11.    Center height:125MM

12.    Output power: 7.5KW, 11KW, 15KW or according to requirements

13.    Overall dimensions(MM): 2360×960×1870 or according to requirements

14.    Net weight(KG): about 900

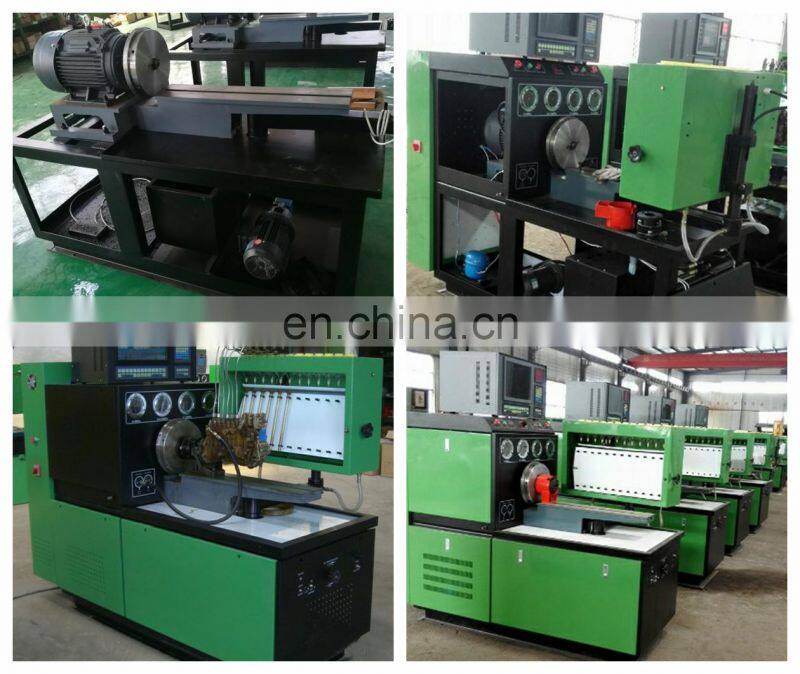

Assemble ⇒ Test ⇒ Complete

Package: Wooden Box ;

Package Dimension(L*W*H)(mm): 2200×1080×1890 ;

Net Weight(Kg): 900 ;

Gross Weight(Kg): 1000 ;

Packed 5 units in one 20ft container ;

Loaded in LCL,FLC and shipping by Cargo Ship.

We  provide high quality products and service. And if the machine has problem, you could contact us at any time,we will help you at our best.

Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.

We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client’s requirements.

We acquired ISO 9001:2015 and CE certificate.There are Asia,Africa,Europe,Aemerica clients give high evaluation on our machines.

Q1:Are you a trader or manufacture?

A1:We are manufacturer

Q2:Can you accept OEM or ODM?

A2:Of course,Logo is also acceptable.

Q3:What is the delivery time?

A3:About 7days after order placed.

Q4:How is the machine packed?

A4:wooden cases which is safe for sea transport and no need to be fumigated.  the machine if it is big and not in regular size, so machine use nude packing with necessary fixing.  If machine is delivered it by LCL, we will pack it with some necessary materials like wrapping film, shockproof film, pallet or wooden frame to secure the safe delivery. In this case, extra packing cost will be charged.


Q5: Which port can we load and deliver the machine?
A5:We have shipping agent in every main port of China, so we can deliver the machine from every port of China to most sea port in the world. We can also quote DDU price for your reference after we have your detailed address information.

Q6:Which is the nearest port and airport to us?

A6:Its Qingdao City

Q7:Which means of transport  we can accept?

A7:1. Sea transport  2. Air transport  3. Courier  4. Train  5. Combined transport

Q8:Special hint for FOB term

A8:The default FOB terms we quote is based on the quotation of our own shipping forwarder, which means that if you ask us to quote FOB price, all the charge is based on quote of our forwarder. So if you want to appoint forwarder in China to organize the delivery for you, please kindly tell us this information in advance, we can check with your forwarder again for the port charges because they always quote a higher charge than we get.

Q9: How will you deliver the spare parts?

A9: If you purchase the parts separately, we usually pack the spare parts by carton or plywood. Parts will be sent by courier like DHL or TNT or FEDEX.

Q10:How long of your warranty terms?

A10:Warranty Terms: 6 months since the date of delivery, water pump is not subject to this term.
