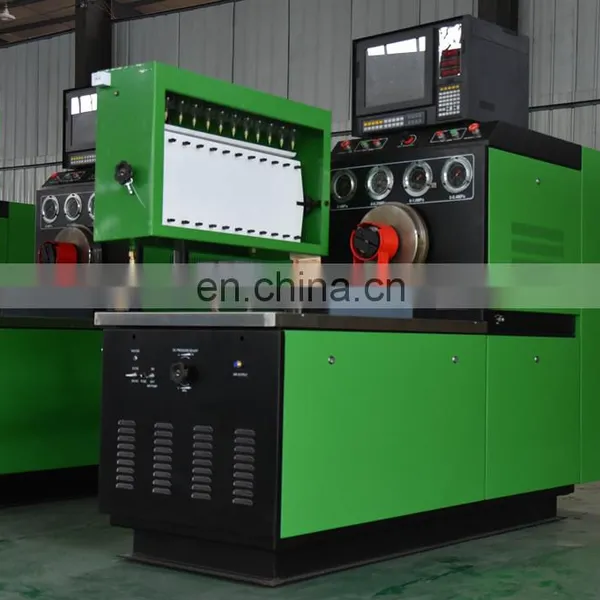

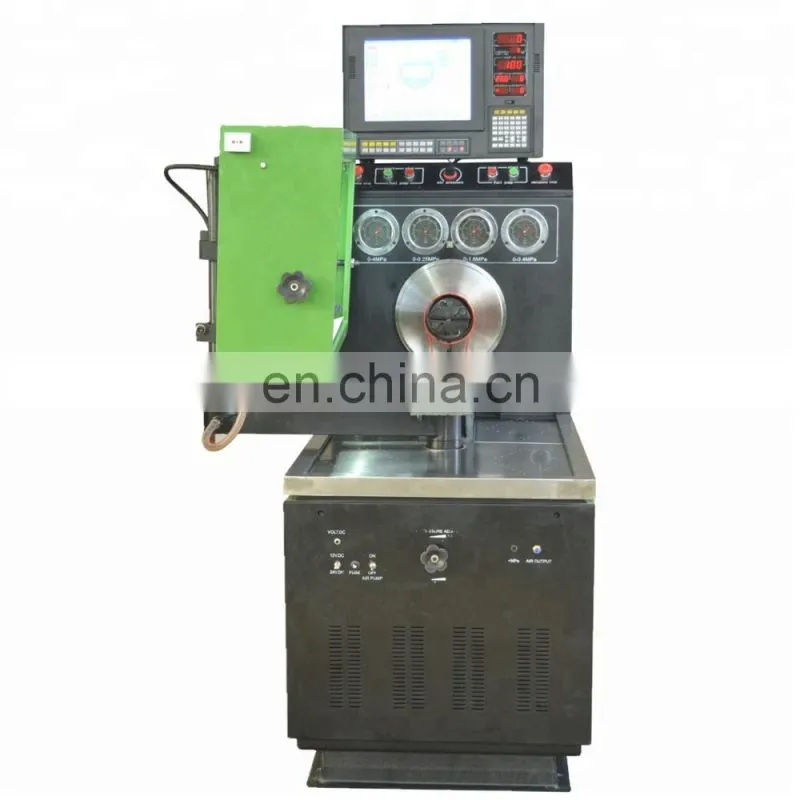

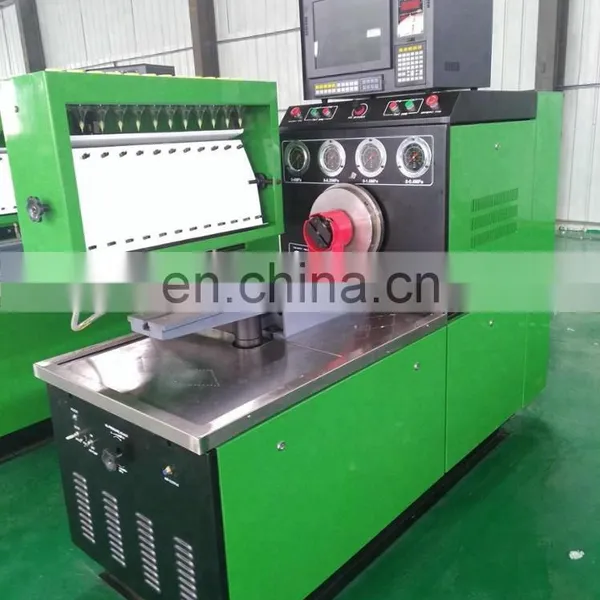

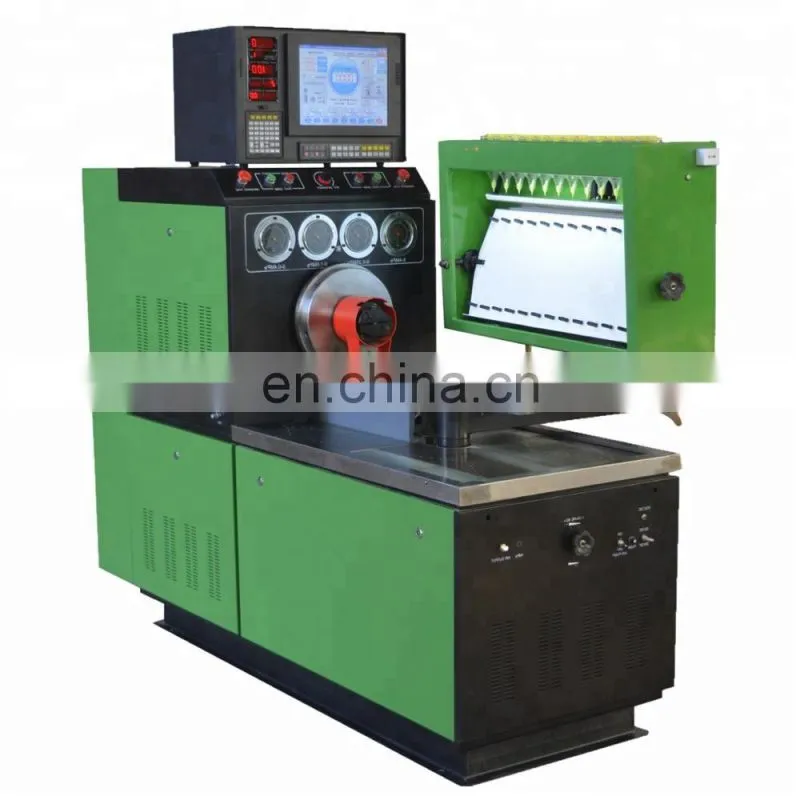

JH-12PSB Diesel Fuel Injection Pump Test Bench with Printer optional
- QINGDAO/TIANJIN/SHANGHAI
- T/T Credit Card
You May Like
-
AC Motor 380V/11KW Diesel Fuel Injection Pump Test Calibrate Repair Bench with 1 year warranty
-
Factory sale diesel fuel injection pump test bench with accessories
-
Diesel Fuel Injection Service Equipment 12 Cylinders Diesel Fuel Injection Pump Test Bench
-
Euro 2 Mechanical Rotary Diesel Fuel Injection Pump Test Bench
-
12psb high pressure fuel injection pump testing bench machine diesel
-
Auto Testing Machine Converter Speed Governing Diesel Fuel Injection Pump Test Bench
Product Details
| Brand Name | JUNHUI | Place of Origin | Shandong, China | |
| Model Number | 12PSB | Type | Engine Analyzer | |
| Certification | CE/ISO | Voltage | AC 220V/380V | |
| Power | 11kw | Warranty | 12 Months | |
| Applicable Models | Diesel Engine Automobile |
Package Size: 2360mm*1020mm*1850mm
Weight: 950kg
Shipping: by LCL or FCL on ship
Package 5 sets in one 20ft container">Package: Wooden Box
Package Size: 2360mm*1020mm*1850mm
Weight: 950kg
Shipping: by LCL or FCL on ship
Package 5 sets in one 20ft container
Product Description
1. Variable frequency speed regulation;
2. Small deceleration and large output torque;
3. High measurement precision;
4. Overvoltage protection, overload protection and short-circuit protection;
5. Ten kinds of rotation speeds presetting;
6. Constant temperature control;
7. Ultra-low noise;
8. Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

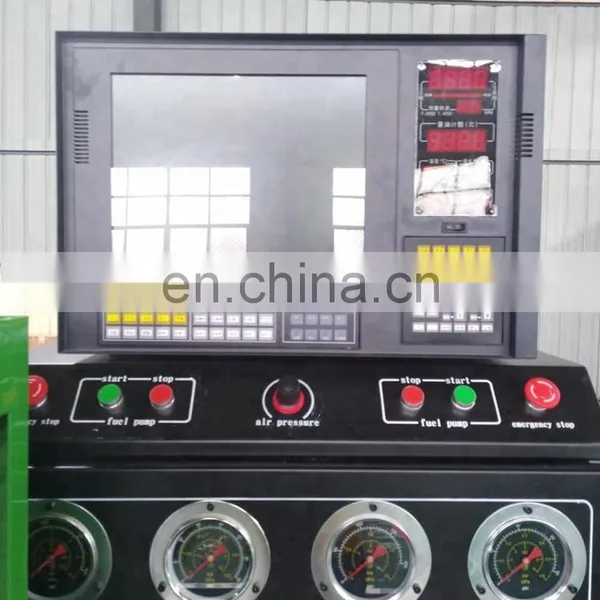

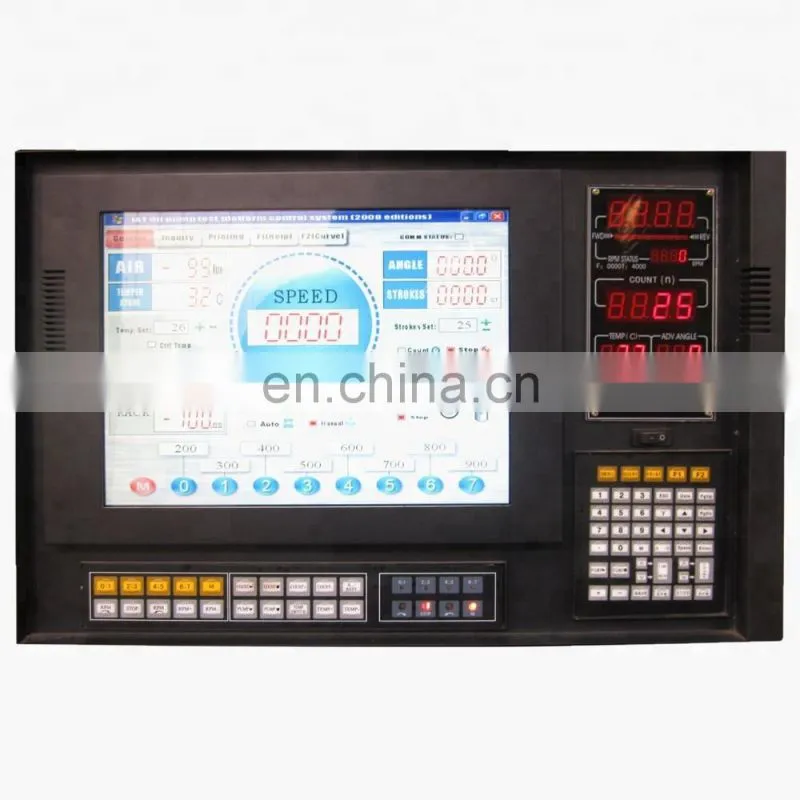

9. Rotation speed, count, temperature, air pressure, advance angle and rack travel are displayed on 15-inch LCD;
10. Built-in air resource.
Function:
1. Measuring each cylinder's injected oil quantity at various rotation speeds;
2. Checking each cylinder's injection time statically;
3. Checking the mechanical speed governor;
4. Checking the electromagnetic valve of distribution pumps;
5. Checking the pneumatic speed governor's performance;
6. Checking the pressure compensator's performance;
7. Measuring the returned oil quantity of distribution pumps;
8. Measuring the internal pressure of the distribution pump body;
9. Checking the pneumatic speed governor' s vacuum performance;
10. Measuring rack travel;
11. Measuring advance angle;
12. Checking the sealing of fuel injection pump body.
1. Adjustable rotation speed range: 0~4000RPM
2. Double series of graduates: 45ml
3. Volume of oil tank: 60L
4. Temperature stabilization: 40±2℃
5. Test oil filtering unit: 5μ
6. DC supply: 12V/24V

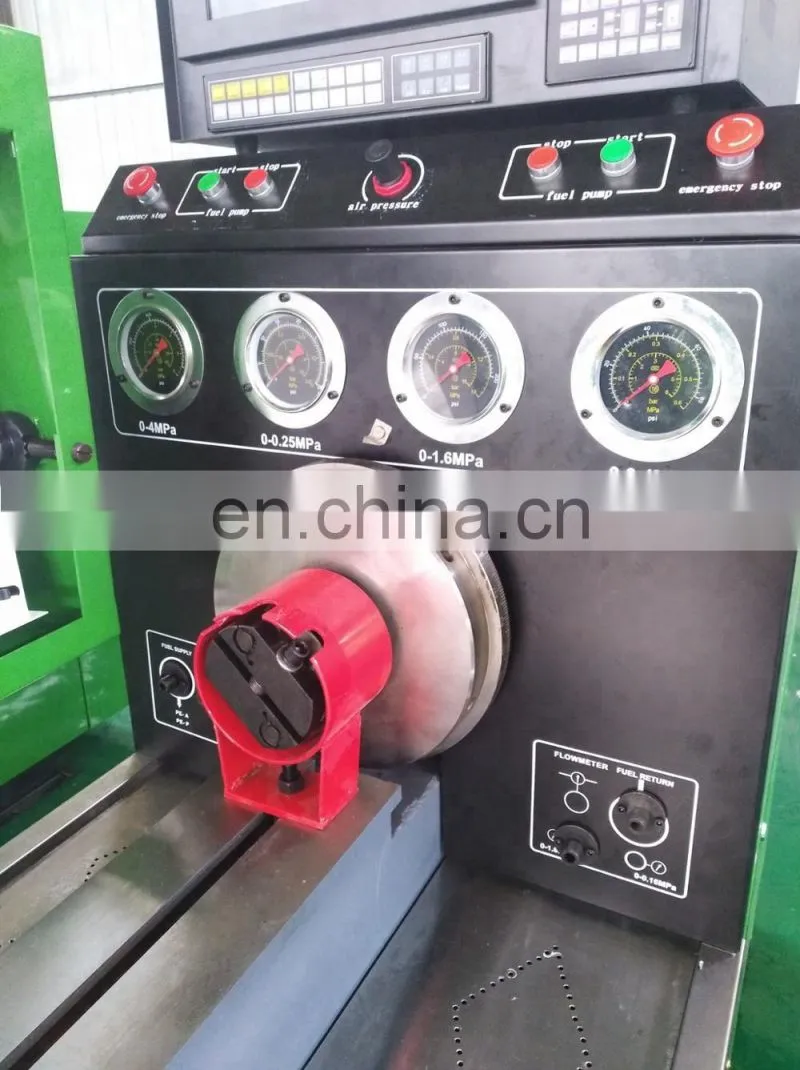

7. Fuel feed pressure: low: 0~0.4MPa, high: 0~4Mpa
8. Air pressure: 0~0.3MPa,
9. 3-phase power supply: 380V/50Hz or according to requirements
10. Flywheel inertia's moment: 0.8KG·M2
11. Center height:125MM
12. Output power: 11KW
13. Overall dimensions(MM): 2360×960×1870
14. Net weight(KG): about 900kg
Test Bench Accessories
Standard Fuel Injector Assembly,

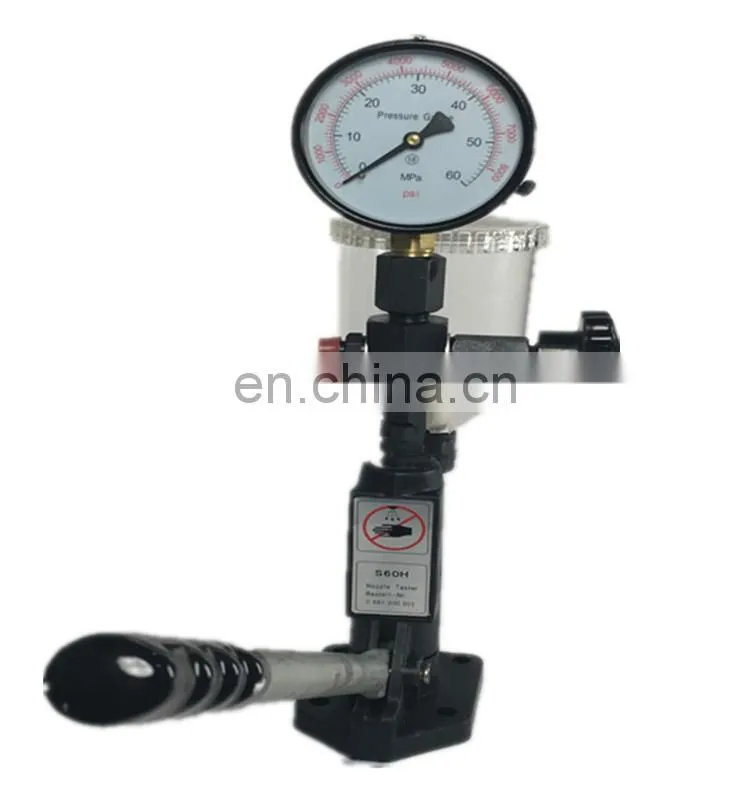

Fuel Injector Tester,
Shaft Coupling,etc.
Package
Package: Wooden box;
Size: 2360mm*1020mm*1850mm;
Weight: 950kg
Shipping:
Shipping by Container Ship: LCL or FCL;
5 sets in one 20ft container
Common Rail Injector Test Bench
Common Rail System Test Bench
Diesel Fuel Injector Nozzle Tester
* Inquiry and consulting support.
* We are professional manufacturer.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 48H release testing
Tai'an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.
We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client's requirements.
Contact Us:
Taian Junhui Automobile Maintenance Equipment Co.,Ltd
Website:
Contact: Simon Sang
Email: simon@
Tel/WhatsApp: +86 18888260296
Q1:Are you a trader or manufacture?
A1:We are manufacturer
Q2:Can you accept OEM or ODM?
A2:Of course,Logo is also acceptable.
Q3:What is the delivery time?
A3:About 7days after order placed.
Q4:How is the machine packed?
A4:wooden cases which is safe for sea transport and no need to be fumigated. the machine if it is big and not in regular size, so machine use nude packing with necessary fixing. If machine is delivered it by LCL, we will pack it with some necessary materials like wrapping film, shockproof film, pallet or wooden frame to secure the safe delivery. In this case, extra packing cost will be charged.
Q5: Which port can we load and deliver the machine?
A5:We have shipping agent in every main port of China, so we can deliver the machine from every port of China to most sea port in the world. We can also quote DDU price for your reference after we have your detailed address information.
Q6:Which is the nearest port and airport to us?
A6:Its Qingdao City
Q7:Which means of transport we can accept?
A7:1. Sea transport 2. Air transport 3. Courier 4. Train 5. Combined transport
Q8:Special hint for FOB term
A8:The default FOB terms we quote is based on the quotation of our own shipping forwarder, which means that if you ask us to quote FOB price, all the charge is based on quote of our forwarder. So if you want to appoint forwarder in China to organize the delivery for you, please kindly tell us this information in advance, we can check with your forwarder again for the port charges because they always quote a higher charge than we get.
Q9: How will you deliver the spare parts?
A9: If you purchase the parts separately, we usually pack the spare parts by carton or plywood. Parts will be sent by courier like DHL or TNT or FEDEX.
