Common Rail System and Diesel Fuel Injection Pump Test Bench

 Grafting type Common Rail Pump and Mechanical Fuel Pump Test Bench

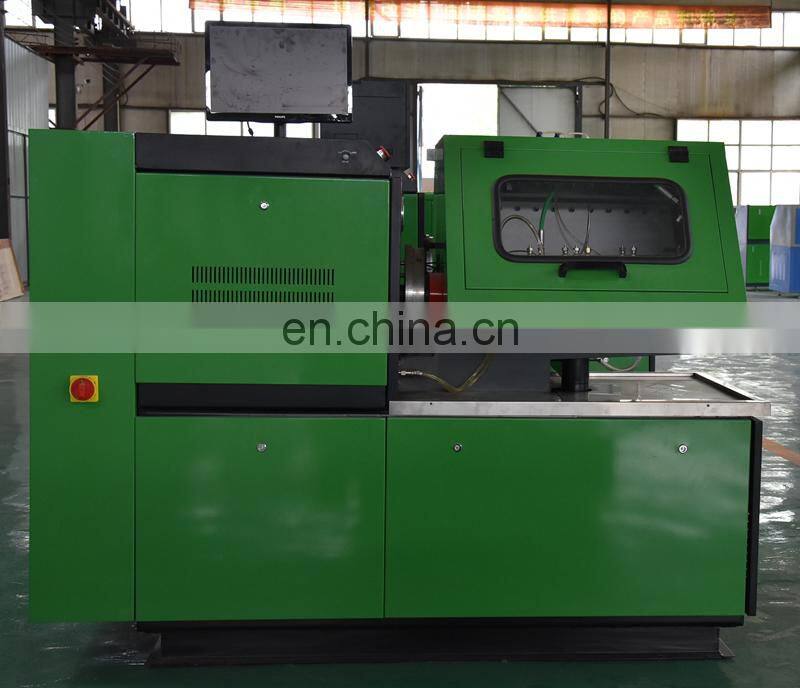

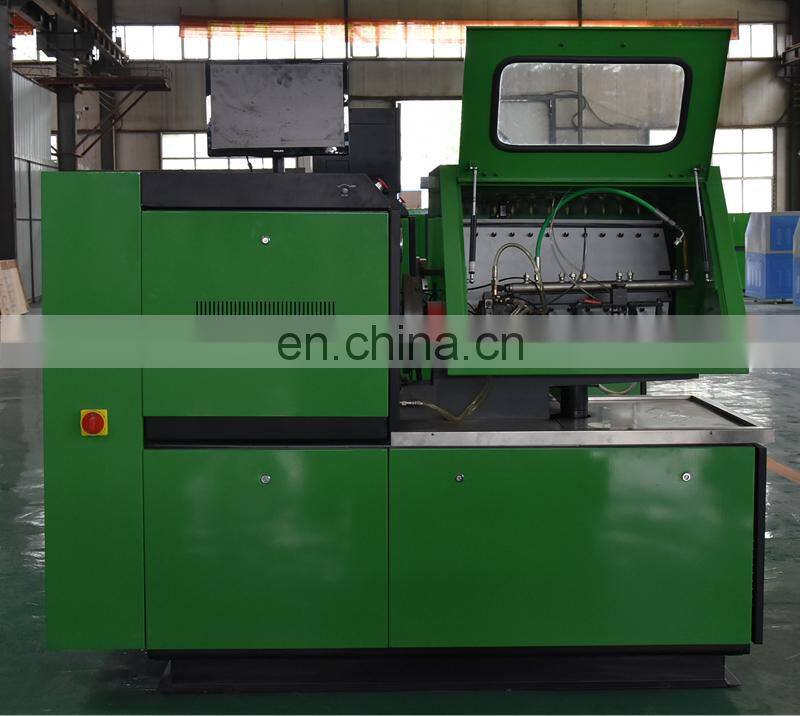

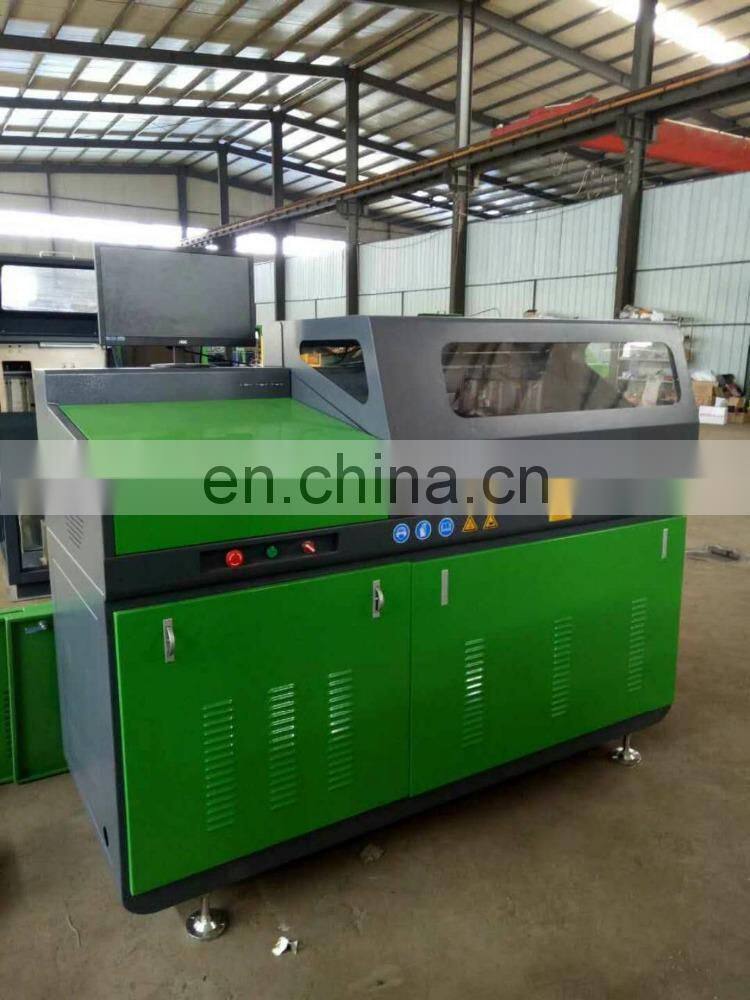

PTS-CRS 100-B is a kind of equipment processed by engraftation and remoulding on the bases of traditional test bench, The equipment’s rail pressure range is (0~1600bar)., which is provided by BOSCH common rail fuel injection pump. The computer control system can accomplish real-time measurement and adjustment for common rail pressure. It can conduct detection and debugging on rail injectors, fuel injection pumps and common rail pipes and general fuel injection pump (EUⅡ) produced by BOSCH, SIEMENS, DELPHI and DENSO. The computer control system is controlled by industrial computer with windows system; Built-in data involves in more than 400 types of Bosch injector debugging data and more than 10 kinds of Denso injector debugging data, the data can be searched and generates date as well as be save automatically . This product with reliable performance, accurate measurement, as well as equipped with organic glass protective door which is convenient to operate and safe to observe.

(Ⅰ). Characteristics:

1. Real-time control by industrial computer with windows system;

2. Adopts BOSCH high-pressure common rail fuel injection pump which generates pressure in a range of 0 ~1600bar;

3. Real-time measure and control of rail pressure, with overpressure protection function;

4. The pulse width and frequency of injector’s driving signal are adjustable;

5. Injection time(s) of injector can be set at will;

6. The date of more than 400 kinds BOSCH and more than 10 kinds DENSO are searchable and savable;

7. Short-circuit protection;

8. Accurate measurement, easy operation, low noise and energy-efficient.

(Ⅱ). Test function (EURO Ⅲ)

1. Inspection on sealing performance of high-pressure common rail injector.

2. Detection on magnetic valve performance of common rail fuel injector.

3. Observation for atomization performance of common rail fuel injector.

4. Detection on uniformity of fuel quantity of common rail fuel injector.

5. Test on starting quantity of fuel of high-pressure common rail injector.

6. Test on full-load quantity of fuel of common rail injector.

7. Test on idling quantity of fuel of common rail injector.

8. Test on pre-injection of high-pressure common rail injector.

9. Test on user-defined quantity of fuel of Test on pre-injection of high-pressure common rail injector.

10. Detection on sealing performance of common rail pipe.

11. Inspection on safety valve performance of common rail pipe.

12. Inspection on pressure sensor of common rail pipe.

13. Detection on sealing performance of common rail pipe.

14. Detection on common rail pressure of common rail pipe.

15. Detection on fuel supply quantity of common rail pipe.

 Function (EURO Ⅱ)

1. Test on fuel supply quantity of various fuel tanks under different revolving speed

2. Static check on fuel supply time of various fuel tanks

3. Inspection on mechanical speed controller’s performance

4. Experiment of magnetic valve of dispensing pump

5. Inspection on pneumatic speed controller performance

6. Inspection on pressure equalizer performance

7. Measurement on fuel return quantity of dispensing pump

8. Measurement of dispensing pump’s internal pressure

9. Inspection on negative pressure of gas film speed controller

10. Measurement of ratch distance

11. Lead-time inspection function

12. Conduct the test on sealing performance of fuel injection pump

(Ⅲ) Technical parameter

1. Main power supply: 7.5KW, 11KW,15KW,

2. Range of speed of test bench: 0~4000RPM

3. Test bench steering: Forward/reverse

4. Testing frequency of common rail fuel injector: 0~100HZ

5. Pulse width: 0.01~30ms

6. Pressure range: 0~200Mpa

7. Fuel supply pressure: 0~1.6Mpa

8. Fuel suction pressure: -0.1~0Mpa

Related Products:

Package: Wooden Box ;

Package Dimension(L*W*H)(mm): 2200×1080×1890 ;

Net Weight(Kg): 900 ;

Gross Weight(Kg): 1000 ;

Packed 5 units in one 20ft container ;

Loaded in LCL,FLC and shipping by Cargo Ship.
