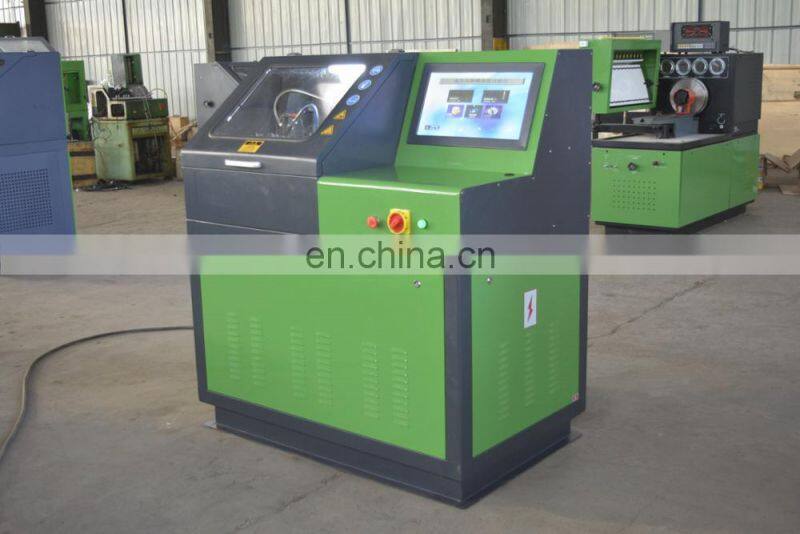

Common rail system tester high pressure common rail injector test bench common rail test bench

Product Application

Common rail system tester high pressure common rail injector test bench common rail test bench is a newly developed high-end product of our company. The computer control system can accomplish realtime measurement and adjustment for common rail pressure. It can conduct detection and debugging on rail injectors produced by BOSCH, SIEMENS, DELPHI and DENSO. The computer control system is controlled by industrial computer with windows system and touch screen (or mouse) operating system, the fuel-measurement system changes the traditional measurement method by glass graduate, it adopts sensor for fuel-measurement (This equipment may be equipped with a measuring glass). Fuel mass will ne measured at real time and displayed at screen, the error precision is 0.1ml, Built-in data involves in more than 3000 kinds Bosch, Denso, Delphi, Siemens and other injectors debugging data, the data can be searched and generates date as well as be save automatically . This product with reliable performance, accurate measurement, as well as equipped with organic glass protective door which is convenient to operate and safe to observe.

Characteristics

1. Real-time control by industrial computer with windows system, touch screen operating system (or mouse).
2. Fuel mass is measured by sensor and displayed on 19.5” display screen.

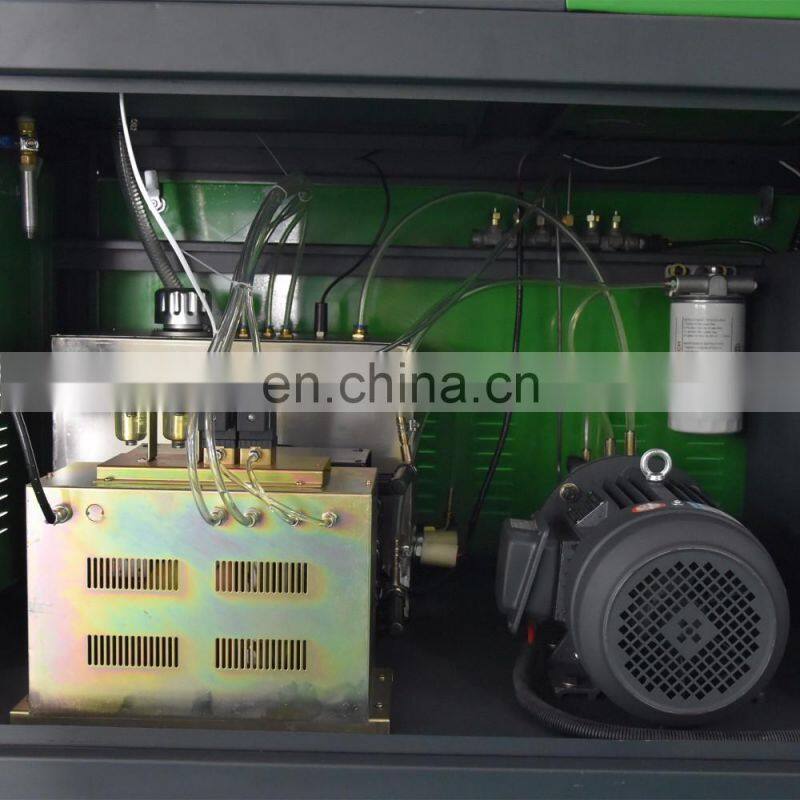

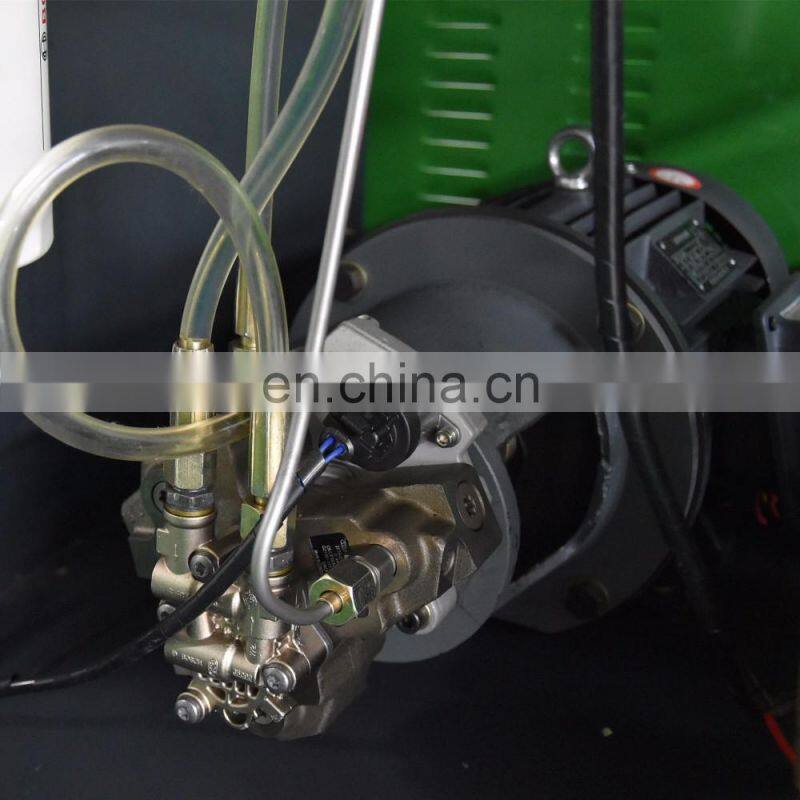

3. Adopts BOSCH high-pressure common rail injection pump to generate 0~2300 bar pressure.
4. Real-time measure and control of rail pressure, with overpressure protection function.
5. The pulse width and frequency of injector’s driving signal are adjustable.
6. Injection time(s) of injector can be set at will.
7. The date of more than 3000 kinds Bosch, Denso, Delphi, Siemens and other injectors.
8. Short-circuit protection.
9. Accurate measurement, easy operation, low noise and energy-efficient.

Functions

1. Inspection of Sealing Performance of Common Rail Injector
2. Performance Test of Solenoid Valve of Common Rail Fuel Injector
3. Observation on Atomization of Common Rail Fuel Injector
4. Homogeneity Test of Fuel Injection Quantity of Common Rail Fuel Injector
5. Test of Fuel Start Quantity of Common Rail Fuel Injector
6. Test of Full-loaded Fuel Quantity of Common Rail iInjector
7. Test of Idle Fuel Quantityof Common Rail Fuel Injector
8. Test of Fuel Pre-injection Quantity of Common Rail Injector
