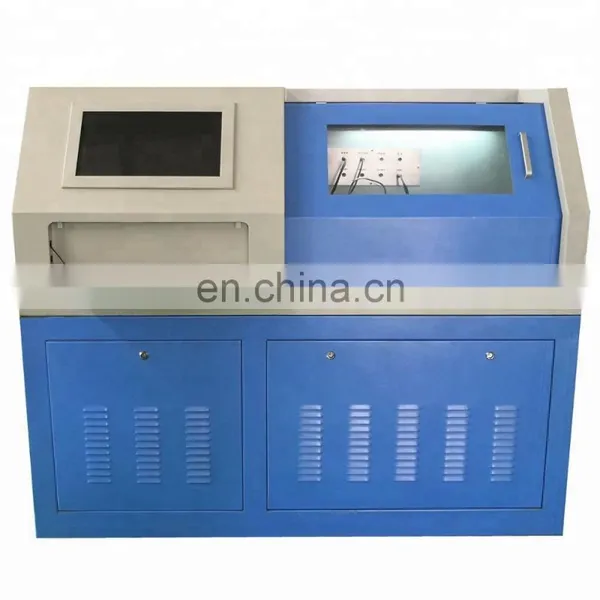

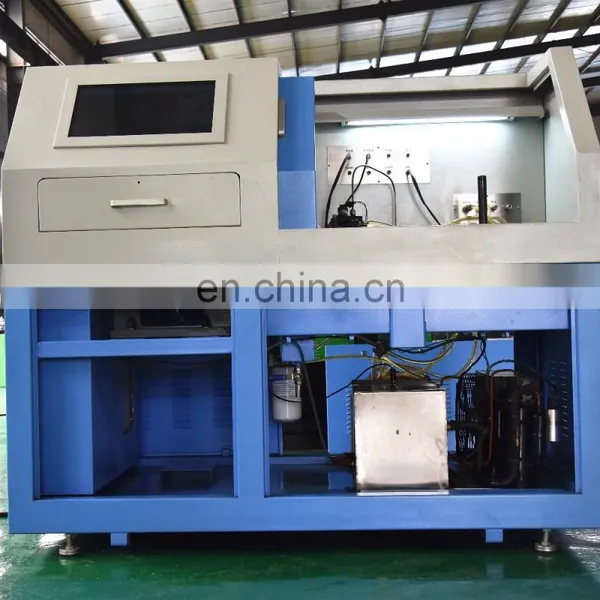

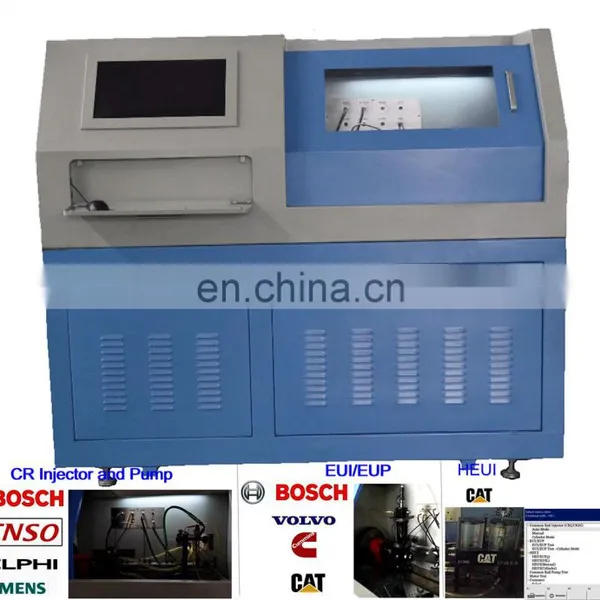

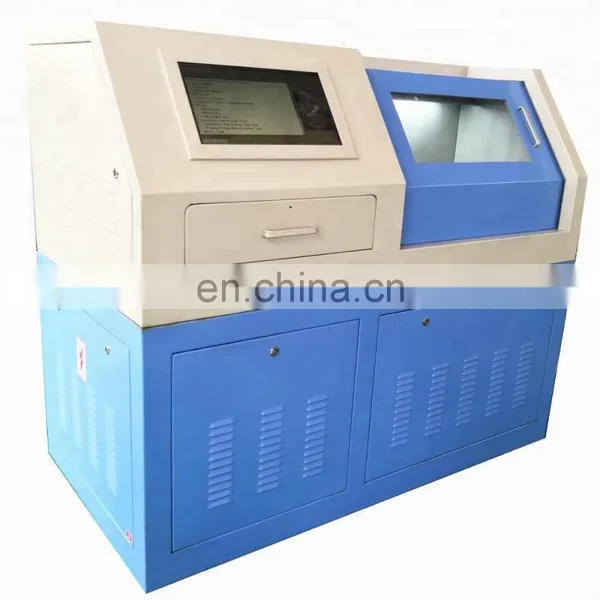

Common Rail Tools Common Rail Injector and Pump Test Bench JH-CRS900
Characteristics:
1. Real-time control by industrial computer with windows system, touch screen operating system (or mouse).
2. Fuel mass is measured by sensor and displayed on 19” LENOVO display.

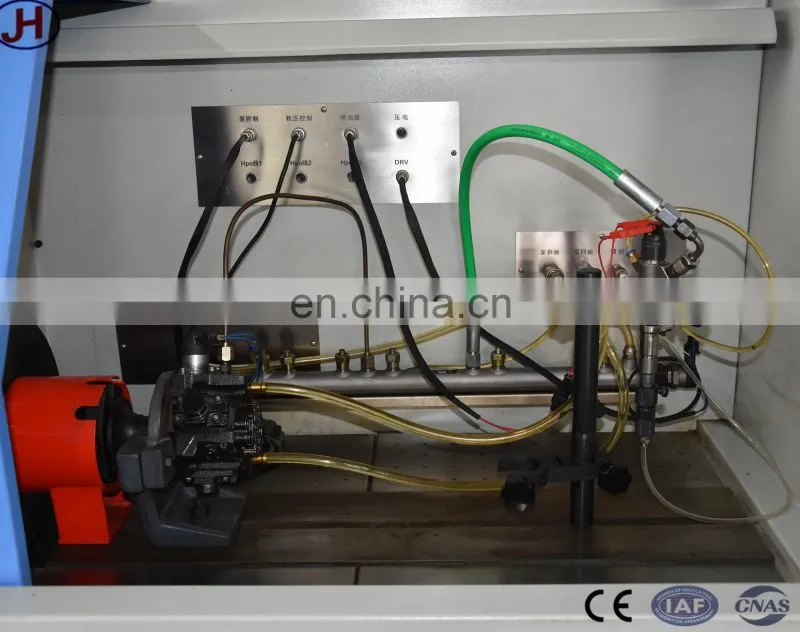

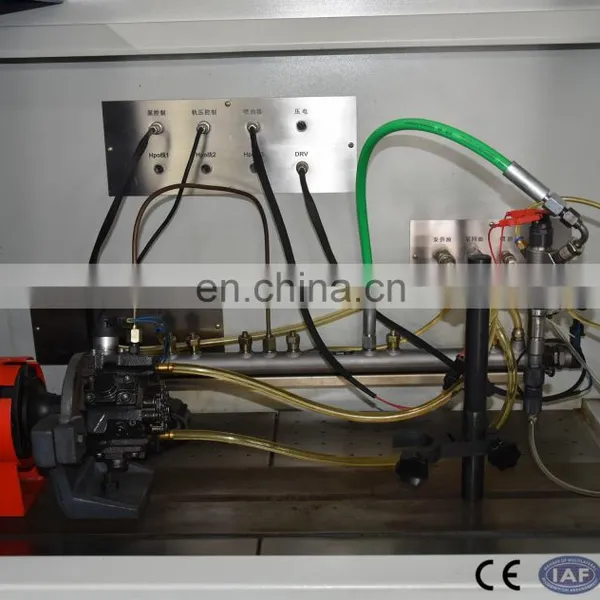

3. Adopts BOSCH high-pressure common rail injection pump to generate 0~1600 bar pressure.
4. Real-time measure and control of rail pressure, with overpressure protection function.
5. The pulse width and frequency of injector’s driving signal are adjustable.
6. Injection time(s) of injector can be set at will.
7. The date of more than 700 kinds BOSCH and more than 10 kinds DENSO are searchable and savable.
8. Short-circuit protection.
9. Accurate measurement, easy operation, low noise and energy-efficient.

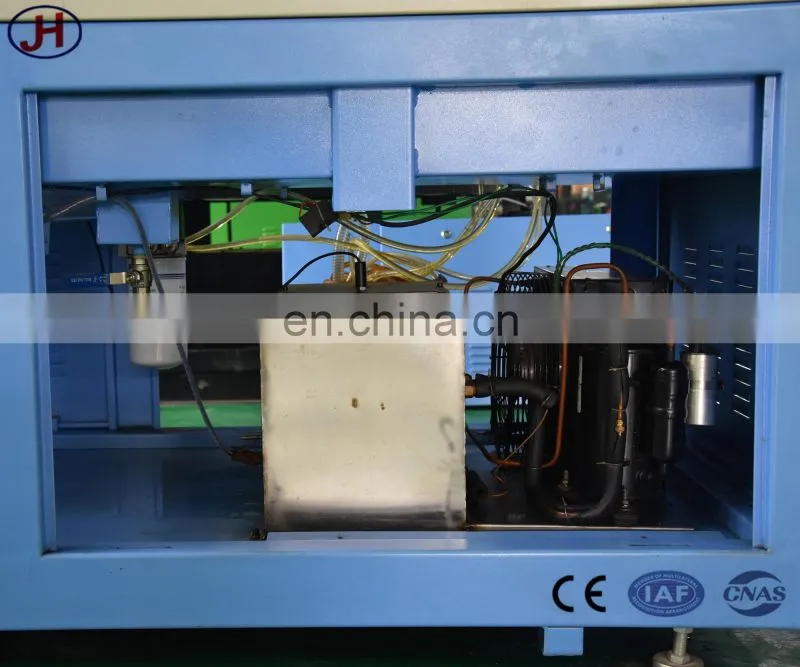

10. The fuel temperature control system adopts 2P presser force refrigeration
Test function
1. Detection on sealing performance of common rail fuel injector.
2. Detection on magnetic valve performance of common rail fuel injector.
3. Observation for atomization of common rail fuel injector.
4. Detection of uniformity of fuel quantity of common rail fuel injector.
5. Test on starting quantity of fuel of high-pressure common rail injector.
6. Test on full-load quantity of fuel of common rail injector.
7. Test on idling quantity of fuel of common rail injector.
8. Test on pre-injection of high-pressure common rail injector.
9.Test on medium speed of common rail injector
10. Test on user-defined quantity of fuel of Test on pre-injection of high-pressure common rail injector.
11. Test on piezoelectric ceramic fuel injector
12.Detection on sealing performance of common rail pipe
13. Inspection on safety valve performance of common rail pipe
14. Inspection on pressure sensor performance of common rail pipe
15. Detection on sealing performance of common rail pump
16. Detection on common rail pressure of common rail pump
17. Detection on fuel supply of common rail pump
18.Test on flow rate of common rail injection pump
19.Test on Denso HPO common rail pump
20.Test on pump injector and unit pump
21.Test on Carter medium pressure common rail(optional)
Technical parameter
1. Main motor power |
11KW,15KW |
2. Range of speed of test bench |
0~4000RPM |
3. Test bench steering |
Forward/Reverse |
4.Testing frequency of common rail fuel injector |
0~100HZ |
5. Pulse width |
0.01~30ms |
6. Pressure range |
0~200Mpa |
7. Fuel supply pressure |
0~1.6Mpa |
8. Fuel suction pressure |
-0.1~0Mpa |

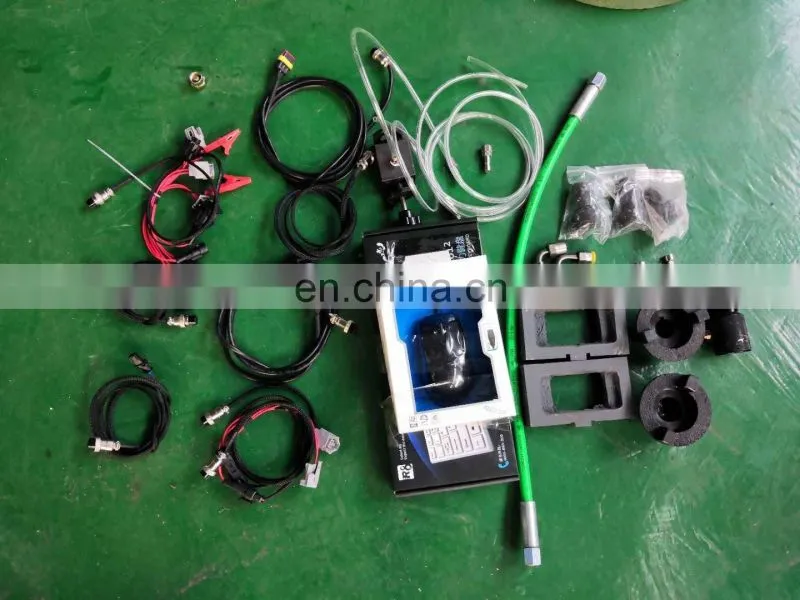

Common Rail injector Dismounting Tools
Common Rail Injector Clamp Holding

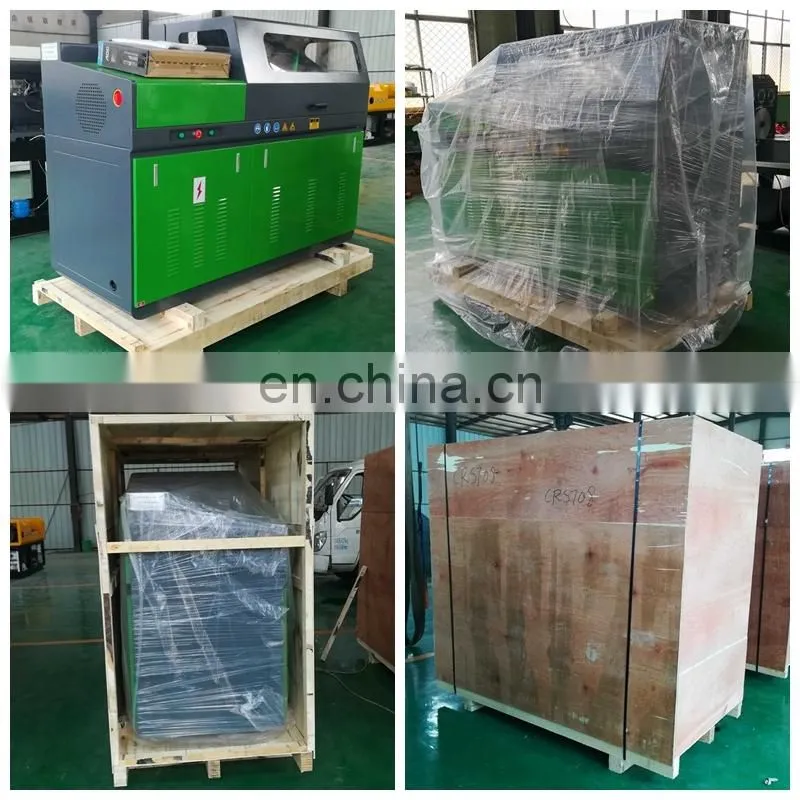

Package: Wooden Box ;
Loaded in LCL,FLC and shipping by Cargo Ship.
Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.
We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client’s requirements.
We acquired ISO 9001:2015 and CE certificate.There are Asia,Africa,Europe,Aemerica clients give high evaluation on our machines.
