Features:

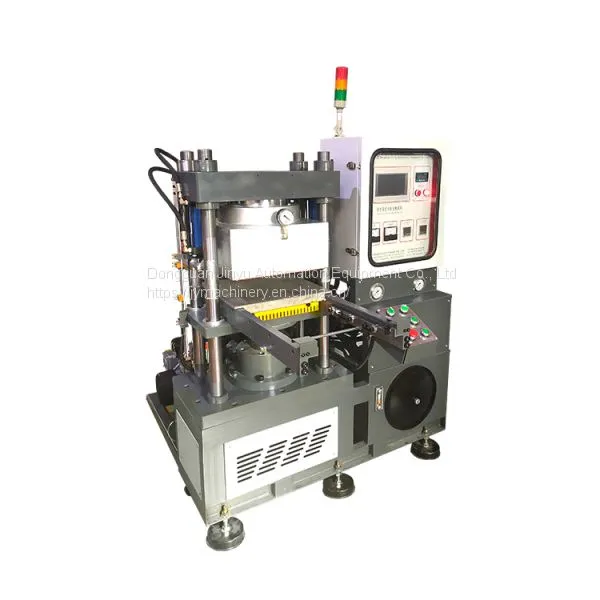

1. Silicone heat transfer label making machine have Stable structure and a Aluminum alloy cover: it adopts the classic 4-column and 3-beam structure, the medium carbon steel is thickened on the upper seat and the thickened and hardened columns ensure the structure is stable, what's more, the machine outside has a unique Aluminum alloy cover, which can control temperature more effectly and power-saving.
2. With vacuum pump: before pressing the material, vacuum pump get work and get out of the air form material, which is convenient and make sure there are no bubble in the product.
3. Precision clamping: using technical plane pressure equalization correction, maximum pressure(200Kg) nut leveling device, can increase the parallelism of the upper and lower heating plates to 0.05mm.
4. Precise temperature control: adjustable from room temperture to 400℃,using intelligent temperature control the temperature fluctuation range within ±2℃
5. Easy to operate: PLC combined with touch screen, whether it is debugging or production can be operated directly and easily.
6. Easy to adjust the pressure: there is a botton below the PLC screen and you can adjust the adjust the pressing pressure by hand easily and visually, which is convenient when you want to press some flexible pattern, like cotton and the pad.
| Model | JY-A02 |
| Type | 30 Ton |
| size | 1750*1450*1600 |
| weight | 1000Kg |
| worktable size | 300*300mm |
| Voltage | 380V, 3 phase |
| Max temp/℃ | 400 |
| main culinder diameter | 150mm |
| main cylinder stroke | 160mm |
Our company has its own factory, the staff have many years of production engineering technical experience, the overall production strength, the machine quality is high.At present, our r&d department often develops new machines according to market changes. Strive for the market for customers.High production speed and guarantee.Independent research and development, multiple patents.Be flexible in order to see specific products.
5.Q:Can you provide technical support?
A: Selection to provide comprehensive technical support, and technical training.
