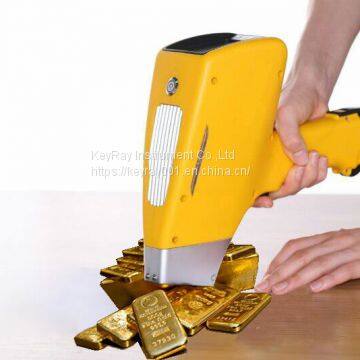

Handheld XRF Spectrometer

KEYRAY3000handheld alloy analyze is portable for testing and suitable for analyzing different kinds of alloy,

KEYRAY3000 is widely used in the below applications:

iron and steel smelting

metal recycling

machinery manufacturing and processing

boiler pressure vessel

aerospace industry

ship building

KEY3000 handheld spectrum analyzer performance and configuration
Analysis  1 PPM to 99.99% range
Use quick analysis of more than 2000 kinds of minerals and alloying elements identify alloy 556 kinds, and alloy brand database
Solid, powder, liquid items under test form
Light pipe     0 kv to 40 kv voltage
High voltage power supply  0 ~ 40 kv
Light control current    0 mu A ~ 100 mu A
filter Can choose a variety of customized switch
The probe Si - pin
Resolution of    Si - pin145 + 5 ev
Multichannel analyzer     DMCP
The test for   2 SEC ~ 30 SEC
Analysis software KEY qualitative and quantitative analysis software
Measuring element analysis from magnesium (Mg) to the plutonium (Pu) between all of the 83 kinds of elements
Shape size 220 * 300 * 220 (mm)
The total weight of instrument weight 1.5 Kg (with battery)


Instruments and environmental requirements
Ambient temperature - 20 ° C ~ 55 ° C
<90% relative humidity


Application field
1, iron and steel metallurgy, boiler, vessel, pipeline, such as manufacturing industry of high temperature and high pressure
2, non-ferrous metals, aerospace, weapons, submarine ships and other industries
3, scrap metal recycling materials
4, precious metal detection
5, geological and mineral exploration and survey
6, in situ detection of ore field
7, mining the mineral map drawing
8, undressed ore, ore concentrate and tailings in the process of washing test
9, undressed ore and concentrate on the determination of ore grade in procurement
10, archaeological research field test
11, archaeological and soil research
