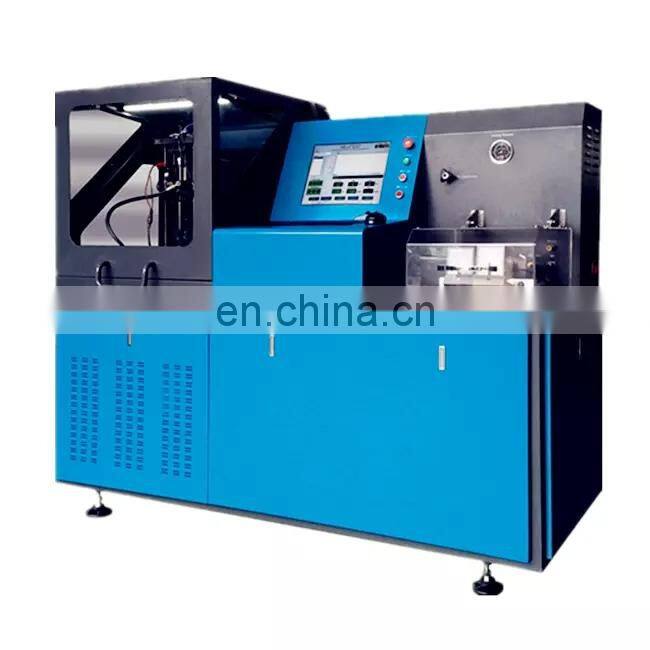

Dongtai Hottest and Newest for EUS9000 Eui/eup Heui Cat Injector Bip Function Test Bench

WOODEN CASE

Dongtai hottest and newest for EUS9000 eui/eup heui cat injector bip function test bench

Features:

The world's first EUP / EUI, HEUI, common rail injector test special comprehensive test bench, can be loaded and unloaded at the same time, test separately, save labor and time, comprehensive performance superior, divided into AB two unique functional models.

EUS900A has a full range of common rail injector test functions and EUP/EUI single pump pump nozzle test function.

EUS900B has EUP/EUI single pump pump nozzle test function and Carter HEUI medium voltage common rail test function.

Include diesel hydraulic implementation, consistent with the fuel injection to prevent the mixture of diesel and lube oil, cause test conditions change and then affect the test accuracy.

Different types of special-purpose cam not only ensures the cam generation but also ensures the cam generation curve.

Fuel injection response time (BIP) test function can judge the overall performance of EUI EUP quickly and accurately.

Embedded industrial computer systems and user-friendly operation design to ensure the control system stability and accuracy.

Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.

Functions and characteristics :

Automatically test C7/C9/C-9,C3126/3408,Ford Power Stroke  6.0  and so on middle pressure common rail product.

Automatically test the injector seal, actuation point, pilot injection, medium speed, maximum load, the maximum test pressure is 2400 bar

Automatically test Bosch, Carter, CUMMINS, DDC, Delphi, Mercedes-Benz, Volvo, EUI/EUP and dual-valve E3,CUMMINS ISX and other special products

Automatically test oil return function of HEUI.

Support Fuel injector response time(BIP)function, can judge the EUI/EUP performance quickly and accurately.

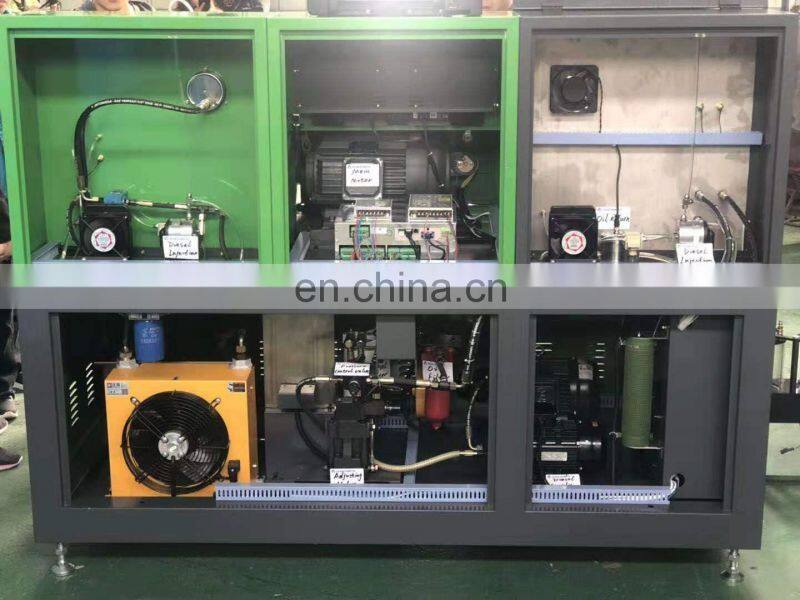

Main configurations:

NT1500 High-precision cam drive

Different lift special cam and injector adapters for many kind products

Middle pressure common rail special bracket.

Special high - pressure piston pump

Industrial air-conditioner refrigeration, dual temperature control fuel tank

Output power 15kw, optional three phase four wire 380V/50HZ, three phase four wire 220V/60H, two phase three wire 220V/60H, different power control.

· Function

Automatically test C7/C9/C-9,C3126/3408,Ford Power Stroke  6.0  and so on middle pressure common rail product.

Automatically test the injector seal, actuation point, pilot injection, medium speed, maximum load, the maximum test pressure is 2400 bar

Automatically test Bosch, Carter, CUMMINS, DDC, Delphi, Mercedes-Benz, Volvo, EUI/EUP and dual-valve E3,CUMMINS ISX and other special products

Automatically test oil return function of HEUI.

Support Fuel injector response time(BIP)function, can judge the EUI/EUP performance quickly and accurately.

 · Technical parameter

1. Rated output power: 7.5KW ,11KW,15KW,18.5KW (on request)

2. Electronic power: 3PHASE 380V 50HZ OR 3PHASE 220V 60HZ

3. Motor speed: 0-4000RPM

4. Pressure adjustment: 0-2500bar

5. Fuel temperature: 40 ±2℃

6.Flow testing range:0-600ml/1000times

7.Flow measurement accuracy:0.1ml

8. Filter accuracy: less than 5um

9.Cooling system: fan or forced cooling

10. Fuel tank capacity: 60L

11.. Size: 1900MM * 900MM * 1500MM

9. Weight: 800kg

10. With 19-inch display

11. Adopt interference-free Logitech mouse
