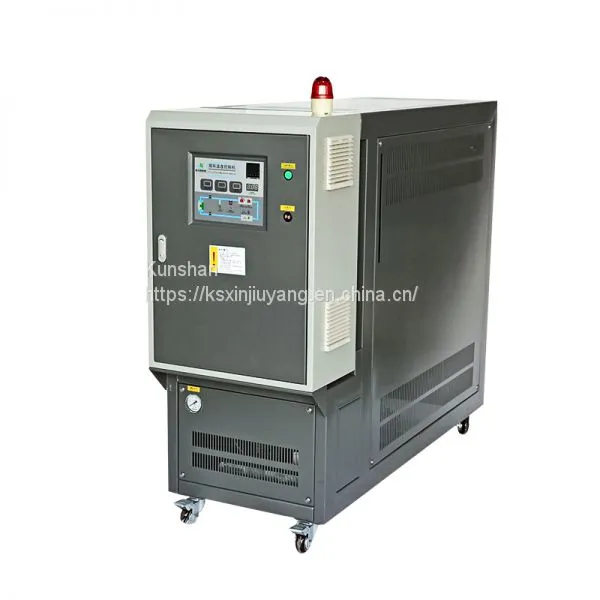

24KW Extruder Temperature Controller , Xin Jiuyang Standard Oil Temperature Control Unit

Features of 200 ℃ high temperature oil temperature machine

1. Return oil temperature display function

2. Power on automatic exhaust function

3. Heating power switching function

4. Hot oil by-pass pressure relief circuit

5. Multi point temperature control unit can be customized

6. Pump horsepower and heating power can be customized

7. Temperature control accuracy: PID ± 1 ° C

8. Isolated electrical control boxes. Extended service life of electrical appliances

9. Omron. Fuji. Te. LG. Moeller. Abb. West

10. Temperature control range: oil inlet temperature + 15 ℃ → 200 ℃

11. 304 stainless steel or carbon steel integrated pipeline to reduce pipe resistance and rust scale

12. Omron or west microcomputer dual group p.i.d control is adopted for the temperature control meter. The touch measure type internal storage automatic calculation is accurate and reliable, saving more than 35% power

13. Perfect safety protection, fault display, repair and maintenance without professional machine specifications

14. Explosion proof device (optional)

15. Air return function (optional)

16. Instant cooling shutdown function (optional)

17. RS485 communication function realizes automatic management

18. Control mode: imported microcomputer or PLC control (optional)

Protection device of 200 ℃ high temperature oil temperature machine

Safety protection and indication system of oil circulation temperature controller / oil temperature controller:

1. Power supply under phase and phase sequence protection

2. General leakage protection switch

3. Pump reverse protection

4. Pump overload protection

5. Over temperature protection

6. Pipeline blocking by-pass pressure relief circuit

7. Temperature abnormal protection

8. Abnormal alarm buzzer

9. Lack of media protection

10. Contactor stuck protection

11. Pressure detection (pressure abnormal stop heating)

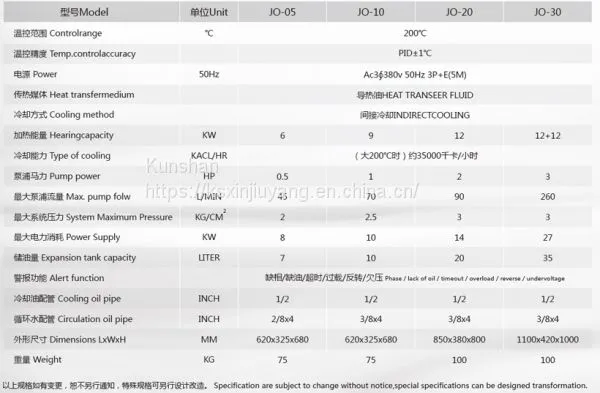

Specification parameter
