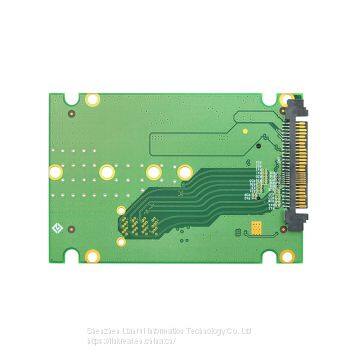

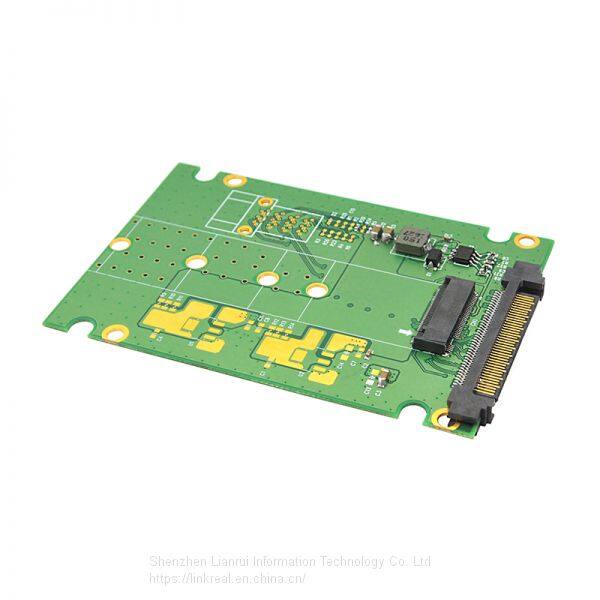

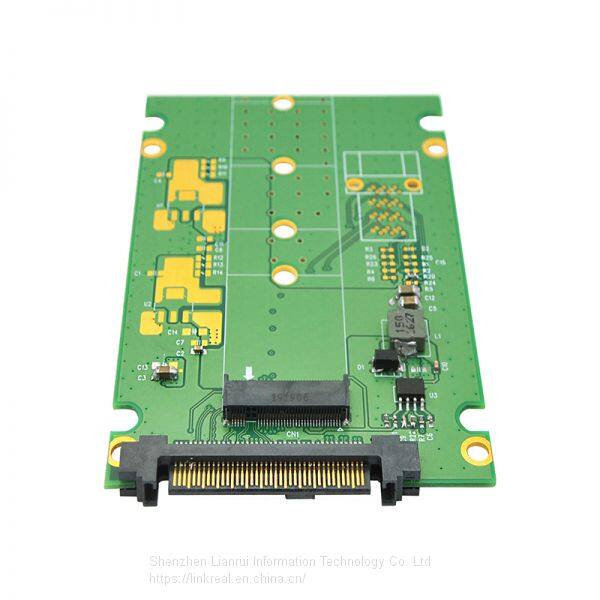

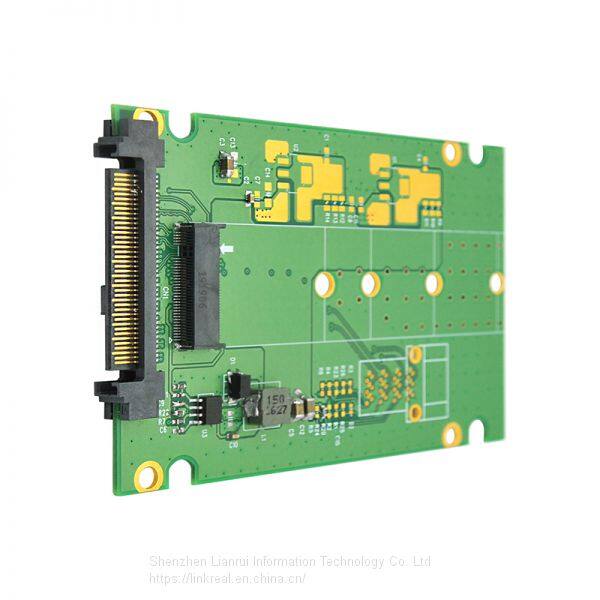

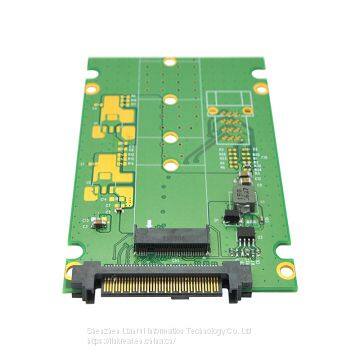

Product Model:LRNV45N1
Product Name:U.2 to M.2 NVMe Adapter
Interface Type:1*M.2 NVMe Connector
Support Equipment:1*M.2 NVMe SSD for 2230, 2242, 2260, 2280 and 22110mm
Host Bus Type Type:U.2(SFF8639) Connector
LRNV45N1 enables the connection of a M.2 NGFF SSD in 2280, 2260, 2242 and 2230mm format.
Need M-key or NVME SSD, the B-key or B/M-key SSD cannot work.
The converter can be installed into your system internally through the U.2 68pin port.
Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with M key.
Maximum height of the components on the module: 1.5 mm
Application of double-sided assembled modules supported.
Features:
• Boost system speed and performance by adding a PCIe M.2 SSD to your PC
• Supports NVMe M.2 SSDs including 2230, 2242, 2260 and 2280mm drives.
• Compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0
System requirements :
Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16
A free U.2 SFF-8639 port or a free SFF-8643 port.
