1. Brief Introduction of QTZ-3 soil sampling drilling rig
QTZ-3 portable earth drilling rig is further improved on the basis of the QTZ-2 portable drilling rig, which is more humanized and more suitable for researchers in scientific research institutions or universities. The power is further strengthened, which can meet the requirement of soil sampling for 15~20 meters depth.
2. Applications of QTZ-3 soil sampling drilling rig
l Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
l Ground water survey; coastal geological survey; wetland environment investigation.
l Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Specifications of QTZ-3 soil sampling drilling rig
QTZ-3 portable soil drilling rig | ||
|
Power |
power |
3.8hp |
lighter way |
back flush pull rope |
|
oil consumption |
0.6 l/h |
|
Impact times |
2460 r/min |
|
Impact energy |
35j-70j |
|
Core depth |
15m-20m |
|
Host weight |
26kg |
|

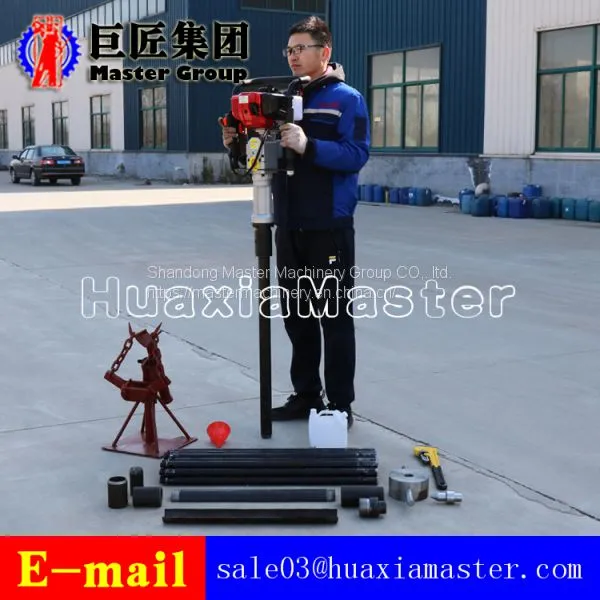

4. Configuration list of QTZ-3 soil core drilling machine
Item |
Parameter |
Unit |
Quantity |
Portable driller |
QTZ-3 |
platform |
1 |
Cylinder impact hand |
52*107 |
pc |
1 |
Tapered tap |
32*80 |
pc |
19 |
Drill pipe |
32*700 |
pc |
19 |
Taper tap |
32*100 |
pc |
19 |
Reducing nipple |
32*50 |
pc |
1 |
Collar |
50*150 |
pc |
1 |
Open tube |
50*600 |
pc |
1 |
Double tube boots |
50*100 |
pc |
2 |
Reducing nipple |
32*70 |
pc |
1 |
Collar |
70*150 |
pc |
1 |
Split duct |
70*600 |
pc |
1 |
Inner edge pipe boots |
70*100 |
pc |
1 |
Outer edge pipe boots |
70*100 |
pc |
1 |
Portable sounding hammer |
10kg |
pc |
1 |
Sounding the reducing nipple |
32 |
pc |
1 |
Double sided hand |
32 |
pc |
1 |
Touch probe |
32 |
pc |
1 |
Puller |
three force arm |
set |
1 |
The ratio of oil |
25:1 |
pc |
1 |
Oil injection funnel |
pc |
1 |
|
Forceps |
80mm |
hold |
1 |
Wrench |
24/27 |
1 |
|
Small wrench |
8/10 |
1 |
|
Internal six party |
#4 |
1 |
|
Internal six party |
#5 |
1 |
|
Internal six party |
#6 |
1 |
|
Hexagonal spanner |
1 |
||
Spark plug wrench |
1 |
||
Screw driver |
1 |
||
Spare spark plug |
1 |
