mi-auto Foaming machine for polyurethane sponge mattress foaming machine
- 20 Set / Sets per Month
- Ningbo/shanghai
- T/T Credit Card
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Brand Name: | D&T | Model Number: | DT | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 12months | Weight: | 2500kgs | Dimension(L*W*H): | 3000*2000mm*1100mm |
Voltage: | 380V/220V | Condition: | New | Power(W): | 35KW |
Product Description

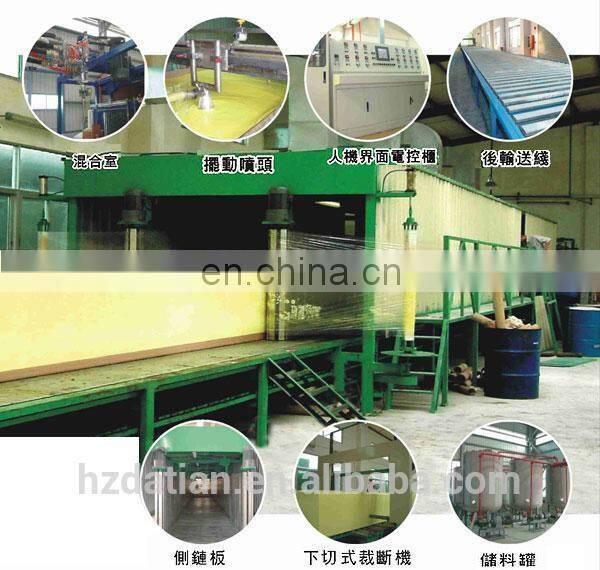

Polyurethane Sponge Production Line/ machine to foaming mattress/ Polyurethane foaming machine
Full Automatic continuous foaming machine to make Polurethane foam
A. specifications of each component:
1.Stirs mix rack and spongy control platform 4m×3.2m×3.2m(L×W×H)
2. Drop board of drying tunnel 8.32m×1.2m~2.30m(L×W)
3.Side link joint of drying tunnel 17.5m×2.4m×1.2m(L×W×H)
4.Rack of drying oven 16.9m×4.55m×3.2m(L×W×H)
5. Level transportation line in the drying tunnel 17.5m×2.4m×0.8m(L×W×H)
6. The width of sponge wadding for cutting machine 2.4m×1.30m (W×H)
(Undercut type)
B. main technical specifications and functions
1. Overall dimension of the equipment: 34m×4.55m×3.2m(L+total width+ H)
2. Quantity of component of foaming material: 13
3. Product Width: 1200mm~2300mm
4. Product Height: ≤1200MM
5. Density: 10Kg/m³~50Kg/m³
6. Capacity: 2000mm/min~7000mm/min
7. Maximum capacity: 200~300L/min
8.Method of Foaming: 1). down spurts, sway (up, down, front, or back adjustable)
2). trough type (match 2 foaming troughs: W1550mm/w2100mm)
9. Membrane lift installment (Flat topping function)
10. Announcing arrestor for material lack( foaming protect function)
11. Drop board of drying tunnel operated height and width by electrically
12. Transportation line of side link joint of drying tunnel operated height and width by electrically
13. The body paper and film put away automatically
14. Easy to change the two mix stirs (Φ100mm) and pre-mixer
15. The Method to control expanding:
1).Control by PLC, kinds of different types of sponge continuously once
2).Entire transducer control, production line synchronization;
16. The Maximum Size of the sponge: 1500mm×2300mm×1300mm(L×W×H).
17. The electrical machinery power of mix stirs: 37kw
18. Total Power: 130kw

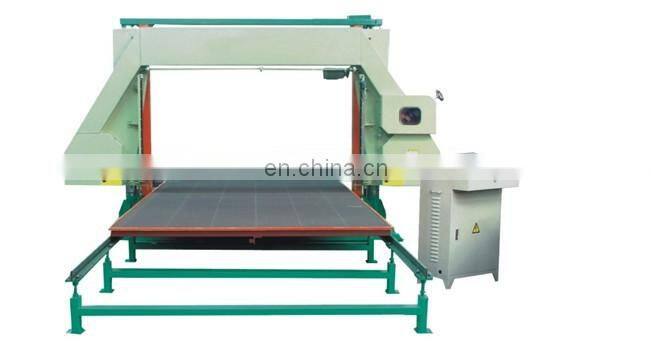

3.Horizontal Cutter
This cutter is a kind of Automatic Control machine, and has the Frequency conversion system.
It is used to cut sponge sheet.
TECHNICAL DATA |
|
Type | DTPQ-1650 |
Max. Product Size | 2000×1650×1200(mm) |
Cutting Line | 8500 mm |
Control System | Transducer |
Cutting Speed | 0~25m/min |
Overall Power | 8.14kW |
Overall Dimension | 5800×3500×2400 mm |
Overall Weight | 2000kg |

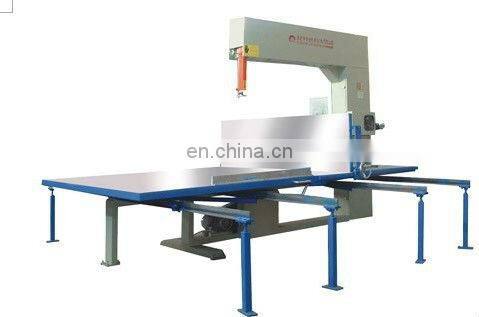

4. Vertical Cutter
TECHNICAL DATA | |
Type | DTLQ-4L |
Inner Table Size | 1720×2290(mm) |
Outer Table Size | 2000×2290(mm) |
Cutting Height | 800/1200(mm) |
Cutting Thickness | >3mm |
Cutting Line | 8100/8900(mm) |
Overall Power | 1.74kW |
Overall Dimension | 4500×4800×2550 mm (L×W×H) |
Overall Weight | 1600kg |
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T before delivery or sight confirmed L/C.
Installation and Start-up: 2 technicians will be assigned to coordinate installation, commissioning and
training, cost for flight and suitable accommodation plus USD60/day will be charged additionally.
Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
Certifications Of Product
Packing & Shipping
We have professional person for packing and we have longterm cooperation with our own
cargo agent.They could help us to send the cargo to the place all over the world with safety.For
this point,dear sir,you could believe us.
Pictures of Packing & Shipping
Our Services
1)After-sale Service:
Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 100 per day each person will be charged additionally.
2)Lifetime maintenance free of charge.
3)Free training course at our plant.
4)24 hours on line service each day; free technical support.
5)Machine has been adjusted and test before delivery.
6)Free to design the Layout of customers' plant by our technician team.
1.Company Information
polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer and foam relation assistant
equipments. Eps Pre-expander machine.Through the research of our engineers, our cutting machine
had connected well with the popularized CAD and achieved automation and high efficiency, high
accuracy and makes iteasy to operate.We always put the customer on the first place and make utmost
efforts to satisfy you.We wholeheartedly look forward to developing economic, technical and trade
cooperation with you.
2.Our Company View
3.Our Team
4.Our Exhibitions
5.Our Customers
6. Welcome to Contact Us
FAQ
1.Q:Are you manufacturer ?
A:Yes,We are manufacturer
2.Q: Which software do you use?
A: Dear sir,we use the CAD software
3.Q: Which way do you repair your machine
A:Our engineers is avilable to repair oversea
4.Q:Where can I find your cutting vidio?
A :Dear sir,you could find our vidio at YOUTUBE
5.Q:What is your website?
A :Dear sir,our website is
Welcom new and old customers come and visit us!please feel free to contact us for more information!
