Constant temperature and humidity incubator principle
The working principle of constant temperature and humidity chamber is to feel the actual temperature and humidity, then convert into electrical signals through temperature and humidity sensor under the microcomputer control(heater or refrigeration), to achieve the required temperature and humidity.
Run Preparation
Before the initial operation of this machine, please follow procedures as below:
1. Take out the shelves and other accessories inside the chamber.
2. Use gauze with soaked alcohol to wipe the cabinet to disinfection, then using a dry gauze to wipe the alcohol.
3. Put the shelves inside equipment according to the experimental requirements.

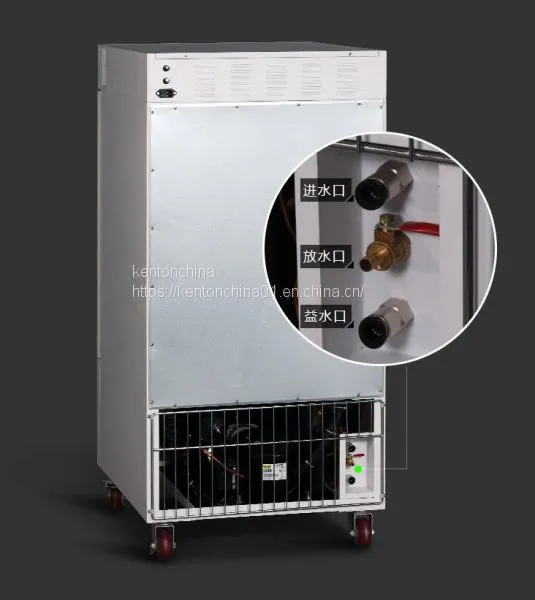

4. water tank should be placed on the top of the equipment, then insert pipes to water inlet and overflow in the chamber back (refer to the parts diagram), and place water basin for use under the overflow port.
5. inject enough water into the water tank.
Technical Parameters
1、Temp. Range：0～60℃；(with humidity 10～50℃)
2、Temp. accuracy：±0.1℃；
3、Temp. Fluctuation：±0.5℃（10℃～40℃）；
4、Temp. Uniformity：±1℃（10℃～40℃）；
5、Humidity range：50-90%RH（10℃～40℃）；
6、Humidity fluctuation：±3%；
7、Voltage: Single phase220V/50HZ
8、Power：900W（100L） 1080W（150L） 1100W（250L）；
9、Working environment：ambient temperature 10~30℃ humidity below 70%
10、Refrigeration fluid：R134；
11、Device Class：Class I.
12、Note: this machine has low temperature defrost function, temperature and humidity in low temperature will automatically defrost, there will be some fluctuation.
