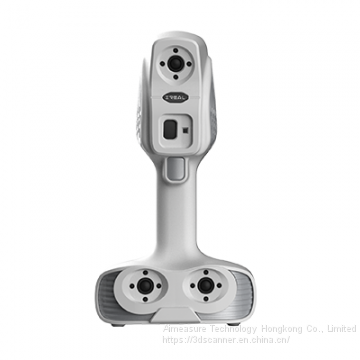

iReal 2S Color 3D Scanner
iReal 2S initiatively adopts double scattering speckle technology: blue LED light and infrared light.
This color scanner maximizes performances in texture reproduction, accuracy, detail capturing, etc.
* Features
Double scattering speckle technology
- Simultaneously adopts blue LED light and Red invisible spectrum
- Extends a wider range of work environments
- Blue light offers high-resolution data acquisition with strong anti-interference capacity
Color 3D Scanner
- Red spectrum is insensitive to different materials and enlarges scan area with high efficiency
Top comfortability safety
- Class I red spectrum brings the most comfortable and safest scanning experience to users
- line-of -sight- issues are eliminated
- Red spectrum scanning overcomes the difficulty to obtain data of hairs and eyes creatively and perfectly
- Apply to education, medical treatment, public inspection and other applications
Versatile alignment for diverse demands
- Supports texture/geometric/markers alignment
- Scanning without markers: when object has continuous and irregular textures or geometric features, it can be scanned without any markers base on texture alignment and geometric alignment.
- Mixed Alignment Modes: scanning object without continuous or irregular textures or geometric features, iReal 2S combines 3 alignment modes and only needs few markers to finish it.
Super HD texture capturing
- Deeply fulfill the visual experience of capturing in various fields Overall Update
- Ergonomic design and user-friendly interface
- Users can quickly start even without any experience
Perfect Match: 3D Scanning AR
- E-Ar device supports real-time scanning feedback efficiently and flexibly
* Specification
MODEL |
iREAL 2S |
|||
Light source |
Blue light |
Infrared light |
||
Visibility |
Visible |
Invisible |
||
Safety |
LED light（eye-safe） |
CLASS І (eye-safe) |
||
Color scanning |
Support |
|||
Color reproduction |
24 bit |
|||
Point distance |
0.2 ~ 3 mm |
0.5 ~ 3 mm |
||
Point accuracy (single frame) |
Up to 0.1 mm |
Up to 0.15 mm |
||
Alignment accuracy (for markers) |
0.2 mm/m |
0.25 mm/m |
||
Alignment mode without markers |
Texture/feature/mixed alignments |
|||
Alignment mode with markers |
Markers/mixed alignments |
|||
Optimal scanning distance |
400 mm |
|||
Effective working range |
300 ~ 600 mm |
|||
Scanning area |
200 x 135 mm ~ 400 x 270 mm |
200 x 165 mm ~ 400 x 330 mm |
||
Frame rate |
15 fps |
|||
Output formats |
OBJ, STL, PLY, ASC, SK |
|||
3D printing |
Support |
|||
Work temperature |
5 ~ 40℃ |
|||
Interface mode |
USB 3.0 |
|||
Weight |
910 g |
|||
