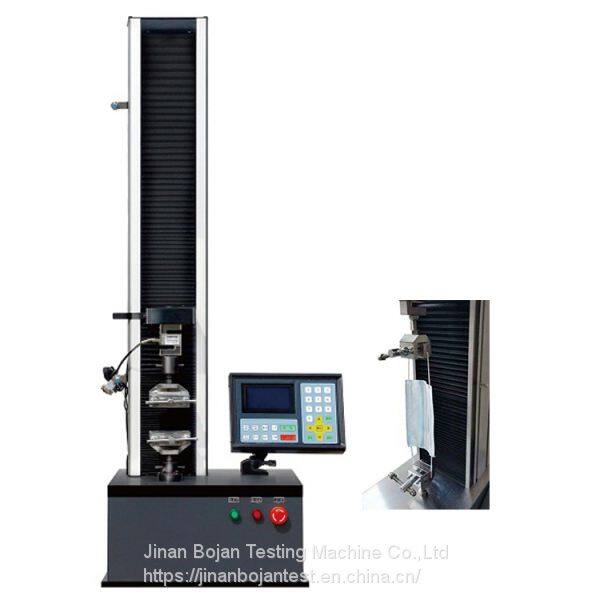

Face Mask universal tensile strength testing machine
Function
The testing machine is mainly applicable to the test of tensile strength, bonding strength, tear, compression and other properties of elastic coatings and waterproof coatings.
Feature
1. This test machine has four test methods:
To measure the force at a certain height, to measure the force at a certain deformation.
Measuring height and deformation with fixed force.
2. One or more test functions can be performed, and up to 5 test points can be set.
3. It can be measured in sections and calculate the stiffness (elastic coefficient) K and the average stiffness of each section.
4. Products can be sampled for inspection or batch test (the mechanical part has batch test tooling.
Test Sample
It is can be used for cable, copper wire, fishing line, nonwoven, paper pellet, plastic, rubber thin steel wire , wire, woven bag etc.
Technical Parameters
Max Test Force |
200N |
500N |
1000N |
2000N |
5000N |
Type |
Single column |
||||
Level |
1/0.5 grade |
||||
Test Range |
1%-100%FS |
||||
Test accuracy |
±1% better than the display value |
||||
Force resolution |
0.01N |
0.1N |
|||
Displacement resolution |
0.01mm |
||||
Displacement accuracy |
±1% better than the display value |
||||
Test stroke |
600mm（can be customized） |
||||
Speed Range |
1-500mm/min |
||||
Displacement speed control accuracy |
±1% better than the display value |
||||
Host dimensions（L*W*H） |
About 500mm*320mm*1450mm |
||||
Weight（kg） |
About 120 |
||||
Remark：tensile and compression space can be customized | |||||
