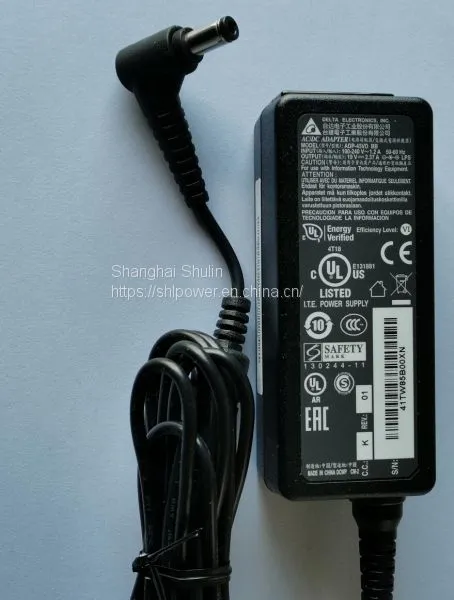

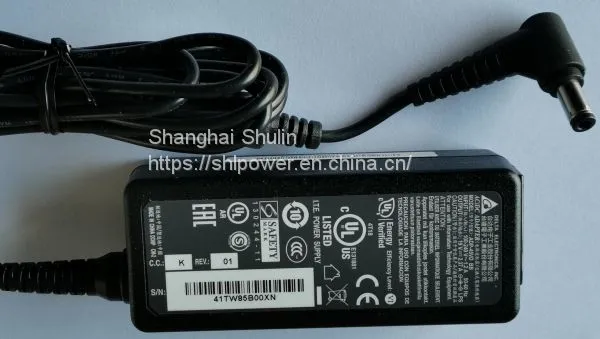

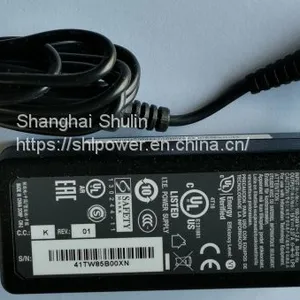

Delta 19V AC DC adapters ADP-45VD Delta adapter's agent

Technical specifications：

Input:

AC Socket: C6, C8

Input range：90Vac~264Vac

Frequency：47Hz~63Hz

Input current：1.2A Max at 100Vac input voltage

Efficiency：85% Min. at nominal input voltage, maximum load and measured at the end of DC cable

Output

Output Power：45W

Output Volts/Amps：19.0V/2.1A

Output ripple and noise：350 mV peak to peak

DC plug:  follow up cusomter's request to offer

Dimensions (mm)

L89.5 x W37.0 x H26.5
