Home > Industrial Equipment & Components > Bearing > Cylindrical Roller Bearing > RU66 Crossed Cylindrical Bearing

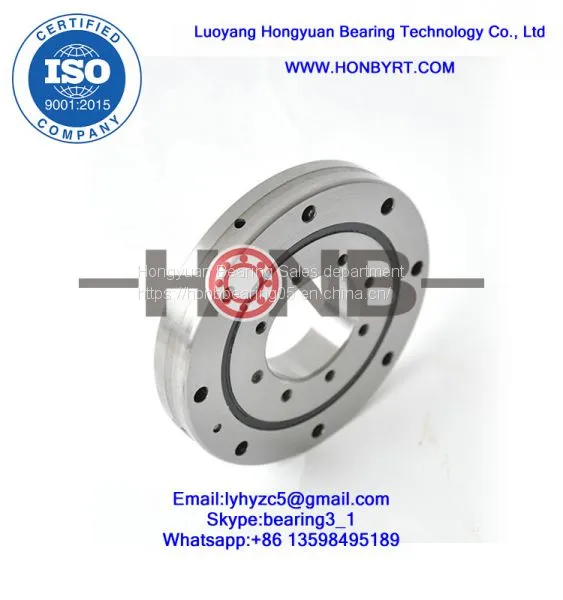

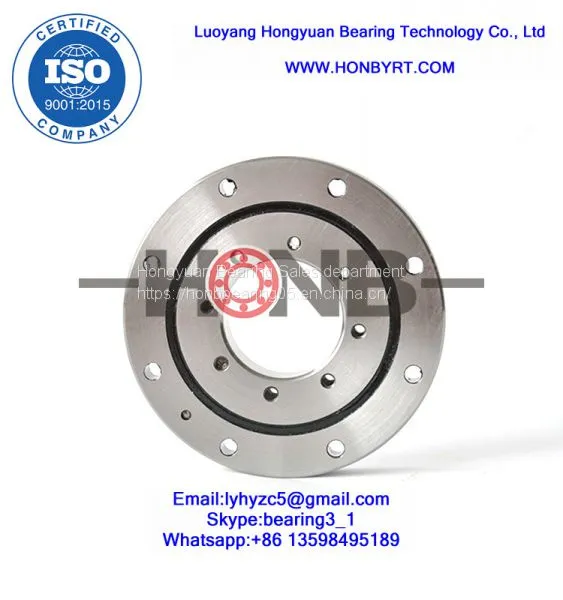

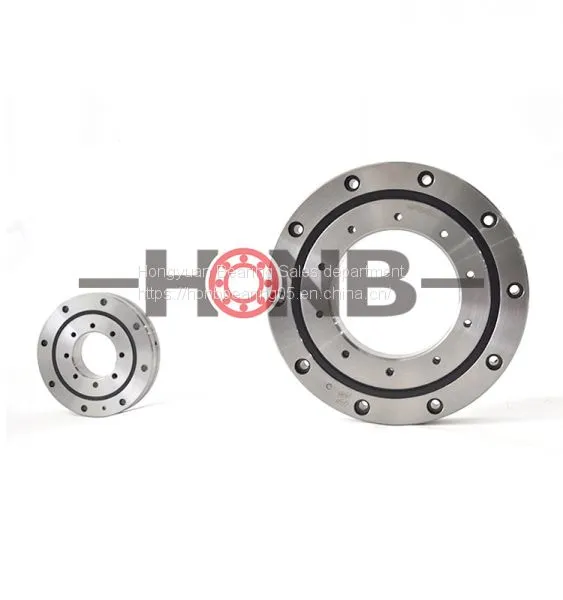

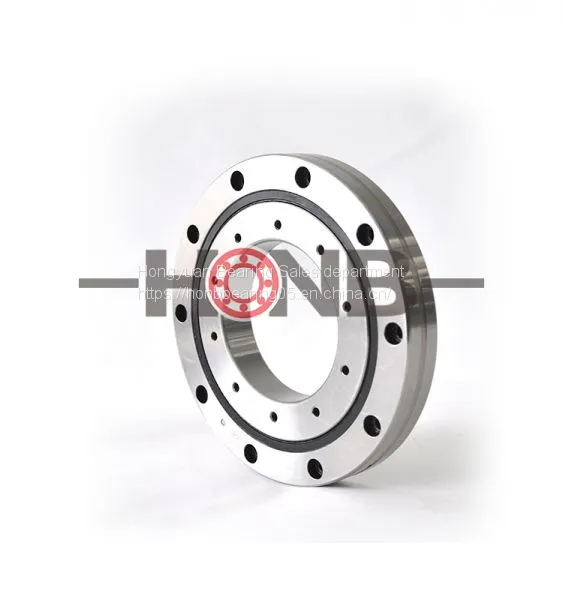

RU66 Crossed Cylindrical Bearing
EUR 1 - 10000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONB
Place of Origin:
China
Model Number:
RU66
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
5 days
Related Products
-
RU124 Crossed Roller Bearing 80x165x22mmEUR 1 - 10000MOQ: 1 Piece -
RU228(G) Crossed Roller Bearing(alternative to INA Crossed Roller Bearing)EUR 1 - 10000MOQ: 1 Piece
-
RU445(G)/X Crossed Roller Bearings (350x540x45mm) Machine Tool BearingEUR 1 - 10000MOQ: 1 Piece
-
High Speed Crossed Roller Bearings SX011814EUR 1 - 10000MOQ: 1 Piece
-
Supply High Precision Crossed Roller Bearing SX011820EUR 1 - 10000MOQ: 1 Piece
Brand Name
HONB
Place of Origin
China
Model Number
RU66
Number of Row
Single Row
Seals Type
Single seals/Double seals/No seals
Precision Rating
P2/P4/P5
Outside Diameter
95, 95
Bore Size
35, 35
RU series(Integrated Inner/Outer Ring type) since the mounting holes are provided, the model does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque.
this model can be used for both inner-ring rotation and outer-ring rotation.(HONBbearing05)
Contact person: Anna Feng
Tel: +86 379 63086182
Fax:+86 379 63086177
Fax:+86 379 63086177
Mob: +86 13598495189
Whatspp: +86 13598495189
Skype: bearing3_01
Whatspp: +86 13598495189
Skype: bearing3_01
Website:
Model:RU66
ID(Inner diameter):35mm
OD(Outer diameter):95mm
Thickness(Height):15mm
Radial dynamic load rating(Cr):17.5KN
Radial static load rating(Cor):22.3KN
Mass(Weight):0.62KG
| RU series（Inner Ring Rotation/Outer Ring Rotation with fixing holes） | Unit：mm | |||||||||
| TYPE | Dimensions | Shoulder Height | Basic Load Rating（Radial） | Weight | ||||||
| Inner Ring | Outer Ring | Roller Pitch Diameter | Height | Chamfer | Cr | Cor | ||||
| d | D | Dpw | B B1 | rmin | ds | Dh | kN | kN | kg | |
| RU66 | 35 | 95 | 66 | 15 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
