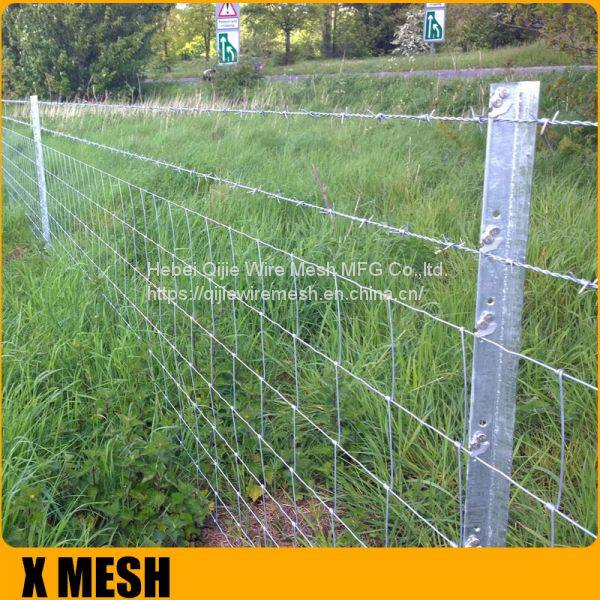

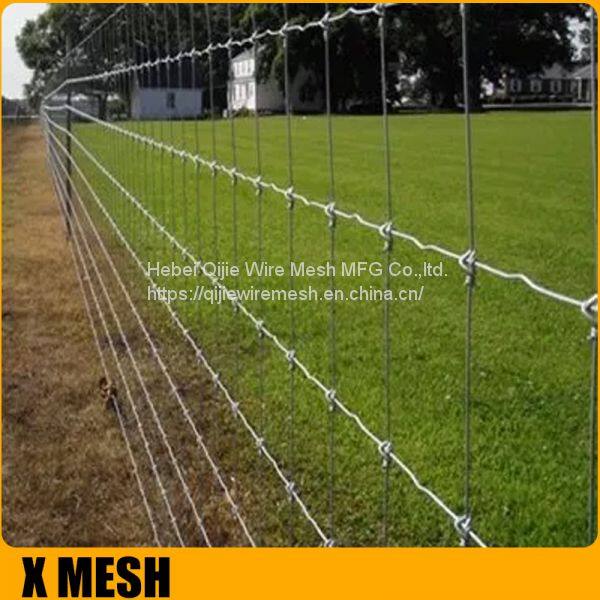

China Factory Export Hot Dipped Galvanized Cattle Fence,Deer Field Fence,deer Fence
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 20 days
You May Like
-
CORPORATION Standard-Strength Low-Carbon Metal Horse High Tensile Field Fence
-
2.5mm High Tensile Strength Fixed Knot Field Fence for Deer Protection
-
Australia Hot Dip Galvanized 1.8x2.4m House Gate Designs Wrought Iron Fence
-
Razorwire Flat Profile – A Useful Alternative To Concertina Razor Wire With Clips
-
Black Annealed Wire as Tie/Baling Wire in Buildings, Parks, Daily
-
Black or Gray King Kong Window Screen Mesh Bulletproof Wire Mesh for Security Window Screen
Product Details
| Brand Name | Xmesh | Place of Origin | China | |
| Model Number | RLFF-001 | Material | Galvanized Steel Wire | |
| Type | Rope Mesh | Application | Farm Fence | |
| Technique | Woven | Wire Diameter | 2.5mm | |
| Weave Style | Plain Weave |
Product Description
Field fences offer good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure.
Details of the cattle fence
Material: hot-dipped galvanized wire, which is made of Q235 iron rod. Tensile strength:300-700N/MM2
Finish:hot dipped galvanized 40-60gr/m2;high zinc coating 60-300gr/m2
Mesh wire diameter 2.0-2.5mm,top and bottom wire diameter 2.5-3.0mm
Fence height:0.6-2.0m
Production ability:60000m2/week
Standard specifications of the cattle fence
Num | Specification mesh | Gross Weight | Set and bottom wire Diameter | In wire | Volume diameter (mm) | |
Type | Specification | |||||
1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 270 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 270 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 270 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 | 270 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 270 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 270 |
7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 | 270 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 270 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 270 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 | 270 |
3.Application of cattle fence:
Field fence is a kind of mesh used in cattle, goat, deer, and pig. It is used for grassland, pastures, protection of ecological projects, protecting grassland, forestry, highway, and environments
