Application:

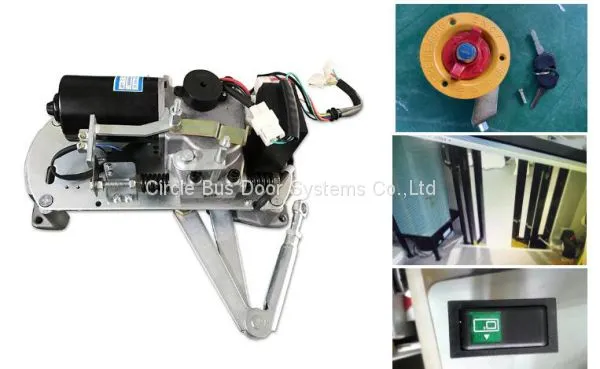

BDM100 Bus door mechanism is an open-close drive mechanism for bus folding doors,jack knife bus doors.
It is widely used for the city bus and mini-bus that have no air sources.
Main characters:
Whole frame design, superior performance.
It can be used in the extremely hot and cold weather areas.
It has electrical anti-clamping function,with low working current, and easy to installation.
It is durable ,can be used on city bus with frequency open and close, now it is popular in South east Asia because of easy installation and cheap price .
Advantages:
1. Bifold bus door has Low working current (less than 3.5 A) with better motor and better design.
2. Has close limit device , to protect the motor force too strong to damage the door panel.
3. Has anti-clamping function ,when facing force less than 300N, door can open automatically.
4. More durable , can be used on city bus with frequent open and close without failure.
2.Mechanism:
1Auto-operation: When the handle in the “automatic” position, push the button to control the door to open and close.
2 .Manual operation: When the door in any position, if you need manual operation, you can move the handle into “Manual “position and then pull or push the door to easily open and close.
3. Electric Anti-clamping function: In case the passenger or other items are clamped during the door closing,the door will stop closing and go to fully opened.
3.Main Parameter:
Voltage |
12V/24V |
Motor power |
40W |
Working current |
5-10A |
Driving force |
1000-1250N |
Opening direction |
LH/RH |
Operating time |
2.5S |
Working temperature |
-40°C~ +80 ° C |
Overall dimension |
320*130*175 mm |
Weight |
8.7 kgs |
Life Cycle |
200000 |
