CSG(CSF)-17 Crossed roller bearing for harmonic drive gear reducer /Harmonic reducer rigid bearings CSG(CSF) series
- 10000 Piece / Pieces per Month
- Shanghai ,Qingdao
- T/T PayPal Other
- 3 days
- Tubular twister roller bearing 549124 strander machine
- Cable Tubular strander bearing 544518p5 grade
- Cylindrical Roller Bearings 548410p5 with brass cage
- Tubular twister cylindrical roller bearing Z-546293.ZLP5 grade
- Wire strander cylindrical roller bearing Z-549128.ZL
- LYHGB High-speed Motion Deep Groove Ball Bearings 6003 6004 6005 6006 ZZ Silent
Product Details
Brand Name: | HONB | Place of Origin: | China | Model Number: | CSG(CSF)-17 |
Number of Row: | Single Row | Seals Type: | single seal | Outside Diameter: | 62, |
Bore Size: | 10, |
Product Description
CSG(CSF) Series Crossed Roller Bearings for Harmonic Drive is cross roller structure.According to its application area there are two types(CSG/CSF Series and SHG/SHF Series ).Rolling body are cylindrical rollers which arranged orthogonality,this structure can make one bearing can bear the load from every direction e.g. radial,axial and tilting torque etc. Bearing with high rigidity,rotation accuracy and load carrying capacity. This crossed roller bearing has compact appearance,with mounting hole,customer can mount directly,suitable for every kinds of harmonic drives. HONBbearing07

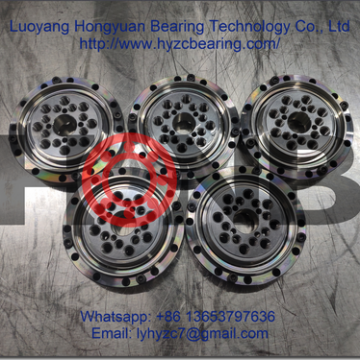

CSG(CSF) Series Crossed Roller Bearings (Outer ring split,inner ring integraty)
Outer ring split,inner ring integraty structure ,there is no need of flange and bearing seat.suitable for every kind of CSF(CSG) series harmonic drives.
Model | Dimension | |||||||||
d | D | H | C | B | H2 | D1 | D2 | d1 | d2 | |
Unit:mm | ||||||||||
CSG(CSF)-14 | 11 | 55 | 16.5 | 16 | 13.5 | 4 | 41.8 | 29 | 29.8 | 28.4 |
CSG(CSF)-17 | 10 | 62 | 16.5 | 16 | 13.5 | 4 | 49 | 34 | 33.8 | 33.8 |
CSG(CSF)-20 | 14 | 70 | 16.5 | 16 | 13.5 | 4.5 | 56.5 | 41 | 40 | 40 |
CSG(CSF)-25 | 20 | 85 | 18.5 | 18 | 16.5 | 3.5 | 67 | 535 | 52.6 | 52.6 |
CSG(CSF)-32 | 26 | 112 | 22.5 | 21.5 | 19 | 4.5 | 90 | 68 | 68.6 | 68.6 |
CSG(CSF)-40 | 32(24) | 126 | 24 | 22.5 | 21.5 | 4.5 | 105 | 86 | 81.2 | 81.2 |
CSG(CSF)-50 | 40(32) | 157 | 31 | 30 | 28 | 5 | 131.6 | 103 | 102.6 | 102.6 |
CSG(CSF)-65 | 52(44) | 210 | 39 | 37 | 35 | 7 | 176 | 132 | 132.6 | 132.6 |
Model | Outer ring mounting hole | Inner ring mounting hole | Inner ring mounting hole | Basic load rating | Weight | ||||
Center diameter dm | Mounting hole size | Center diameter dn | Mounting hole size | Center diameterdL | Mounting hole size | Cr | Cor | KG | |
KN | KN | ||||||||
CSG(CSF)-14 | 49 | 8-φ3.5 | 23 | 6-M4 | 17 | 6-M4 | 7 | 9.1 | 0.15 |
CSG(CSF)-17 | 56 | 10-φ3.5 | 27 | 6-M5 | 19 | 6-M5 | 7.6 | 10.7 | 0.24 |
CSG(CSF)-20 | 64 | 12-φ3.5 | 32 | 8-M6 | 24 | 8-M5 | 8.5 | 13.4 | 0.2 |
CSG(CSF)-25 | 79 | 16-φ3.5 | 42 | 8-M8 | 30 | 8-M6 | 13.8 | 21.6 | 0.45 |
CSG(CSF)-32 | 104 | 16-φ4.5 | 55 | 8-M10 | 40 | 8-M8 | 12.5 | 35.6 | 0.9 |
CSG(CSF)-40 | 117 | 20-φ5 | 68 | 8-M10 | 50 | 8-M10 | 25.9 | 41.4 | 1.3 |
CSG(CSF)-50 | 147 | 16-φ5.5 | 84 | 8-M14 | 60 | 8-M14 | 49.5 | 85 | 2.8 |
CSG(CSF)-65 | 198 | 20-φ6.6 | 110 | 8-M16 | 80 | 8-M16 | 74.6 | 133 | 7.9 |
