Professional Provide Mining Conveyor Roller Bearing 6305 2RS TN/KA C3

Shandong Xinkaite Bearing Co., Ltd. is a professional manufacturer of bearings for conveyor belt roller.

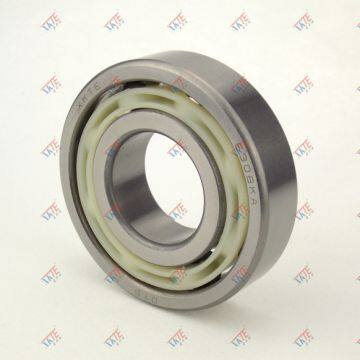

6305 bearing (old model 305) belongs to the deep groove ball bearing series and is a common type of roller bearing. They include open type, KA, KAZ, sealed and other types. The main characteristics of roller bearings produced by Shandong Xinkaite Bearing Co., Ltd. are deep groove ball, large clearance, Specially for the production of conveyor rollers. Our KA retainer uses Japanese imported double 6 nylon material cage to be more willful and stronger than common TN cage.

6305 bearing parameters:

Inner diameter: 25mm

Outer diameter: 52mm

Height: 15mm

Weight: 0.128kg

Cr: 14KN Cor: 7.85KN

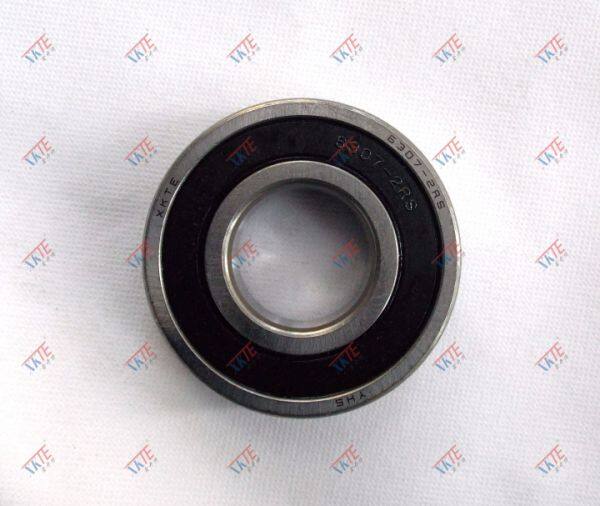

The 6305-2RS (double sealed bearing) inner slotted produced by Shandong Xinkaite Bearing Co., Ltd. has a special slotting process, which is more effective in preventing dust and water.

KA/TN series roller bearings are widely used in dusty working environments such as mines and underground. KA series roller bearings have the characteristics of long service life, small rotation resistance and low energy consumption. Anti-seize life and rotation resistance are 10 times and 50% of ordinary bearings.

Welcome customers of conveyor roller manufacturers and belt conveyors from all over the world to visit and contact us.
