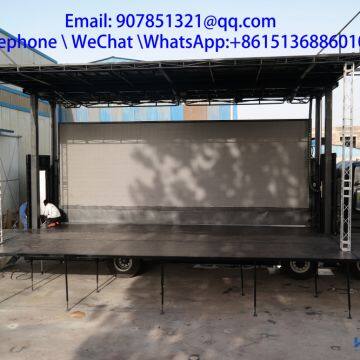

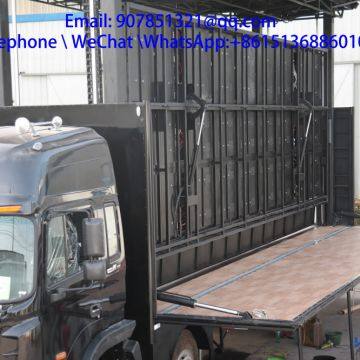

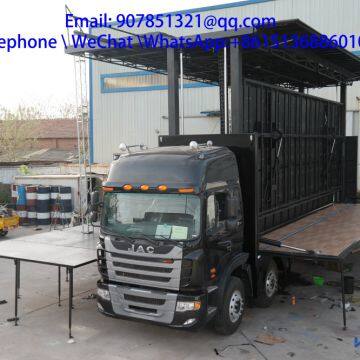

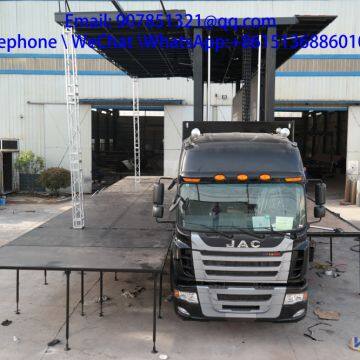

9.6 m LED mobile advertising vehicleled stage truck
- 30 Set / Sets per Month
- QINGDAO/NINGBO/SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 12 m mobile stage truck trailer of roadshow
- 9.6 m roadshow LED mobile advertising stage truck for sale
- 12 m led mobile stage trailer truck for roadshow
- 9.6 m led Mobile roadshow stage truck for sale
- 13 m led Mobile roadshow advertising stage truck
- 9.6 m roadshow LED mobile advertising stage truck for sale
Product Details
Brand Name: | HUAYUAN | Place of Origin: | China | Model Number: | ZHC5250XWT |
Condition: | New | Transmission Type: | Manual | Gross Vehicle Weight: | 19500 |
Fuel Type: | Diesel | Emission Standard: | Euro 4 | Dimensions (L x W x H) (mm): | 11950*2500*3950(mm) |
Product Description
Main details parameters
Outside body size (length × width × height mm) | 9600×2500×-- |
Stage size (mm) | Deep: 4880-7230; opening width: 9000-14780; height from ground: 1400 |
Stage area (m2) | 64 square meters - 84 square meters |
Stage step ladder | Aluminum pattern pedal + armrest |
Stage support | The stage legs are collected in the lower space of the stage frame, which can be directly screwed out and fixed. |
Extended connection | The hinge is hinged to the main stage panel, manually flipped and becomes part of the stage, making operation quick and easy |
Chassis leg | Hydraulic leg |
Wing, main and sub stage, ceiling | Hydraulic expansion |
Left background | Hydraulic expansion |
Chassis model |
|
Emission Standards | Gb17691-2005 country v, gb3847-2005 |
Power (kw) | 179(240PS) |
Chassis configuration | Air conditioning, airbag seat, vehicle tools, fire extinguisher, warning triangle, semi-high ceiling cab |
Displacement | 6740mL |
Tire | 11.00R20,12R22.5 |
Overall dimensions (length × width × height mm) | 11950×2500×3950(mm)
|
Total vehicle mass (kg) | 19500 |
Loading mass (kg) | 2000 |
Led screen (optional) | The size is 8640*2880, and the screen folding is hydraulically expanded or closed (according to customer's optional) |
1. The whole body adopts aluminum alloy profile, section steel and stamping frame, and the outer skin is aluminum alloy plate;The stage floor is non-slip film covered stage board;The right wing of the box body and the roof are lifted through the hydraulic system to serve as the roof of the stage for shading and rain protection. The stage is expanded through the hydraulic device.
2. The interior of the box shall be equipped with distribution boards, lighting lamps, stage lighting lines and power sockets.
3. All the hanging light racks inside the stage ceiling are trusses, and pull-out guide rail racks are set on both sides of the wing plates as acoustic suspension support frames. Two support trusses are set at the outermost end of the wing plates towards the platform mouth;A background suspension bar is arranged at each end of the inner side of the wing plate
4. The power of the hydraulic system comes from the engine, which is an independent power unit, and the operation is remote control + electric control
1,Shipping term:whole vehicle or in parts,by container or by bulk,standard seaworthy wooden boxes are available.
2,Delivery time:10-15 days after deposit.
3,Delivery term:EXW,FOB,CFR,CIF etc.
Relative large space for operating.
Unique steel frame, rust and corrosion resistance, longer service life.
Strong and stable dynamic system.
Can be customized according to customer's requirement.
FAQ
Q1:What's the MOQ?
A:1 set for quality checking is workable.
Q2:What's the process of an order?
A:Firstly,buyer and seller confirm all the requirements and quotation.
Secondly,buyer pay 30% deposit by T/T,seller start production,
Thirdly,seller send photos of the finished vehicle to buyer,buyer pay the 70% balance.
Fourthly,seller arrange land transportation and shipment to buyer's destination port.
Q3:Is it ok to print buyer's logo on the vehicle?
A:Yes.
Our Services
1. Guarantee the whole car for one year.
2. The professional technical team will provide you and your end users with the services of various product problems.
3. Strong r&d team to meet customer needs.: style, color, steering wheel position, etc.
4. Show your order flow from time to time via photos, video, what-app, or email.
5. Tailor solutions and marketing plans to your local market to expand it.
