Home > Industrial Equipment & Components > Bearing > Deep Groove Ball Bearing > Planetary Reducer Bearing 6202 2RS CO HG04 (-50~150℃）

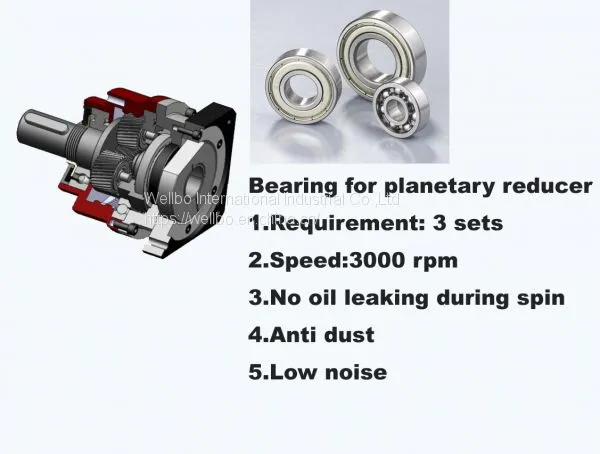

Planetary Reducer Bearing 6202 2RS CO HG04 (-50~150℃）
US$ 0.6 - 0.75
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
6202
Number of Row:
Single Row
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bearing for Worm Gear Reducer 6206 2RS CO HG01 (-20~120℃）US$ 1.35 - 1.47MOQ: 120 Pieces -
Reciprocating Compressors Bearing 6201 2RS C3 P5 HG101（-40~200℃）US$ 0.6 - 0.8MOQ: 500 Pieces
-
Bearing for Centrifugal Pump 6201 2RZ C0 P5 HG24（-35~180℃）NegotiableMOQ: 500 Pieces
-
Bearing for Automobile Tensioner Pulley 6007 2RS ACM C3 TN HG15 P5 -40~+180℃NegotiableMOQ: 500 Pieces
-
Bearing for Electric Vehicle 6008 2RS P5 C0 HG03(-40~180℃）NegotiableMOQ: 500 Pieces
Place of Origin
China
Model Number
6202
Number of Row
Single Row
Seals Type
2RS
Precision Rating
P5
Outside Diameter
35, 35
Bore Size
15, 15
| Technical Parameter | |||
| Axial clearance | C3 | Max Speed | 20,000 rpm |
| Bore diameter | 15mm | Operating temperature | -50℃-150℃ |
| Outer diameter | 35mm | Dynamic load rating | 7.640KN |
| Outer ring width | 11mm | Static load rating | 3.720KN |
| Inner ring width | 11mm | Inner ring material | GCr15 |
| Minimum assembly chamfer | 0.6mm | Outer ring material | GCr15 |
| Net weight | 0.046kg | Steel ball material | GCr15 |
| Packing | industrial package | Retainer material | SPCC |
| Packing number | 500pcs | Seal ring material | NBR |
