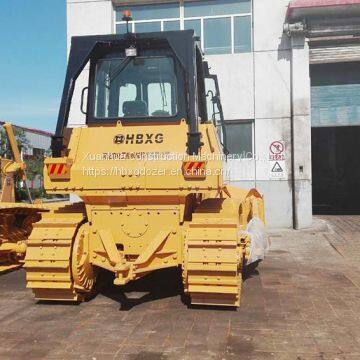

Hydraulically Driven Bulldozer Equipped With Cummins Engine
Xuanhua Construction Machinery Co., Ltd. (Hereinafter referred to as HBXG) was founded in 1950. HBXG is the pioneer of the track bulldozer manufacture in China. Now it has become a state-owned public company, a leading manufacturer of bulldozer.We have Bulldozer, Hydraulically Driven Bulldozer, Track Bulldozer, Motor Grader, Hydraulic Direct Drive Bulldozer, Wheel Loader, Wheel Excavator, Excavator, Track Excavator, Track Loader, Crawler Dozer.
Performance Parameters Bulldozer For Desert Working
Technical Features

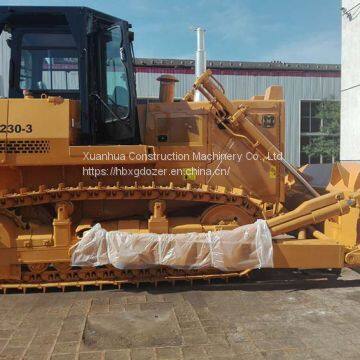

TY230-3 bulldozer is semi-rigid suspended, total hydraulic controlled and hydrnamic driving bulldozer, equipped with new model Cummins engine, three-element torque converter, single lever operation planetary gear transmission. Integrality injection molding plastics instrument panel, fully sealed shock absorption hexahedron cabin, the comfortabol system designed according to human and machine engineering; Undercarriage system with split-type fightening spring case structure makes the assembly and maintenance easy and convenient. The whole machine is with the advantage of powerful, high efficiency, excellent performance, and economical efficiency etc. Optianal equipments include U-blade, angle blade handling blade, single and three shanks ripper, ROPS, centralization lubrication, and track aytomatically tightening system. It is the best choice for desert, oil fields, mines, electricity and sanitation construction projects.Bulldozer Equipped With Cummins Engine
Hydraulically Driven Bulldozer Performance Parameters
Engine |
Cummins NT855-C280S10 |
Flywheel output |
185KW/230HP |
Operating weight |
24840kg |
Ground pressure |
76Kpa |
Track gauge |
2000mm |
Gradient |
30°/25° |
Min. ground clearance |
405mm |
Dozing capacity |
7.8 m³ |
Blade width |
3666mm |
Max. Digging depth |
540mm |
Overall dimensions |
5733×3666×3380mm |
